Quick Details
-
Brand Name:
-
OBRK
-
Model Number:
-
HT-225D
-
Product name:
-

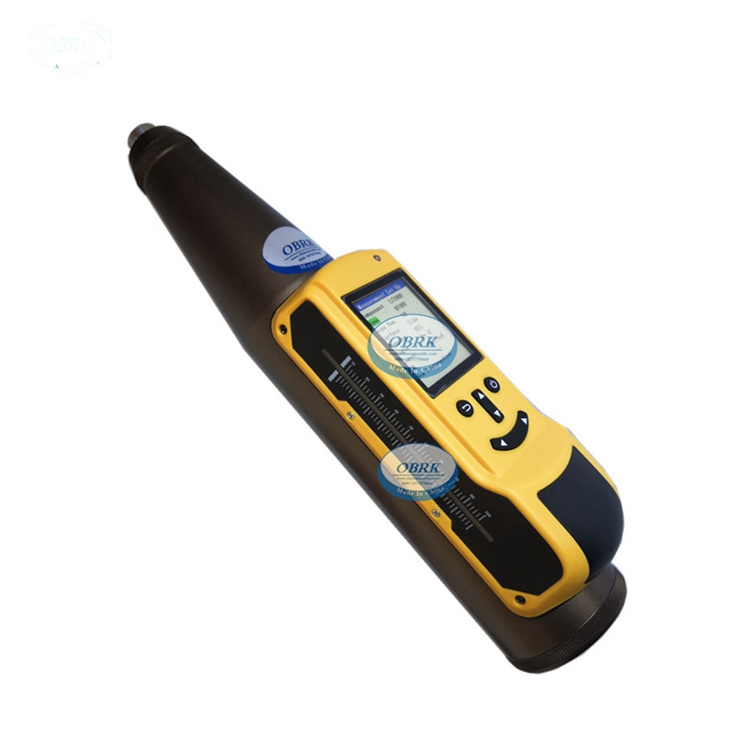

NDT resiliometer HT225 Schmidt concrete test rebound hammer
-
Usage:
-
Used to determine the compressive strength of concrete.
-
Impact Energy:
-
0.225 mkg(2.207 Joule)
-
measurement range:
-
10 to 70 N
-
Display screen:
-
2.0 Inch (220x176 pixel )
-
Power supply:
-
3.7V lithium battery,1050MA
-
Storage quantity:
-
640,000 datas
-
weight:
-
1KG
-
Bounce tension spring stiffness:
-
7.84N/CM
-
Impact hammer stroke:
-
75mm
Quick Details
-
Warranty:
-
1year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
OBRK
-
Model Number:
-
HT-225D
-
Product name:
-
NDT resiliometer HT225 Schmidt concrete test rebound hammer
-
Usage:
-
Used to determine the compressive strength of concrete.
-
Impact Energy:
-
0.225 mkg(2.207 Joule)
-
measurement range:
-
10 to 70 N
-
Display screen:
-
2.0 Inch (220x176 pixel )
-
Power supply:
-
3.7V lithium battery,1050MA
-
Storage quantity:
-
640,000 datas
-
weight:
-
1KG
-
Bounce tension spring stiffness:
-
7.84N/CM
-
Impact hammer stroke:
-
75mm
NDT resiliometer HT225 Schmidt concrete test rebound hammer
we accept small quantity order to supports our cooperation.
Excellent quality with competitive price:
All our products are made in China and with competitive price.
OEM / ODM service:
We can offer OEM & ODM service.
Products Description
NDT resiliometer HT225 Schmidt concrete test rebound hammer
NDT resiliometer HT225 Schmidt concrete test rebound hammer
STANDARD: ASTM C 805, BS 1881:202, NF P18-417, DIN 1048 AND UNI 9189
Automatically display and record the rebound value, and calculate the converted intensity value of each measurement area and the estimated strength of the component according to the relevant Concrete Test Hammer applicable to detect strength of high-rise building components, Bridges and concrete member(plate, beam, column, bridge). Usually suit to concrete from C50 to C100. According to the standard acceptance evaluation of concrete strength.
Automatically display and record the rebound value, and calculate the converted intensity value of each measurement area and the estimated strength of the component according to the relevant Concrete Test Hammer applicable to detect strength of high-rise building components, Bridges and concrete member(plate, beam, column, bridge). Usually suit to concrete from C50 to C100. According to the standard acceptance evaluation of concrete strength.
Features:
1. Center rod is made from imported material, high accuracy and durable resistance.
2. Pointer slider is outside structure, its friction can be balance well and easy to be adjusted so that we can make sure that the instrument is accurate.
Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.
Compared with other suppliers in the line of business, the product is more accuracy, good quality, and best price and longer use life.
Specification
|
Model
|
HT-225D
|
|
Impact Energy
|
0.225 mkg (2.207 Joule)
|
|
Measurement Range
|
10 to 70 N²
|
|
Indication consistency
|
≤±1 (The difference between the pointer reading and the screen reading)
|
|
Display screen
|
2.0 Inch (220x176 pixel )
|
|
Language
|
English
|
|
Storage quantity
|
640,000 datas
|
|
Shutdown operation
|
Automatic shutdown without operation
|
|
Power supply
|
3.7V lithium battery,1050MA
|
|
Data processing
|
Automatic data analysis,export test report
|
|
Collection type
|
automatically display and record the rebound value
|
|
Net weight
|
1KG
|
|
Consist of:
|
|
|
Parts Description
|
QTY
|
|
Concrete Schmidt Hammer
|
1PCS
|
|
Pumice stones
|
1PCS
|
|
Screwdriver
|
2PCS
|
|
Spring washer
|
1PCS
|
|
Packing box
|
1PCS
|
