Quick Details
-
Place of Origin:
-
SHG
-
Brand Name:
-
Self-owned
-
Voltage:
-
110/220/380V
-
Dimension(L*W*H):
-
Customized Size
-
Marketing Type:
-
Other
-
Weight (KG):
-
100 kg
Quick Details
-
Power:
-
0.4kW - 22kW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
500mm
-
Place of Origin:
-
SHG
-
Brand Name:
-
Self-owned
-
Voltage:
-
110/220/380V
-
Dimension(L*W*H):
-
Customized Size
-
Marketing Type:
-
Other
-
Weight (KG):
-
100 kg
Product Description
1
.Product description:

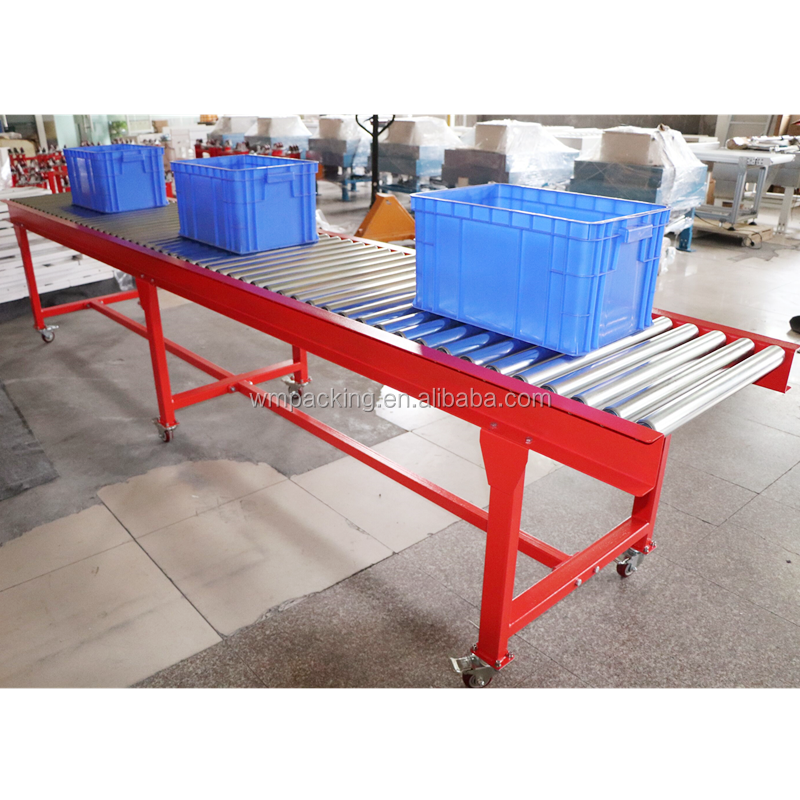

Roller conveyor is widely used to transport cartons, boxes, bags, pallets, etc. Bulk materials and small/ irregular items need to be transported on pallets or turnover boxes. It can deliver heavy items and bear a large impact load. The connection and combination are very easy between roller conveyors. Roller conveyor is suitable for combined with other conveyors or special equipment into a complex logistics conveying system.
2.Product design features
Electric roller conveyor is suitable for the items with flat bottom. Its structure is very simple, including roller, frame, support, driving part, etc. It has the characteristics of large conveying capacity, fast speed, smooth running, and can realize multi variety collinear split conveying.
Structural Type:
horizontal conveying, inclined conveying and turning conveying.
Specifications:
The inner width of the roller conveyor can be customized according to the customer's requirements. The standard
turning inner radius of the turning roller line is 300, 600, 900, 1200mm, etc. Other special specifications can also be customized. The roller diameters of straight section roller conveyor are 38, 50, 60, 76, 89mm, etc. The taper of the turning roller will be designed according to the weight, overall dimension and linear speed of the goods.
turning inner radius of the turning roller line is 300, 600, 900, 1200mm, etc. Other special specifications can also be customized. The roller diameters of straight section roller conveyor are 38, 50, 60, 76, 89mm, etc. The taper of the turning roller will be designed according to the weight, overall dimension and linear speed of the goods.
Frame material:
powder-coating carbon steel, stainless steel, aluminum profile.
Power mode:
reduction motor driving, electric roller driving, etc.
Transmission mode:
single chain wheel, double sprocket, plane friction transmission belt, synchronous belt, multi wedge belt, etc.
Speed control mode:
variable frequency speed control, drive card dialing speed regulation, etc.
Technical Parameter
:
|
Package weight
|
|
Max.50kg/㎡（can be customized）
|
|
|
|||
|
Speed
|
|
Normal：10-20 m/min
|
|
|
|||
|
Package size
|
|
Min：100*100mm Max：1000*1000mm
|
|
|
|||
|
Conveyor length
|
|
500-6000mm/section
|
|
|
|||
|
Conveyor width
|
|
200-1200mm/section
|
|
|
|||
|
Conveyor height
|
|
400-1200mm
|
|
|
|||
|
|
|
Note: It can be customized according to the actual demand of customers.
|
|
|
|||
Material(Configuration)
:
|
Components of Roller Conveyor
|
Depends on Parcel dimensions
|
|
|
|||
|
No.
|
Item
|
Brand
|
Country
|
|||
|
1
|
Electrical Roller
|
Damon
|
China
|
|||
|
2
|
Driver
|
Damon
|
China
|
|||
|
3
|
Roller
|
Damon
|
China
|
|||
|
4
|
V-Ribbed Belt
|
Conveyxonic
|
France
|
|||
|
5
|
Cable and Wire
|
Qifan
|
China
|
|||
|
Note: It can be customized according to the actual demand of customers.
|
70kg
|
|
|
|||
Successful Cases
Company Introduction
Our Factory
Process
Packing&Shipping
Our Partners
Certifications
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, meantime, Our company is an integrater of Material Handling Systems, conveying and sorting systems, automation systems.
A1: We are a factory, meantime, Our company is an integrater of Material Handling Systems, conveying and sorting systems, automation systems.
Q2:Do you manufacture hardwares and R&D softwares?
A2: We make most ligistics equipments for hardwares, and completely R&D softwares, we own lots of experienced and skillful mechanical engineers, electrical engineers, software engineers.
Q3:Do you make OEM products, or customized projects?
A3: All of our projects are customized, we make non-standard products according to customers' individual demand.
Q4:Where is your company and the port?
A4: Our company is located in Shanghai city where it's close to Shanghai Port.
Q5: what's your delivery time?
After confirming your deposit to us, the delivery time is 30 ~ 45 days.
Q6: What payment terms do you prefer?
A6: T/T , L/C , West Union.
Q7: How long is your warranty.
A7: roller conveyors, and belt conveyors, sorter machines are guaranteed for 1 years.
Q8: How to contact you quicky?
A8: Add me whatsapp and skype IDs, I will reply you instantly, or send me an inquiry online.
A2: We make most ligistics equipments for hardwares, and completely R&D softwares, we own lots of experienced and skillful mechanical engineers, electrical engineers, software engineers.
Q3:Do you make OEM products, or customized projects?
A3: All of our projects are customized, we make non-standard products according to customers' individual demand.
Q4:Where is your company and the port?
A4: Our company is located in Shanghai city where it's close to Shanghai Port.
Q5: what's your delivery time?
After confirming your deposit to us, the delivery time is 30 ~ 45 days.
Q6: What payment terms do you prefer?
A6: T/T , L/C , West Union.
Q7: How long is your warranty.
A7: roller conveyors, and belt conveyors, sorter machines are guaranteed for 1 years.
Q8: How to contact you quicky?
A8: Add me whatsapp and skype IDs, I will reply you instantly, or send me an inquiry online.
