Quick Details
-
Color:
-
Blue
-
fixture time:
-
10-15 mins
-
full cure time:
-
24 hours
-
Viscosity:
-
1000-2000cps
-
gap filler:
-
0.15mm
-
Application:
-
Nut Locking
-
Strength:
-
Medium
-
container:
-
10ml/50ml/250ml
-
Heat-Resistant:
-
-60~165℃
-
Shelf life:
-
12 Months
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
DEYI
-
Model Number:
-

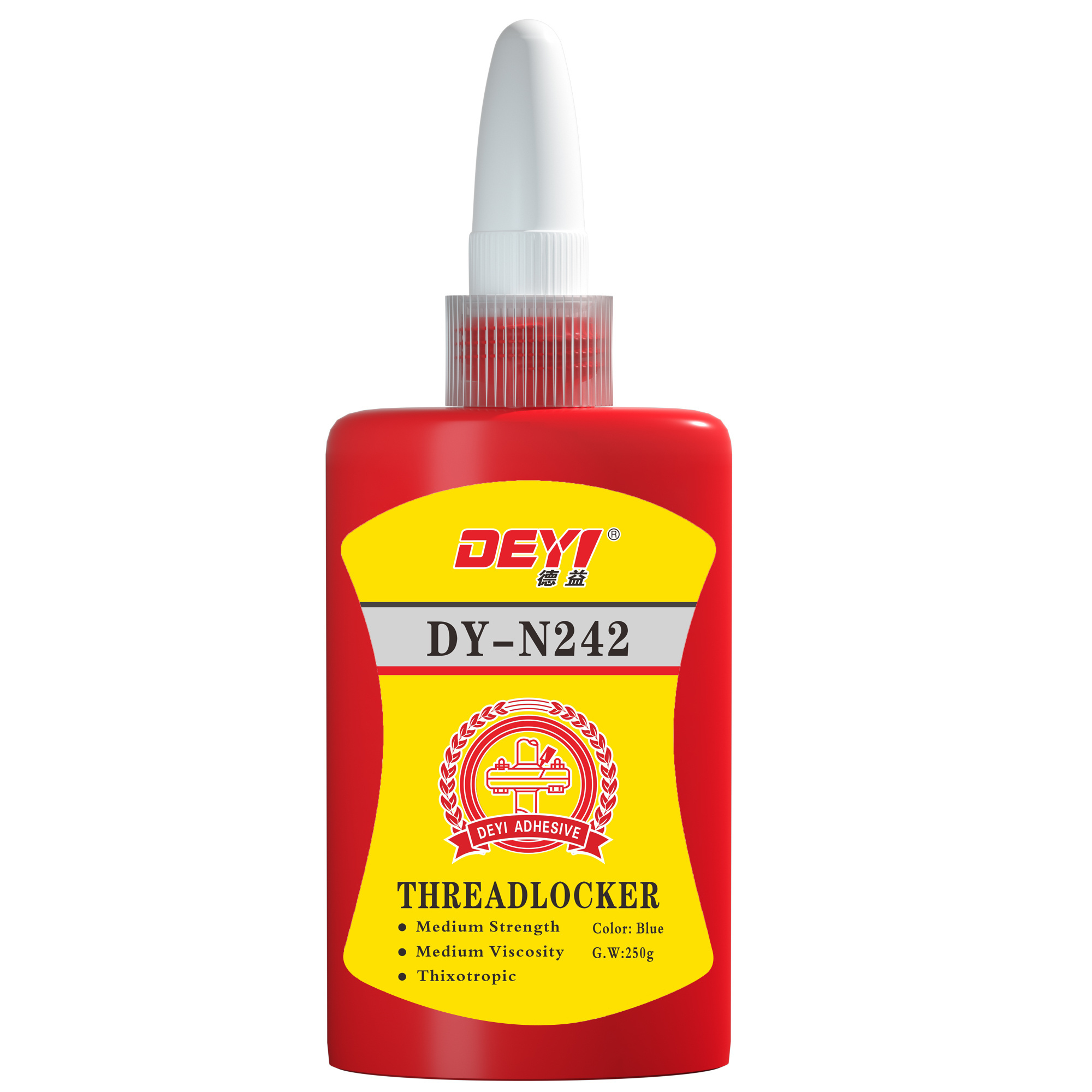

DY-N242
-
Color:
-
Blue
-
fixture time:
-
10-15 mins
-
full cure time:
-
24 hours
-
Viscosity:
-
1000-2000cps
-
gap filler:
-
0.15mm
-
Application:
-
Nut Locking
-
Strength:
-
Medium
-
container:
-
10ml/50ml/250ml
-
Heat-Resistant:
-
-60~165℃
-
Shelf life:
-
12 Months
SEALANT FOR SCREW THREADS
( DY-N242 / 243 / 262 / 271 / 272 / 277 / 290 )
1. Advantages Of Property
It is a kind of single component adhesive which is designed for the locking and sealing of threaded fastener. It is characterized with thixotropic, medium viscosity, medium strength. The Product cures when confined in the absence of air between close fitting metal surfaces and prevents loosening and leakage from stock and vibration. Applied for M6-M36, M20, below M30 locking and sealing, which require normal disassembly with standard hand tools. Typical usage is for screw nut locking.
2. Application
Used for sealing and locking of the thread.
3. Technical Parameters
4. Application Method
(1). Clean all the surfaces to be bonded, keep it clean, dry and without oil.
( 2 ) . Spray all threads with enough glue and allow to dry, better effect will be under the thickness of 0.05mm.
( 3 ) . The bigger gap will effect cure speed and strength, specially for using on bigger screw threads.
5. Precautions
(1). To keep work site well ventilated and avoid any contact with children.
(2). In case of any contact with skin and eyes during operation, immediately clean them with water or treat them according to doctor's advice.
(3). To store them in dry, cool and well ventilated place far away from high temperature.
(4). To carry out preliminary test in case of batch use to avoid bonding quality due to improper operation.
6. Packaging
(1). 10g/Tube; 20Tubes/Small Box; 200Tubes/Carton, Carton Size : 54x31.5x32 (cm)
(2). 50g/Tube; 10Tubes/Small Box; 120Tubes/Carton, Carton Size : 37.5x33x34.5 (cm)
(3). 250g/Tube; 7Tubes/Small Box; 35Tubes/Carton, Carton Size : 50x34x24.5 (cm)
( 4 ). 1kg/bottle; 12bottles/box; Box size : 58x38x25 (cm)
7. Ki nd Re minde r
The information contained herein is offered in good faith and is believed to be accurate. However, because conditions and methods of use of our products are beyond our control, customer need to take a test before batch use. DEYI specifically disclaims any other express or implied warranty of fitness for a particular purpose or merch-antability.
If customer encounter any problem during using, pls contact with us, we will try our best to solve the problems for you
1. Advantages Of Property
It is a kind of single component adhesive which is designed for the locking and sealing of threaded fastener. It is characterized with thixotropic, medium viscosity, medium strength. The Product cures when confined in the absence of air between close fitting metal surfaces and prevents loosening and leakage from stock and vibration. Applied for M6-M36, M20, below M30 locking and sealing, which require normal disassembly with standard hand tools. Typical usage is for screw nut locking.
2. Application
Used for sealing and locking of the thread.
3. Technical Parameters
| Item | Color |
Viscosity
(CPS)(25 C ) |
Filling Gap(mm) | Curing Time ( 25 C ) | Breaking Moment(N.m) | Average moment of disassembly (N.m) |
Heat Resistance
|
Shelf Life
( 25 C ) |
| DY-N242 | Blue | 1000-2000 | 0.15 | Initial curing 10-15minutes | 13 | 7 | -60 to +165 | 24 months |
| Full curing 24hours | ||||||||
| DY-N243 | Blue | 1000-2000 | 0.15 | Initial curing 10-20minutes | 14 | 8 | -60 to +165 | 24 months |
| Full curing 24hours | ||||||||
| DY-N262 | Red | 1000-2000 | 0.15 | Initial curing 10-15minutes | 25 | 20 | -60 to +165 | 24 months |
| Full curing 24hours | ||||||||
| DY-N271 | Red | 600-1200 | 0.13 | Initial curing 5-10minutes | 32 | 25 | -60 to +165 | 24 months |
| Full curing 24hours | ||||||||
| DY-N272 | Pink | 6000-9000 | 0.3 | Initial curing 10-15minutes | 25 | 20 | -60 to +230 | 24 months |
| Full curing 24hours | ||||||||
| DY-N277 | Red | 5000-9000 | 0.3 | Initial curing 10-15minutes | 32 | 28 | -60 to +165 | 24 months |
| Full curing 24hours | ||||||||
| DY-N290 | Green | 15-50 | 0.1 | Initial curing 10-15minutes | 32 | 30 | -60 to +165 | 24 months |
| Full curing 24hours |
4. Application Method
(1). Clean all the surfaces to be bonded, keep it clean, dry and without oil.
( 2 ) . Spray all threads with enough glue and allow to dry, better effect will be under the thickness of 0.05mm.
( 3 ) . The bigger gap will effect cure speed and strength, specially for using on bigger screw threads.
5. Precautions
(1). To keep work site well ventilated and avoid any contact with children.
(2). In case of any contact with skin and eyes during operation, immediately clean them with water or treat them according to doctor's advice.
(3). To store them in dry, cool and well ventilated place far away from high temperature.
(4). To carry out preliminary test in case of batch use to avoid bonding quality due to improper operation.
6. Packaging
(1). 10g/Tube; 20Tubes/Small Box; 200Tubes/Carton, Carton Size : 54x31.5x32 (cm)
(2). 50g/Tube; 10Tubes/Small Box; 120Tubes/Carton, Carton Size : 37.5x33x34.5 (cm)
(3). 250g/Tube; 7Tubes/Small Box; 35Tubes/Carton, Carton Size : 50x34x24.5 (cm)
( 4 ). 1kg/bottle; 12bottles/box; Box size : 58x38x25 (cm)
7. Ki nd Re minde r
The information contained herein is offered in good faith and is believed to be accurate. However, because conditions and methods of use of our products are beyond our control, customer need to take a test before batch use. DEYI specifically disclaims any other express or implied warranty of fitness for a particular purpose or merch-antability.
If customer encounter any problem during using, pls contact with us, we will try our best to solve the problems for you
