Quick Details
-
Lift Speed:
-
2.7-8.8M/Min, 2.7-8.8m/Min
-
Weight (KG):
-
87 kg
-
Product name:
-
Electric Chain Hoist
-
Control Voltage:
-
24V/ 36V/48V
-
Chain:
-
Japan FEC chain,G80(G100)
-
Capacity:
-
0.5-10t
-
MOQ::
-
20 Set
-
Control Method:
-
Pendent Control or Remote Control
-
Type:
-
Stationary or Moveable
-
Certification:
-
CE GS
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
TOYO
-
Lift Speed:
-
2.7-8.8M/Min, 2.7-8.8m/Min
-
Weight (KG):
-
87 kg
-
Product name:
-
Electric Chain Hoist
-
Control Voltage:
-
24V/ 36V/48V
-
Chain:
-
Japan FEC chain,G80(G100)
-
Capacity:
-
0.5-10t
-
MOQ::
-
20 Set
-
Control Method:
-
Pendent Control or Remote Control
-
Type:
-
Stationary or Moveable
-
Certification:
-
CE GS
Products Description
Block Machine Crane Winch Motor Dns Electric Chain Hoist Lift Mini Winch With Remote Control
Details Images
Electric Hoist Advantages
(1)Practical And Reliable, Multi-Protection

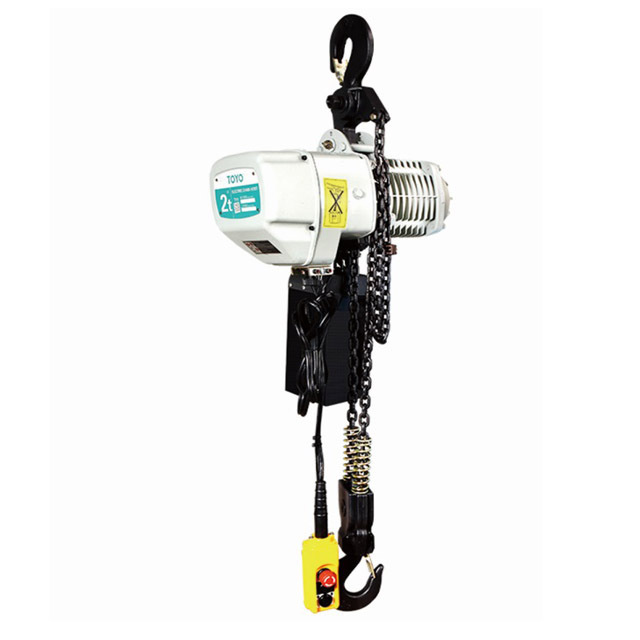

TOYO TY1
electric chain hoist
is a new type of small lifting equipment. It is an ideal equipment for lifting, transporting, loading and unloading goods and working. It is more flexible and convenient to use in a small space workplace, safe and convenient, light weight, small size, high working level, good safety performance, high reliability and low failure rate. With an electric sports car, you can walk up and down the I-beam, usually in four directions: up, down, left and right.
(2)Shell Attack
Cast aluminum housing, sturdy and impact resistant, special heat dissipation design, more heat dissipation and lighter weight. The protection level is IP55, which is more applicable.
(3)High-Strength Chain
The chain reaches the international G80 grade, and can also be customized with a higher G100 grade. It adopts carbon black technology and has strong anti-corrosion effect and strong wear resistance.
(4)Handle Button
The standard handle feels comfortable and the buttons are simple and easy to operate. High quality lift switch, button controller control voltage with emergency stop button.
Specification
|
Model
|
TY1-Single Speed
|
|
|
|
|
|
|
|
|
||||||||
|
|
0.5-01S
|
01-01S
|
1.5-01S
|
02-01S
|
02-02S
|
03-01S
|
03-02S
|
03-03S
|
05-02S
|
||||||||
|
Capacity(t)
|
0.5t
|
1t
|
1.5t
|
2t
|
|
3t
|
|
|
5t
|
||||||||
|
Lifting speed (m/min)
|
7.2
|
6.6
|
8.8
|
6.6
|
3.3
|
5.4
|
4.4
|
2.2
|
2.7
|
||||||||
|
Motor power (KW)
|
0.8
|
1.5
|
3.0
|
3.0
|
1.5
|
3.0
|
3.0
|
1.5
|
3.0
|
||||||||
|
Rotation speed (r/min)
|
1440 r/min
|
|
|
|
|
|
|
|
|
||||||||
|
Insulation grade
|
F grade
|
|
|
|
|
|
|
|
|
||||||||
|
Power supply
|
3 phase, 200V-690V, 50/60Hz
|
|
|
|
|
|
|
|
|
||||||||
|
Control voltage
|
24V / 36V / 48V
|
|
|
|
|
|
|
|
|
||||||||
|
No.of chain
|
1
|
1
|
1
|
1
|
2
|
1
|
2
|
3
|
2
|
||||||||
|
Spec.of load chain
|
Φ6.3
|
Φ7.1
|
Φ10.0
|
Φ10.0
|
Φ7.1
|
Φ11.2
|
10.0
|
Φ7.1
|
Φ11.2
|
||||||||
|
Net weight (kg)
|
47
|
61
|
108
|
115
|
73
|
122
|
131
|
85
|
151
|
||||||||
|
Model
|
TY1-Dual Speed
|
|
|
|
|
|
|
|
|
||||||||
|
|
0.5-01D
|
01-01D
|
1.5-01D
|
02-01D
|
02-02D
|
03-01D
|
03-02D
|
03-03D
|
05-02D
|
||||||||
|
Capacity(t)
|
0.5t
|
1t
|
1.5t
|
2t
|
|
3t
|
|
|
5t
|
||||||||
|
Lifting speed (m/min)
|
7.2/2.4
|
6.9/2.3
|
9.0/3.0
|
6.9/2.3
|
3.3/1.1
|
5.4/1.8
|
4.5/1.5
|
2.4/0.8
|
2.7/0.9
|
||||||||
|
Motor power (KW)
|
0.8/0.27
|
1.8/0.6
|
3.0/1.0
|
3.0/1.0
|
1.8/0.6
|
3.0/1.0
|
3.0/1.0
|
1.8/0.6
|
3.0/1.0
|
||||||||
|
Rotation speed (r/min)
|
2880 / 960
|
|
|
|
|
|
|
|
|
||||||||
|
Insulation grade
|
F grade
|
|
|
|
|
|
|
|
|
||||||||
|
Power supply
|
3 phase, 200V-690V, 50/60Hz
|
|
|
|
|
|
|
|
|
||||||||
|
Control voltage
|
24V / 36V / 48V
|
|
|
|
|
|
|
|
|
||||||||
|
No.of chain
|
1
|
1
|
1
|
1
|
2
|
1
|
2
|
3
|
2
|
||||||||
|
Spec.of load chain
|
Φ6.3
|
Φ7.1
|
Φ10.0
|
Φ10.0
|
Φ7.1
|
Φ11.2
|
Φ10.0
|
Φ7.1
|
Φ11.2
|
||||||||
|
Net weight (kg)
|
54
|
74
|
144
|
150
|
86
|
159
|
168
|
102
|
184
|
||||||||
Related Products
Company Introduction
Established in 1994 ,Hebei Kunda Hoisting Equipment Co,Ltd is a modern enterprise focusing on scientific research and development,production and manufacturing of lfting equipment. It mainly operates the TKK brand. The factory is located in Renqiu City. On 2019, we set the new office in Tianjin. It mainly operates the TOYO brand.
We supply
Electric Chain Hoist
, Single-phase
Mini Electric hoist
,
Electric Wire Rope Hoist
,
Manual Chain Hoist
,
Lever Hoist
, Manual Trolley,Flexible Light Crane System, Cantilever Crane,Single-and-Double Beam Bridge Crane, European end beam and reducer.
Packing&Shipping
FAQ
1. What about the price?
Our trading module prices are for reference only. If you are interested, please send us an inquiry as soon as possible and look forward to cooperating with you.
2. Is your products customized?
Yes, because the working condition are different, all our products can be customized depending on detail requirement!
3.How many operating methods for my selection?
The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we can also provide the remote control with push buttons. You can choose any of them, just tell us!
4.About sample?
The buyer should offer the cost and freight, if the quantity is big then can turn back all of it after placing the order.
5.How long does it take to receive my order?
About 35 Days from we get the down payment, 20 days for sample order.
6. What's your quality guarantee?
We have different kinds of products which can meet different quality standard. Our QC department will teset products before shipping. We have 100% quality guarantee to customers. We will be responsible for any quality problem.
7. What advantages we have?
Rich experience: We have more than 20 years experience in this industry. Each of our product must be strictly tested before delivery. Unqualified products are not allowed to delivery.
8. How about the after sale service?
We promise 1 year guaranty, life-time technical support! We have a strong team special for after sale service. We can arrange engineers to do service for you. And we insist 'Quality is Life'.
