Quick Details
-
Rated Voltage:
-
11-36KV
-
Tensile Strength:
-
11.8Mpa
-
Model:
-
DB-BH
-
Product name:
-

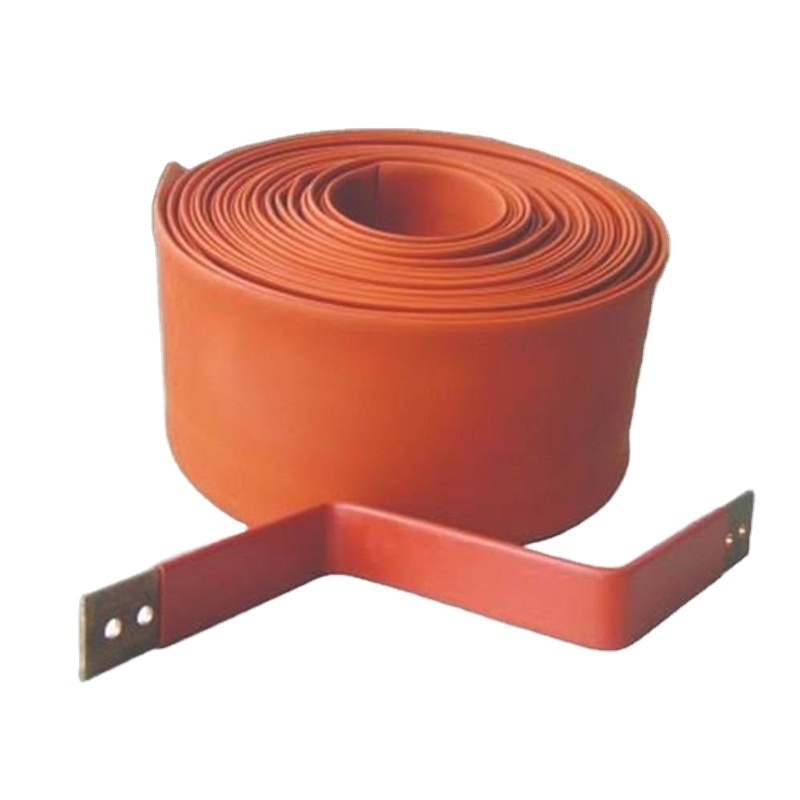

Medium wall heat shrink bus bar tubing
-
Certification:
-
ROHS
-
Standard color:
-
Red
-
Packaging:
-
Spools or sticks as standards.
-
Minimum shrink temperature::
-
110 °C
-
Elongation at break:
-
≥700%
-
Feature:
-
formulated radiation cross-linked halogen free compounds.
-
Sample:
-
Freely Supplied
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
DEEM
-
Model Number:
-
DB-BM/DB-BH
-
Rated Voltage:
-
11-36KV
-
Tensile Strength:
-
11.8Mpa
-
Model:
-
DB-BH
-
Product name:
-
Medium wall heat shrink bus bar tubing
-
Certification:
-
ROHS
-
Standard color:
-
Red
-
Packaging:
-
Spools or sticks as standards.
-
Minimum shrink temperature::
-
110 °C
-
Elongation at break:
-
≥700%
-
Feature:
-
formulated radiation cross-linked halogen free compounds.
-
Sample:
-
Freely Supplied
Technical Data
| Property | Test Method | Typical Data |
| Tensile strength | ASTM D 2671 | ≥11.8MPa |
| Tensile strength after aging(136°C/168 hrs.) | ASTM D 2671 | ≥10MPa |
| Elongation at break | ASTM D 2671 | ≥700% |
| Elongation at break after aging(136°C/168 hrs.) | ASTM D 2671 | ≥500% |
| Longitudinal shrinkage | ASTM D 2671 | 0 to -10% |
| Heat shock 200°C/4 hrs | ASTM D 2671 | No cracking, no dropping |
| Volume resistance | IEC 93 | ≥10 13 Ω.cm |
| Flammability (oxygen index) | IEC 2863 | ≥25 |
| Water absorption | ISO 62 (23°/14days) | <0.5% |
| Dielectric strength | IEC 243 | ≥ 20KV/mm |
Dimensions
| Size | As Supplied (mm) | After Recovery (mm) |
Rectangular
Bus Bars (mm) |
Round
Bus Bar (mm) |
Standard
length |
|||
| mm. (D) |
Inside Diameter
Min. (D) |
Inside
Diameter Max. (d) |
Min Thickness shrink
on the Bus bar (t) |
m/spool | ||||
| DB-BM Medium Wall Bus bar Insulation Tubing, for service to 24kV on unbolted bus bar | ||||||||
| Φ15/6 | 15 | 6 | 1.6 | 15 | 25 | 10 | 18 | 30 |
| Φ30/12 | 30 | 12 | 1.6 | 22 | 35 | 15 | 25 | 30 |
| Φ40/16 | 40 | 16 | 1.6 | 28 | 45 | 20 | 30 | 30 |
| Φ50/20 | 50 | 20 | 1.6 | 38 | 55 | 25 | 40 | 15 |
| Φ75/30 | 75 | 30 | 1.6 | 45 | 65 | 35 | 50 | 15 |
| Φ100/40 | 100 | 40 | 1.6 | 70 | 110 | 50 | 80 | 15 |
| Φ120/50 | 125 | 50 | 1.6 | 90 | 140 | 60 | 95 | 15 |
| Φ150/60 | 150 | 60 | 1.6 | 105 | 180 | 70 | 120 | 1-1.5m |
| Φ205/75 | 205 | 75 | 1.6 | 130 | 210 | 85 | 140 | 1-1.2m |
| Φ235/75 | 235 | 75 | 1.6 | 140 | 260 | 95 | 170 | 1-1.2m |
| DB-BH Heavy Wall Bus bar Insulation Tubing, for service to 36kV on unbolted bus bar | ||||||||
| Φ25/10 | 25 | 10 | 2.5 | 15 | 25 | 10 | 18 | 1-1.5m |
| Φ40/16 | 40 | 16 | 2.5 | 28 | 45 | 20 | 30 | 1-1.5m |
| Φ75/25 | 75 | 25 | 2.5 | 45 | 65 | 35 | 50 | 1-1.5m |
| Φ120/40 | 120 | 40 | 2.5 | 90 | 140 | 60 | 95 | 1-1.5m |
| Φ150/60 | 150 | 60 | 2.5 | 105 | 180 | 70 | 120 | 1-1.5m |
| Φ180/75 | 180 | 75 | 2.5 | 130 | 210 | 85 | 140 | 1-1.2m |
