Quick Details
-
Model Number:
-
EMI shielding sheet
-
Product Name:
-
conductive rubber sheet
-
Material:
-
conductive powder fill in silicone
-
Thickness:
-
0.5-2.0mm
-
Hardness:
-
60-70 Shore
-
Volume resistivity:
-
0.004-0.1Ω/cm
-
Surface:
-
Smooth
-

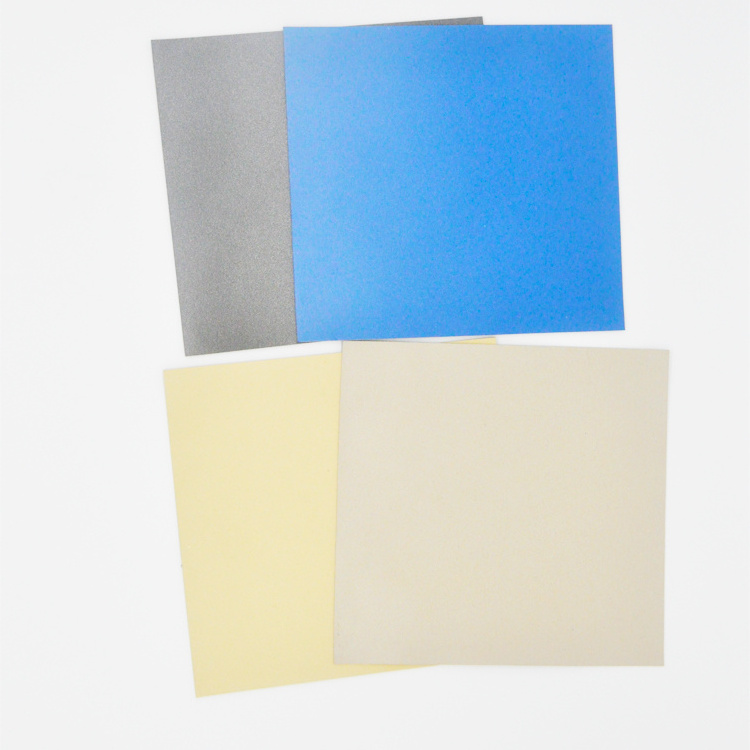

Color:
-
biege,gray,blak,brown,blue
-
MOQ:
-
1pcs
-
Package:
-
Regular
-
Application:
-
emi shielding
Quick Details
-
Processing Service:
-
Moulding, Cutting, customized
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRL
-
Model Number:
-
EMI shielding sheet
-
Product Name:
-
conductive rubber sheet
-
Material:
-
conductive powder fill in silicone
-
Thickness:
-
0.5-2.0mm
-
Hardness:
-
60-70 Shore
-
Volume resistivity:
-
0.004-0.1Ω/cm
-
Surface:
-
Smooth
-
Color:
-
biege,gray,blak,brown,blue
-
MOQ:
-
1pcs
-
Package:
-
Regular
-
Application:
-
emi shielding
specialist silicone sheet products including electrically conductive silicone sheeting,conductive rubber sheet .
Our specially manufactured ultra-high conductive silicone sheets can solve the electromagnetic compatibility sealing problem between the connector liner and the shell, ensure that the two have good electrical links, and effectively suppress the gap leakage.
The materials details
Conductive elastomer rubber ,widely used in high-tech electronic equipment especally on aerospace , vessels etc . , can not only provide basic rubber seal ,but also the EMI / EMC shielding and environmental seals at same time.
| Physical properties | ||||||
| Items | Standard | BRL-C-70 | BRL-NC-65 | BRL-SA-65 | BRL-SC-65 | BRL-SG-65 |
| Elastomer type | / | Silicone | Silicone | Silicone | Silicone | Silicone |
| Conductive filler | / | C | Ni/C | Ag/Al | Ag/Cu | Ag/Glass |
| Density(g/cm3) | ASTM792 | 1.2±0.2 | 1.9±0.2 | 1.9±0.2 | 3.5±0.3 | 1.8±0.2 |
| Hardness (ShoreA) | ASTM2240 | 70±5 | 65±5 | 65±5 | 65±5 | 65±5 |
| Tensile strength (Mpa) | ASTM412 | >4 | >1.6 | >1.6 | >1.6 | >1.6 |
| Elongation at break(%) | ASTM412 | >300 | >300 | >300 | >120 | >200 |
| Compression (%) | ASTM395 | <30 | <30 | <30 | <30 | <30 |
| Operating temperature(℃) | Mil-83528 | -55-180 | -55-160 | -55-160 | -55-120 | -55-160 |
| Electrical properties | ||||||
| Volume resistivity (Ω-cm) | Mil-83528 | <50 | <0.008 | <0.008 | <0.004 | <0.008 |
| Volume resistivity after aging test (Ω-cm) | Mil-83528 | <60 | <0.01 | <0.01 | <0.01 | <0.01 |
| Shielding effectiveness(db) | Mil-83528 | >50 | >90 | >90 | >110 | >90 |
Dimensional Specification Table of Molded Sheets
|
Long(mm) |
Wide(mm) | High(mm) | Remarks |
|
200 |
200 | 0.51,0.81,1.0,1.2,1.57 | Back glue is optional |
| 254 | 254 | 0.51,0.81,1.0,1.2,1.57 | Back glue is optional |
| 254 | 381 | 0.51,0.81,1.0,1.2,1.57 | Back glue is optional |
| 254 | 508 | 0.51,0.81,1.0,1.2,1.57 | Back glue is optional |
| 305 | 305 | 0.51,0.81,1.0,1.2,1.57 | Back glue is optional |
| 305 | 457 | 0.51,0.81,1.0,1.2,1.57 | Back glue is optional |
In addition to moulded sheets, there are some materials that we supply in large quantities of coiled materials.
Application of products
Ultra high conductivity silicone products are widely used in electronic equipment, such as aviation, aerospace, warships and so on. It can achieve both environmental and electromagnetic seals. Particularly applicable to:
1. Medium and small electronic computer case and microwave waveguide system
2. Aviation, spaceflight, ships and other shelter and military electronic equipment;
3. Electronic products (such as computer chassis, mobile phones), telecommunications,
high-frequency control equipment;
4. Electric power, railways and other harsh environment of electronic equipment.
Company imformation&Certification
Established in year 2006, with its rich R&D resources and manufacturing experience . Brilliance rubber has been
a basic manufacuture and supplier producing conductive elastomer rubber ,FKM ,HNBR and other rubber
compound in sheets gaskets O rings strips tubes etc and TPV/TPE , halogen-free cable material etc ,
which providing creative solution to improve the reliability of electronics equipments,
EMI shielding and environmental seals .
Brilliance rubber, covering an area of 40 acres , whose headquarters located in Zhongguancun Science
and Technology Park is national new high-tech enterprise .
have the annual sales of nearly 100 million , With the professional and experienced R&D teams ,
Brilliance rubber now has about 15 reseach staff .
including 4 of high professional title , 5 of master's degree personnel .
elastomer research center of Beijing uninversity of chemical technology take an active part in R&D
and enhance the cooperation with Brilliance rubber for the project reseach and development .
This reseach centre is the important part of the Beijing key laboratory of process and equipment design for
high polymer material and Ministry of Education's key laboratory of process and equipment design for nanometer materials .
with the Principal Investigators who 's been awarded as Changjiang Scholar" by Ministry of
Education and National Science Fund for Distinguished Young Scholars . brilliance rubber has the experienced and professional teams listed as 10 of professor , 6 of postdoctoral researcher , 30 of doctoral students ,
150 of postgraduate,which will guarantee the technical supports for the product design and development .
We are ready to provide customers the most efficient and effective reliability solutions
Package & shipping
Payment terms&Detail
1.T/T, western union ,paypa etc.
2.Samples lead time:7days after spec. confirmed.
3.Mass prodcution lead time:20-25work days after Order.
4.Pay 30% deposit,pay balance 70% before shipment.
Why choose us ?
1 . Our value massage is'' Quality is our culture''
2.Our core competencies is silicone products ,graphite products ,and thermal products
3.Competitive advantage products
5.Condidentiality agreement Bussiness Secrect Contract
6.Free sample offer & small order welcomed
7.Quality assurance contarct
8.we are the direct manufacture, which means the price advantage.
9. OEM/ODM Service are available.Can design and produce various Non-standard Rubber Parts
according to your requirement.
