Solar Storage Tank Suit For Solar Water Heating System
Solar Storage Tank Suit For Solar Water Heating System
Solar Storage Tank Suit For Solar Water Heating System
Solar Storage Tank Suit For Solar Water Heating System
Solar Storage Tank Suit For Solar Water Heating System
Solar Storage Tank Suit For Solar Water Heating System
Solar Storage Tank Suit For Solar Water Heating System
Solar Storage Tank Suit For Solar Water Heating System

Solar Storage Tank Suit For Solar Water Heating System

FOB Reference Price: Get Latest Price
≥2 Sets
US $1136
≥100 Sets
US $550
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Circulation Type:
Indirect / Closed Loop (Active)
Capacity:
200
Place of Origin:
Zhejiang, China
Brand Name:
Jinyi / OEM
Model Number:
JPT-200
Heat exchanger quantity:
1
Inner tank material:
SS304-2B / SS316 stainless steel
Heat exchanger material:
SS304-2B / SS316 stainless steel pipe
Electric heater power:
1.5 KW
Heat source:
Solar / Electrical / Gas
Installation orientation:
Vertical
Outer tank color:
Blue
Connect with existing system:
Yes
Heat loss:
36.62W
Auxiliary energy:
Electric heater(Optional)

Quick Details

Warranty:
3 years
Application:
Hotel, Commercial, Household
Type:
Unvented hot water cylinder
Circulation Type:
Indirect / Closed Loop (Active)
Capacity:
200
Place of Origin:
Zhejiang, China
Brand Name:
Jinyi / OEM
Model Number:
JPT-200
Heat exchanger quantity:
1
Inner tank material:
SS304-2B / SS316 stainless steel
Heat exchanger material:
SS304-2B / SS316 stainless steel pipe
Electric heater power:
1.5 KW
Heat source:
Solar / Electrical / Gas
Installation orientation:
Vertical
Outer tank color:
Blue
Connect with existing system:
Yes
Heat loss:
36.62W
Auxiliary energy:
Electric heater(Optional)

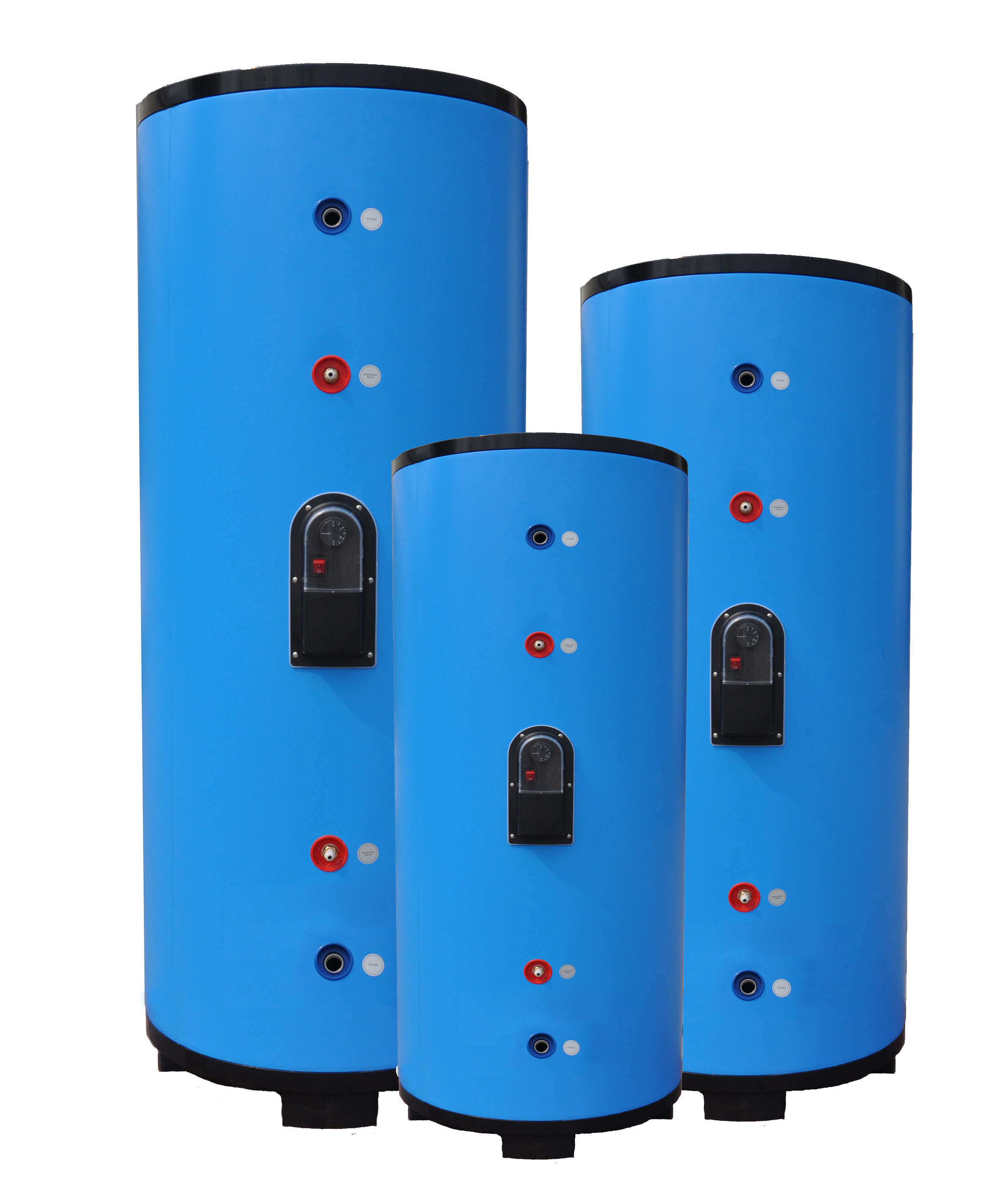

Solar Storage Tank Suit For Solar Water Heating System

Product Description

Jinyi JPT series high pressurized stainless steel unvented hot water cylinder are specially designed to be compatible with solar heating system. Tanks range from 50L to 800L and they could come with or without coil heat exchanger. All tanks are CE certified.

Jinyi Unvented Hot Water Cylinder Parameter Sheet
No Item JPT-200
1 Tank Capacity 200L
2 Inner tank material SS304-2B
3 Inner tank diameter Φ450mm
4 Outer tank diameter Φ540mm
5 Outer tank material Color steel
6 Outer tank color Blue
7 Insulation layer(density) PU foam, 43Kg/m 3
8 Insulation thickness 45mm
9 Heat-exchanger(Coil) Heat-exchanger quantity 1
10 Heat-exchanger material SS304-2B stainless pipe
11 Heat-exchange area-upside 0.75m 2
12 Heat-exchange area-undersid 0.75m 2
13 Heat-exchanger Max. Hydraulic Flow(m 3 /h) 3
14 Connector Cold inlet 3/4''
15 Hot outlet 3/4''
16 Circulation inlet 3/4''
17 Circulation outlet 3/4''
18 Air vent hole 3/4''
19 Magnesium anode 3/4''
20 Drain outlet 3/4''
21 Temperature sensor 1/2''
22 Electric heater 1''
23 Electric heater power 1500W
24 Temperature sensor quantity 2 pieces
25 Max test pressure 1.2MPa
26 Operation pressure 0.6MPa
27 Max temperature 90°C
28 Package Package material Carton box & foam
29 Package size 63×63×144cm
30 Container load QTY-20'/40' 39/84 unit
31 Certification CE, ISO
32 Warranty Depend on water quality
33 Commercial term Loading port Shanghai, China.
34 Sample order Yes
35 MOQ 1 unit
36 Delivery time-sample 7 days
37 Delivery time-full container 10-15days
38 OEM Yes

Tank installation display
