Quick Details
-
Weight:
-
100 kg
-

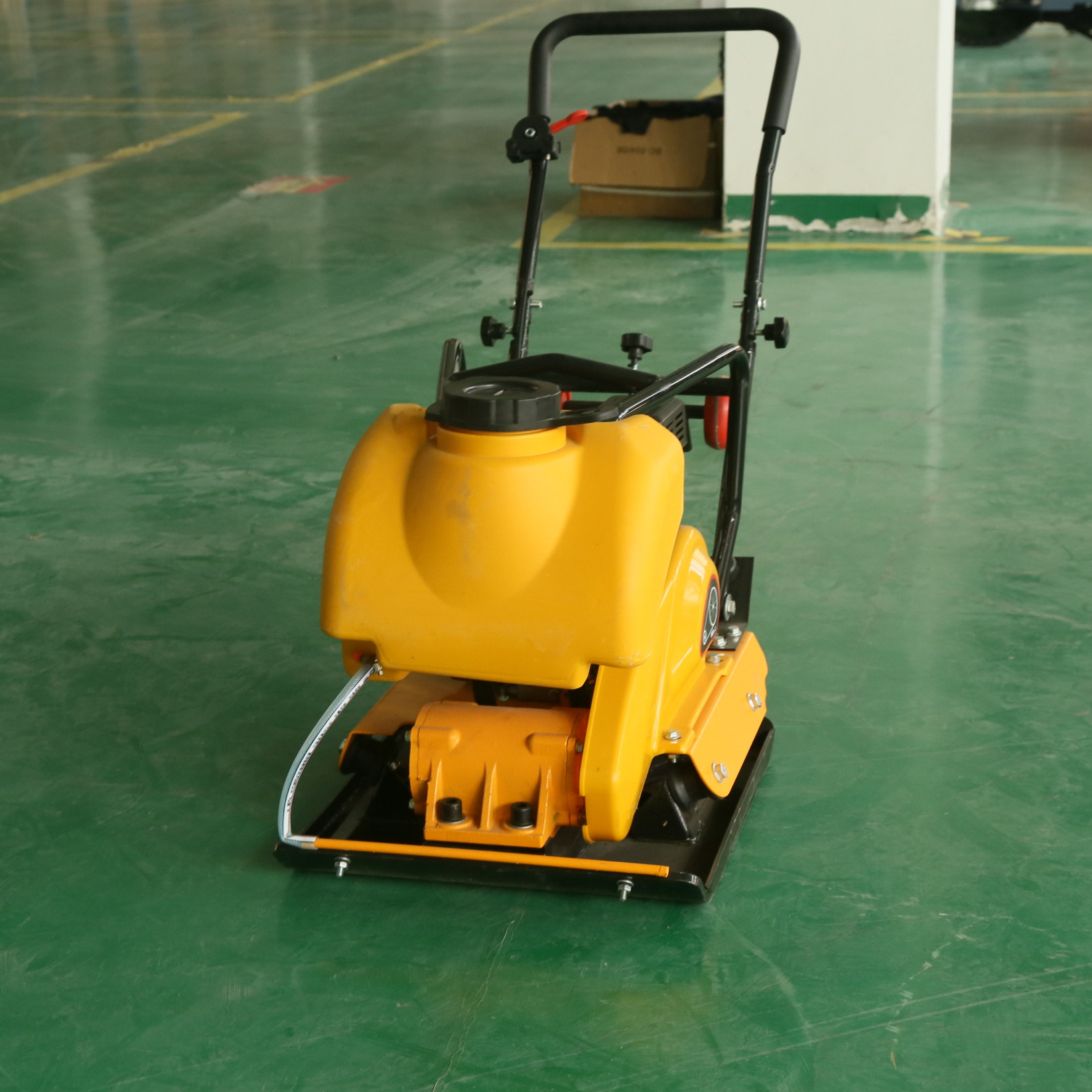

Product name:
-
Plate compactor
-
Model:
-
Electric plate rammer
-
Engine:
-
Electric/Honda/Loncin/Breton/Domestic
-
Exciting force:
-
20kn
-
Walking mode:
-
2800r/min or 3600r/min
-
Travel speed:
-
6-16m/min or 4-20m/min
-
Climbing ability:
-
420*600mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HS
-
Power:
-
3KW, 3KW/6.5HP
-
Weight:
-
100 kg
-
Product name:
-
Plate compactor
-
Model:
-
Electric plate rammer
-
Engine:
-
Electric/Honda/Loncin/Breton/Domestic
-
Exciting force:
-
20kn
-
Walking mode:
-
2800r/min or 3600r/min
-
Travel speed:
-
6-16m/min or 4-20m/min
-
Climbing ability:
-
420*600mm
Product Paramenters
|
Product name
|
Gasoline impact rammer
|
Diesel impact rammer
|
Single phase electric impact rammer
|
Three-phase electric impact rammer
|
|
Power
|
About 7.5 hp
|
About 8.5 hp
|
3KW/220V
|
3KW/380V
|
|
Impact
|
62n.m-95n.m
|
100n.m-130n.m
|
55n.m/60n.m
|
55n.m-95n.m
|
|
Impact times
|
600-800 times/min
|
600-900 times/min
|
600-700 times/min
|
600-800 times/min
|
|
Takeoff height
|
45-80mm
|
45-85mm
|
45-65mm
|
45-80mm
|
|
Weight
|
85kg/88kg/90kg
|
90kg/95kg/97kg
|
75kg/78kg
|
75kg/78kg/80kg/85kg
|
|
Forward speed
|
10-13m/min
|
12-16m/min
|
10-13m/min
|
10-13m/min
|
|
Tamper body material
|
Cast steel
Aluminum alloy |
Cast steel
Aluminum alloy |
Cast steel
|
Cast steel
Aluminum alloy |
|
Product name
|
Electric plate rammer
|
Gasoline plate rammer
|
|
Engine
|
Electric
|
Honda/Loncin/Breton/Domestic
|
|
Power
|
3KW
|
6.5HP
|
|
Exciting force
|
20kn
|
20kn
|
|
Total Weight
|
100kg
|
95kg
|
|
Walking mode
|
2800r/min
|
3600r/min
|
|
Travel speed
|
6-16m/min
|
4-20m/min
|
|
Climbing ability
|
420*600mm
|
450*500mm
|
|
Product name
|
Frog rammer
|
|
|
||
|
|
40 heavy
|
60 heavy
|
80 heavy
|
||
|
Forward speed
|
8-12M-MIN
|
6-8M-MIN
|
8-12M-MIN
|
||
|
Power
|
2.2KW
|
3KW
|
3KW
|
||
|
Tamper energy
|
40KG/M
|
70KG/M
|
80KG/M
|
||
|
Number of rammers
|
140-150 times/min
|
120-140 times/min
|
120-140 times/min
|
||
|
Strike speed
|
813 m/min
|
813 m/min
|
813 m/min
|
||
|
Tamper plate over
|
120*500MM
|
120*500MM
|
120*500MM
|
||
|
Tamper Ruler
|
1050*500*640MM
|
1050*500*640MM
|
1050*500*640MM
|
||
|
Total Weight
|
90KG
|
130KG
|
140KG
|
||
|
Product name
|
Color brick leveling machine
|
|
Working weight
|
152kg
|
|
Vibration wheel width
|
530mm
|
|
Vibration parameters
|
3.6kw 95Hz
|
|
Compacted area
|
600-700 m²/hour
|
|
Machine size
|
650*610*1098mm(L*W*H)
|
|
Centrifugal force
|
150 (10.3)
|
|
Engine selection
|
Gasoline engine
|
Product Advantages
Application
Plate compactors are mainly used for asphalt, soil, sand, gravel and mixed soil in construction, civil or road engineering, and horticulture. They are the most compacted sand, gravel and mixed soil in narrow ditches and along foundations, walls and abutments Best choice.
