Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZERO
-
Dimension(L*W*H):
-
1475*840*1130 mm
-
Core Components:
-
compressor
-
Weight (KG):
-
228 KG
-
Product name:
-

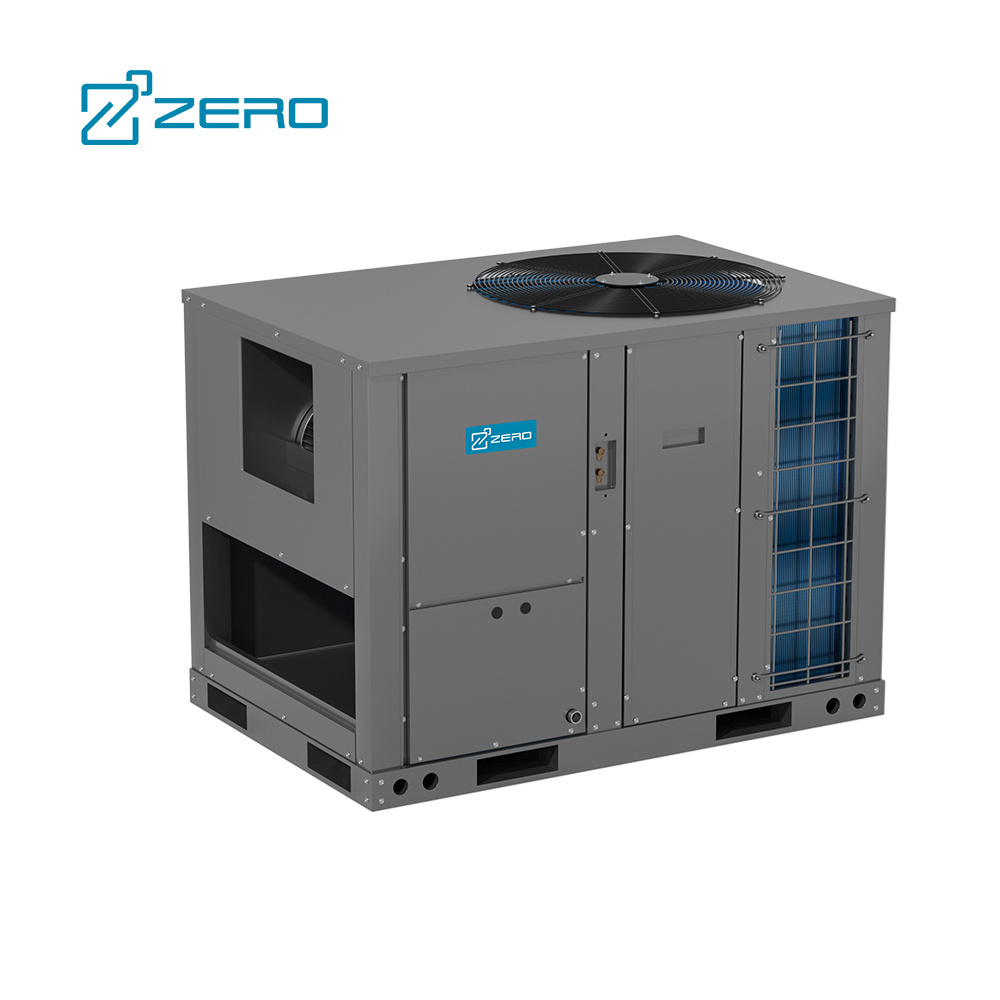

ROOFTOP AIR CONDITIONER UNIT
-
Cooling capacity:
-
75~532 KW
-
Sound pressure level:
-
71.5dB(A) - 81.2dB(A)
-
Fan type:
-
Centrifugal / Direct / Belt
-
Refrigerant:
-
R410A
-
Power supply:
-
380~415V,3PH,50Hz
-
Brand:
-
ZERO
-
Compressor:
-
Scroll & Rotary
-
Feature:
-
High efficiency compressor
Quick Details
-
Type:
-
Rooftop Packaged Unit
-
Mounting:
-
Rooftop
-
Airflow:
-
2800 - 16600 CFM
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZERO
-
Dimension(L*W*H):
-
1475*840*1130 mm
-
Core Components:
-
compressor
-
Weight (KG):
-
228 KG
-
Product name:
-
ROOFTOP AIR CONDITIONER UNIT
-
Cooling capacity:
-
75~532 KW
-
Sound pressure level:
-
71.5dB(A) - 81.2dB(A)
-
Fan type:
-
Centrifugal / Direct / Belt
-
Refrigerant:
-
R410A
-
Power supply:
-
380~415V,3PH,50Hz
-
Brand:
-
ZERO
-
Compressor:
-
Scroll & Rotary
-
Feature:
-
High efficiency compressor
.
Wide Operation Range
|
ZPRV series HP operate from 16° C to 52° C in cooling
mode and from -10° C to 24° C in heating mode.
|
Standard Cooling only model operate from 16° C to 52° C,
low ambient kit can be added to make the unit operate
from -15° C to 52° C .
|
High Efficient Condenser Coil
|
Staggered row of inner groove tubes with 25 to 30% more
surface area guarantee better heat transfer. Mechanically
expanded into die-formed corrugated aluminum louver fins
with increase the heat exchange surface which is high heat
exchange efficiency. Leak and pressure tested to 650 psig.
|
Long Life & Washable Filter
|
Compact Structure & Easy Transitting
|
Unit with compact structure design for better loading
|
The base frame of the unit is designed with forklift slots
and rigging holes for easier transportation and installation.
|
Design flexibility
|
Vertical side-discharge structure design.
Flanges of air flow inlet and outlet as standard.
It is suitable for installation on rooftop and ground.
|
Easy installation
|
Convenient For Wires Connection
|
Removable access door on the electric box. It is easy to
move the cover of the electric box. Only connect the wires
of power supply, and no need to connect any signal wires
|
Easily Connect The Drainage Pipe
|
Reserved external drainage port, quickly and accurately
connect the rubber drainage pipe.
|
Easy Maintenance
|
|
The unit provides external pressure gauge
ports for convenient and fast checking
system pressure without removing the panel.
(Only for 7.5Ton-15Ton)
|
Easy Access Doors Design
|
Removable the access doors on the filter, fan motor,
and electricbox sections. Provide convenient access
to system components for mainenance and service.
|
High ESP Design
|
The external static pressure (ESP) range is from
80Pa~430Pa, which ensures the longer delivery
distance for the air and provide the powerful cooling.
|
Controllers |
Factory mounted thermostat as standard, can be unit
mounted or remoted controlled(within 30M as standard ,
consult ZERO Eng. Team if longer distance is required.
Other brand thermostat can be matched as optional solution.
Centralized control function can be achieved through the
centralized controller as optional.
|
380~415V,3PH,50Hz INVERTER COOLING ONLY- STANDARD R410a
Nominal Ton* | 6.2 ~ 45 TON |
Cooling Capacity | 75000 ~ 532000 Btu/h |
Power Suppy |
308~415V, 3PH, 50Hz |
Indoor fan air flow | 2800 ~ 16600 CFM |
Unit Net/Gross Weight | 228/233 Kg ~ 1355/1385 Kg |
FAQ:
Q1: Do you provide OEM/ODM customized manufacturing service?
A1: Yes, we warmly welcome your heat pump OEM/ODM opportunities. We can produce Europe standard heat pumps under your brand and according to your special needs.
Q2: Can you provide a sample?
A2: Yes,sample order is acceptable.
Q3: How is your price?
A3: We give customers the most favorable price.
Q4: How long is your Air Conditioner delivery time?
A4: Generally 15-25 working days, it is according to quantity.
