Quick Details
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
Sunic Mark
-
Place of Origin:
-
China
-
Brand Name:
-
Sunic
-
Weight (KG):
-
800 KG
-
Marking Area:
-
Other
-
Core Components:
-
Laser scource
-
Product name:
-

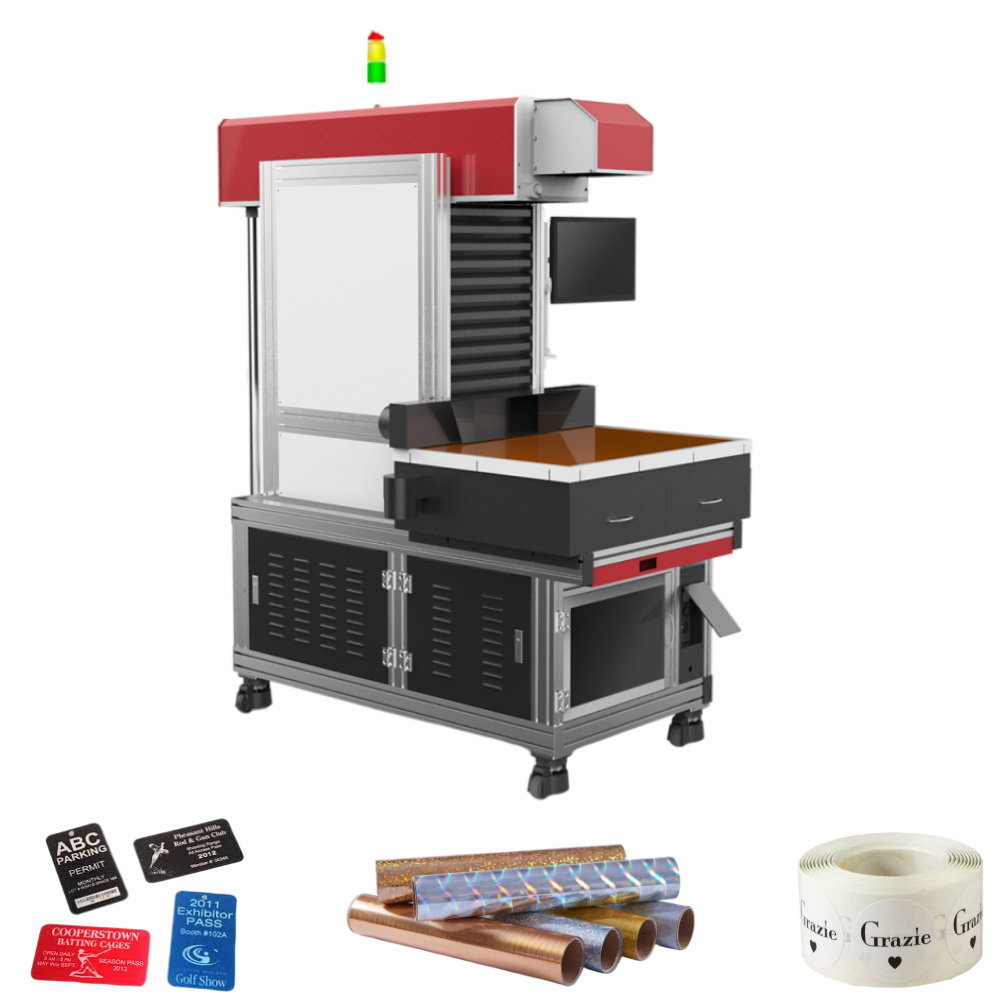

Dynamic CO2 laser marking machine
-
working area:
-
800*800mm(600*600mm for paper process)
-
Model name:
-
SCM2000
-
Max marking speed:
-
7000mm/s
-
scanning system:
-
High speed 3D dynamic foucusing galvo scanning system
-
Laser Power:
-
150/250/350W
-
Life Span:
-
Over 20000 hours
-
Cooling Way:
-
Circulation of water cooling
-
Laser source:
-
US Coherent RF metal laser source
-
Keywords:
-
High speed
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, JPG
-
Laser Type:
-
CO2
-
Cooling Mode:
-
WATER COOLING
-
Control Software:
-
Sunic Mark
-
Place of Origin:
-
China
-
Brand Name:
-
Sunic
-
Weight (KG):
-
800 KG
-
Marking Area:
-
Other
-
Core Components:
-
Laser scource
-
Product name:
-
Dynamic CO2 laser marking machine
-
working area:
-
800*800mm(600*600mm for paper process)
-
Model name:
-
SCM2000
-
Max marking speed:
-
7000mm/s
-
scanning system:
-
High speed 3D dynamic foucusing galvo scanning system
-
Laser Power:
-
150/250/350W
-
Life Span:
-
Over 20000 hours
-
Cooling Way:
-
Circulation of water cooling
-
Laser source:
-
US Coherent RF metal laser source
-
Keywords:
-
High speed
|
Model
|
|
SCM2000
|
|
|
|
Max working Area
|
|
600*600mm (Optional)
|
|
|
|
Laser power
|
|
150watts/250 watts/350watts
|
|
|
|
Power Consumption
|
|
≤ 5-7kWh
|
|
|
|
Life Span
|
|
Over 20000 hours
|
|
|
|
Marking Speed
|
|
≤7000mm/s
|
|
|
|
Worktable
|
|
MDF/Strip/Honeycomb worktable
|
|
|
|
Laser Source
|
|
US Coherent RF Metal Laser Source
|
|
|
|
Laser Wavelength
|
|
10.64μm
|
|
|
|
Laser Frequency
|
|
20kHz~200kHz
|
|
|
|
Focusing method
|
|
3D dynamic focusing system
|
|
|
|
System Support
|
|
Windows
|
|
|
|
Output Compatibility
|
|
Auto CAD, Photoshop, CorelDRAW etc
|
|
|
|
File Formats
|
|
PLT, DXP, BMP, JPG, AI etc
|
|
|
|
Software Character
|
|
Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing and Cutting
|
|
|
|
Power Supply
|
|
110V~380V/50Hz~60Hz
|
|
|
|
Cooling Way
|
|
Circulation of Water Cooling
|
|
|
The high productivity Dynamic CO2 Laser Marking Machine SCM2000 model is the ideal solution for marking, engraving and cutting paper, cardboard, genuine and synthetic leather, natural and synthetic textiles, denim, rubber, wood, acrylics, acetates, organic and sensitive materials to the co2 wavelength in general on large areas up to 600×600 mm.
Main Features
* SCM2000 with digital electronics designed and manufactured by SUNIC LASER allows outstanding laser beam quality (spot diameter≤0.15 mm) for the best cutting performances up to 400×400 mm working area. high performance dynamic bean-expander actuated by galvanometric motor, enables best in class high marking speed.
* With the Red Light Indication System and CCD Positioning System enables the correct centering of the working path to the real position of the piece in process (optional).
* With U.S.A. Coherent CO2 R.F. Metal Laser Source(maintenance-free), provide SCM2000 with maximum reliability and high quality performance.
* SCM2000 model is available with Full Enclosed option to meet class 1 laser product safety protection.
* With the Red Light Indication System and CCD Positioning System enables the correct centering of the working path to the real position of the piece in process (optional).
* With U.S.A. Coherent CO2 R.F. Metal Laser Source(maintenance-free), provide SCM2000 with maximum reliability and high quality performance.
* SCM2000 model is available with Full Enclosed option to meet class 1 laser product safety protection.
