Quick Details
-
Product Name:
-

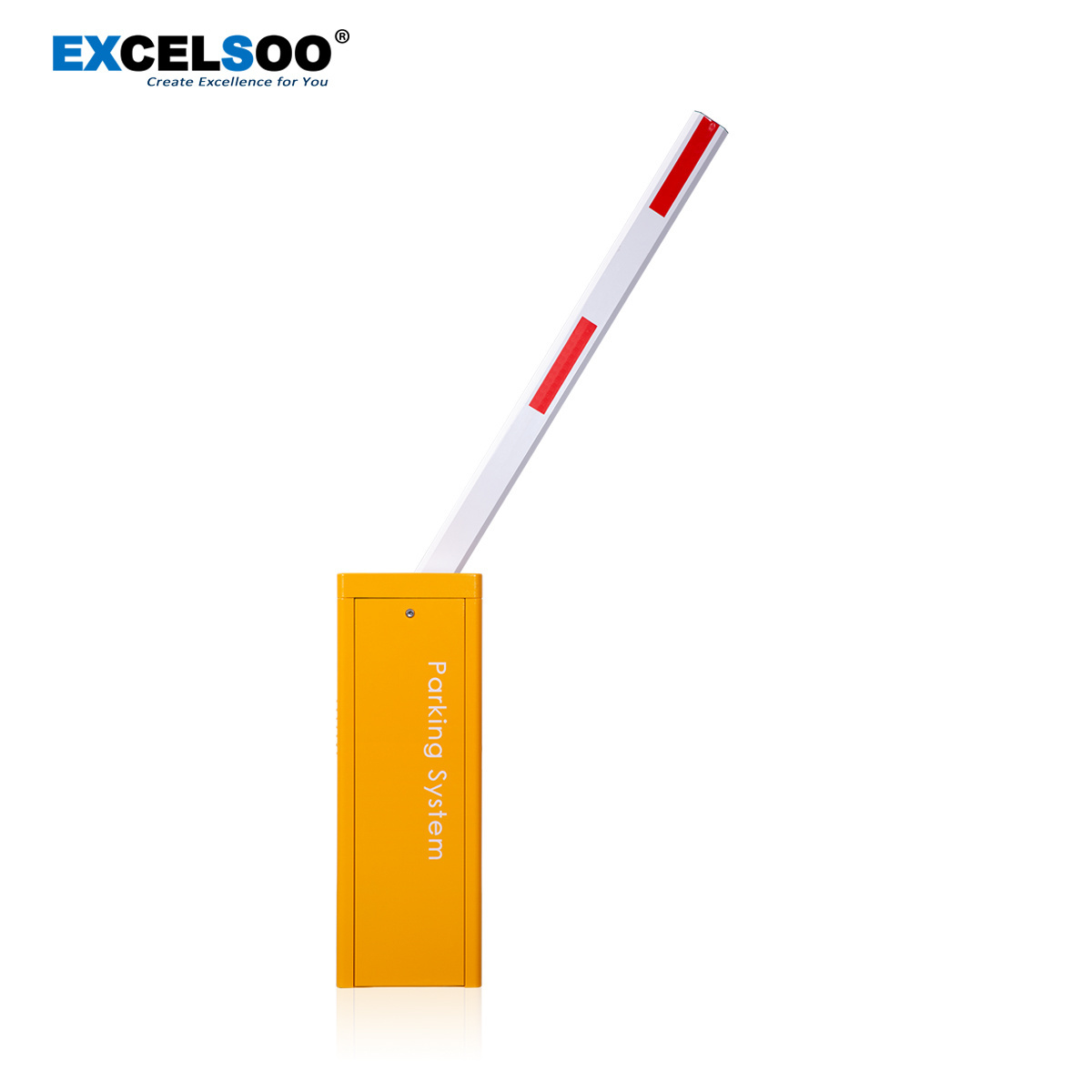

Automatic Aluminum Boom Parking Barrier Gate
-
Body Material:
-
Steel
-
Boom Material:
-
Aluminium
-
Color:
-
Yellow, Grey, Red, Blue and so on
-
Power Supply:
-
AC 110/220V ±10% 50/60Hz
-
Speed:
-
1.2s/3s/5s
-
Boom Length:
-
Max. 6m
-
Motor Power:
-
80W
-
OEM:
-
Supported
-
Certificate:
-
CE ROHS
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EXCELSOO
-
Model Number:
-
EX-BR04B
-
Product Name:
-
Automatic Aluminum Boom Parking Barrier Gate
-
Body Material:
-
Steel
-
Boom Material:
-
Aluminium
-
Color:
-
Yellow, Grey, Red, Blue and so on
-
Power Supply:
-
AC 110/220V ±10% 50/60Hz
-
Speed:
-
1.2s/3s/5s
-
Boom Length:
-
Max. 6m
-
Motor Power:
-
80W
-
OEM:
-
Supported
-
Certificate:
-
CE ROHS
Product Description
|
PRODUCT SPECIFICATION OF BARRIER GATE EX-BR04
|
1
|
|
|
Model NO.
|
EX-BR04
|
|
|
Power Supply
|
AC 110/220V ±10% 50/60Hz
|
|
|
Motor Rated Power
|
80W
|
|
|
|
1.2S, Max. 3M
3S, Max. 4.5M
5/6S, Max. 6M
|
|
|
Open/Close Time
|
1.2S/3S/6S (Optional)
|
|
|
Working Noise
|
≤60dB
|
|
|
Waterproof Rate
|
Waterproof Rate
|
|
|
Service Life
|
≥5 Million Times
|
|
|
Size
|
360*290*1040MM
|
|
|
Waterproof Rate
|
IP55
|
|
|
Certificate
|
CE, RoHS
|
|
|
OEM
|
Supported
|
|
Products Description
Features
* Free-maintenance torque motor ensures 100% duty cycle operation with 5 million MTBF
* System always automatically self-checks operation status and reports errors shown on the LED tube of the controller
* Anti-collision mechanism will protect the boom arm not to be damaged once boom arm was collided by vehicle.
* Anti-hit by pressure resistance bounce.
* Motor over-current protection
* Team release function
* Widely used for the facilities of parking, traffic or toll system.
* Arms can be chosen from 3 meters to 6 meters.
* This type of barrier could match with direct boom( pole), fold boom Or fence boom..
* Support photocell, air wave switch, loop detector, toll gate system input terminals and output terminals for lamp.
* Housing color: yellow,red ,blue,orange,white (optional)
* Boom arm direction can be chosen leftward to rightward.
Product packaging
Package
QTY<6PCS, Inner Packing:Plastic Bag + Paper Carton, Outer Packing: Plywood Case;
QTY≥6PCS, Inner Packing:Plastic Bag + Paper Carton, Outer Packing: 6pcs/Pallet.
Certifications
Manufacturing Technique
Why Choose Us
Professional security products for your business
We focus on you and your needs—and offer you fully Professional Parking Management System products and solution.
We help you simplify your parking management and work toward the goals that matter most to you. As your relationship grows with us, you gain access to exclusive rewards and benefits.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 3-5 days if QTY less than 10pcs; we need to negotiate if QTY is more than 10pcs.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: T/T.
Please feel free to contact us if any further information or clarification needed.
