Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
Gidrox
-
Model Number:
-
GRS32/70-130
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.16HP
-
Cable Length:
-
1.5m
-
Outlet Size:
-
2''
-
Power:
-
135W/93W/67W
-
motor:
-
Copper Wire
-
Impeller:
-
PPO Impeller
-
Bearing:
-
99% Alumina Ceramic Bearing
-
Shaft:
-
High Precision Ceramics Shaft
-
Stainless Steel Rotor Sleeve:
-
Adopting 304 Stainless Steel
-
Insulation Class:
-
F
-
Feature1:
-
with 3 Gear Power Adjustment Energy 30%
-
Feature2:
-
Three Speed Motor
Quick Details
-
Application:
-
Commercial Buildings, Family Homes, Washing and Cleaning, Clarified water, recional heating systerms, hot water systems, Underfloor heating systems and hot water circulat, Circulation of fluids in cooling, air conditioning systems, Boiler solar water supply
-
Pressure:
-
High Pressure
-
Voltage:
-
110V/220V
-
Warranty:
-
1 years
-
Brand Name:
-
Gidrox
-
Model Number:
-
GRS32/70-130
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
0.16HP
-
Cable Length:
-
1.5m
-
Outlet Size:
-
2''
-
Power:
-
135W/93W/67W
-
motor:
-
Copper Wire
-
Impeller:
-
PPO Impeller
-
Bearing:
-
99% Alumina Ceramic Bearing
-
Shaft:
-
High Precision Ceramics Shaft
-
Stainless Steel Rotor Sleeve:
-
Adopting 304 Stainless Steel
-
Insulation Class:
-
F
-
Feature1:
-
with 3 Gear Power Adjustment Energy 30%
-
Feature2:
-
Three Speed Motor
APPLICATION
Be suitable for central & regional heating systems and domestic hot water systems of urban constructions and suburban villa , as well as cold water circulation in cooling and air conditioning systems.No leakage ,low noise ,environmental protection, aesthetics, ease of installation and so on.
PUMP
High precision ceramics shaft
PPO impeller
Stainless steel rotor sleeve : Adopting 304 stainless stell
With 3 gear power adjustment , energy can be saved 30%
High-quality piano gloss lacquer technology
PPO impeller
Stainless steel rotor sleeve : Adopting 304 stainless stell
With 3 gear power adjustment , energy can be saved 30%
High-quality piano gloss lacquer technology
MOTOR
Insulation class : F
Ingress Protection : IP44
99% alumina ceramic bearing
Motor with copper winding
Three speed motor
Ingress Protection : IP44
99% alumina ceramic bearing
Motor with copper winding
Three speed motor
|
No
|
Item
|
Data
|
|
1
|
Title
|

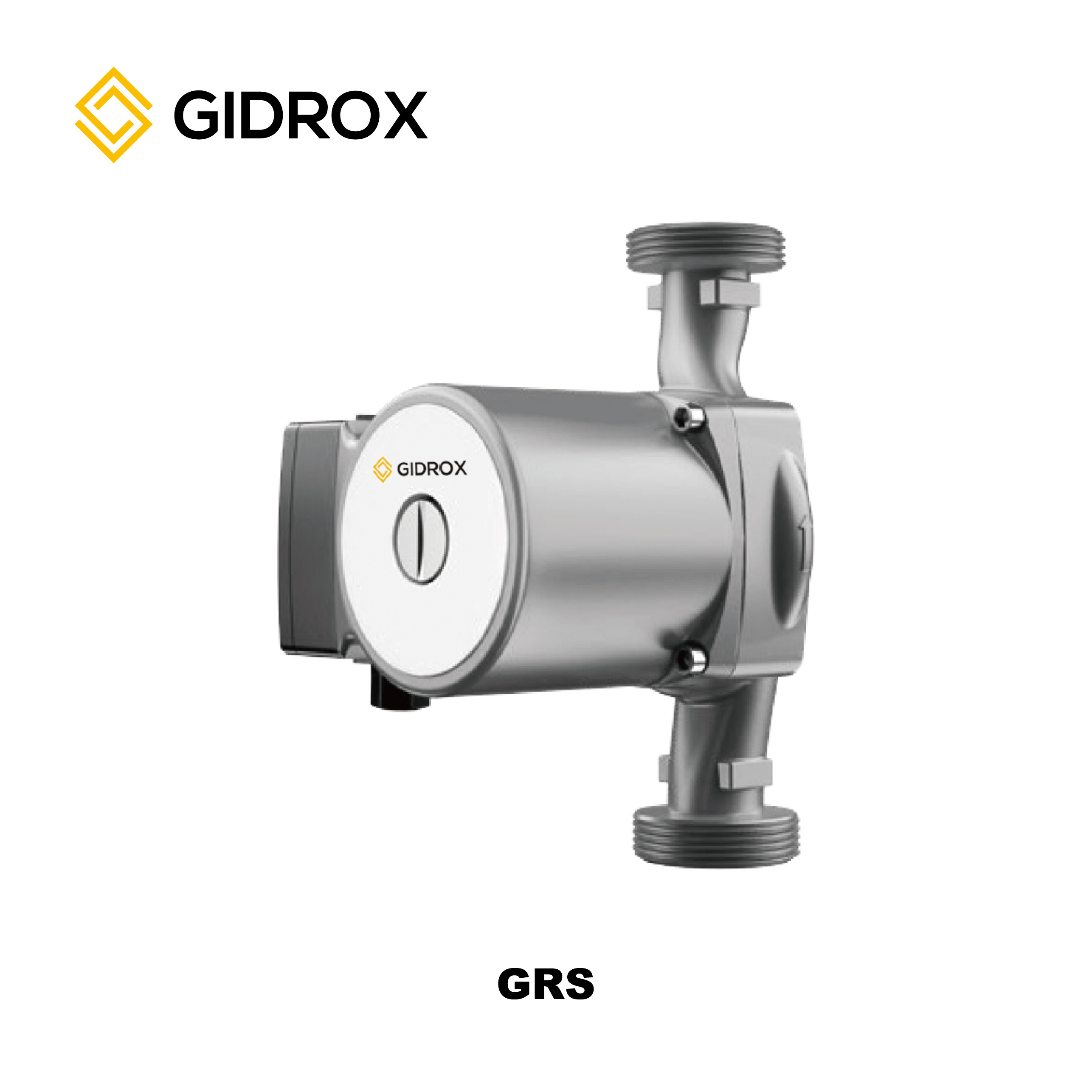

Hot water three speed Heating Circulation Pump Low Temperature Coolant Circulating Pump for central hot water system
|
|
2
|
Power
|
135W/93W/67W
|
|
3
|
Material
|
Cast Iron
|
|
4
|
Specification
|
124mm*148mm*180mm
|
|
5
|
Head Hmax
|
7/6.5/4.5
|
|
6
|
Flow Qmax
|
70/56/36 L/Min
|
|
7
|
Hz
|
50Hz/60Hz
|
|
8
|
Feature1
|
with 3 Gear Power Adjustment Energy 30%
|
|
9
|
Feature2
|
Three Speed Motor
|
1.What’s the minimum order quantity for this product?
Our minimum order quantity is one full 20ft container.For the first time cooperation,costumer can place a trial order to check the quality.Please consult customer service for more details about the trial.
2.Is it possible to product OEM products using the customer’s own brand?
OEM products are welcome.Meanwhile,as a mature company in the industry,we also have our own complete independent brand system.By selling the manufacturer’s brand,our customers will get more substantial profits,as well as various additional support,such as advertising and marketing assistance.
3.Can I customize the product?
Our professional engineers will analyze the customer’s requirements and develop the product that meets or even exceeds expectations.
4.How to get a quotation?
Please leave a message to the customer service about the purchase needs or any questions.It will be answered within one hour of working hours by our trade manager directly.
5.What’s the form of payment?
30% T/T deposit,70% against BL copy,or L/C at sight.
6.What are the available shipping methods?
Support sea,air and express delivery.
7.How long is the delivery time?
25-30 days after receiving the L/C or T/T deposit.
