Quick Details
-
Function:
-
NIGHT VISION, WDR, Remote Control, FULL COLOR, G-Sensor, Loop recording, Build-in WiFi, Motion Detection, Build-in GPS, Build-in GSM, Emergency Accident Lock
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MCY
-
Model Number:
-
MAR-HK04
-

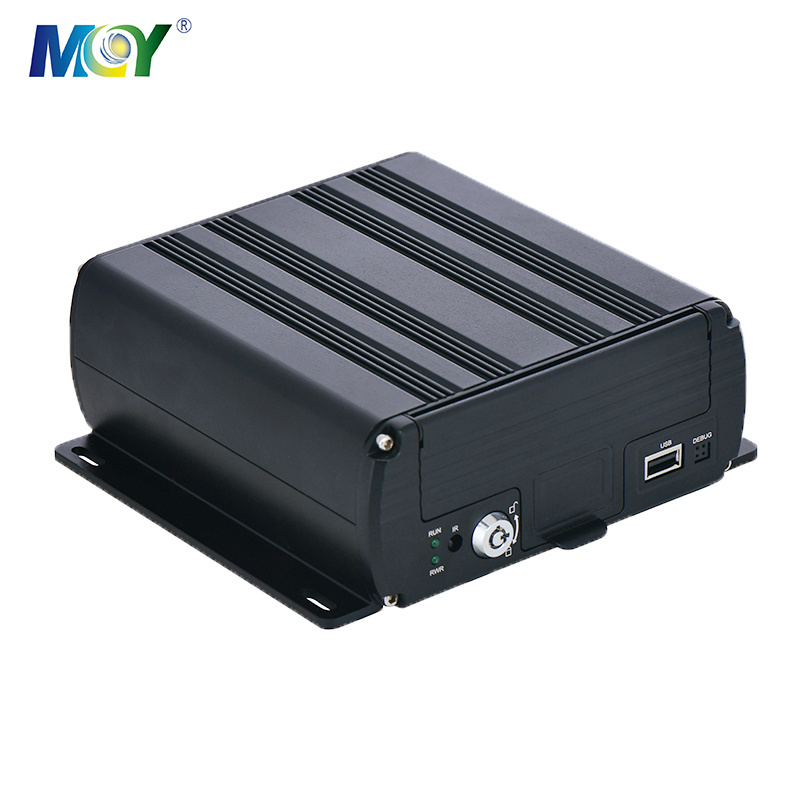

Product name:
-
4CH Mobile DVR
-
Video Inputs:
-
4CH 720/1080P for option
-
Storage:
-
HDD/SSD+ SD Card
-
Video format:
-
PAL/NTSC
-
Video Compression:
-
H.264/H.265
-
AV input:
-
4ch aviation interface
-
AV output:
-
1ch VGA video output, 1ch aviation AV output
-
GPS:
-
Support
-
G-sensor:
-
Support
-
4G/WIFI:
-
Support
Quick Details
-
Car Fitment:
-
Universal
-
Angle:
-
360°
-
Resolution:
-
720P
-
Function:
-
NIGHT VISION, WDR, Remote Control, FULL COLOR, G-Sensor, Loop recording, Build-in WiFi, Motion Detection, Build-in GPS, Build-in GSM, Emergency Accident Lock
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MCY
-
Model Number:
-
MAR-HK04
-
Product name:
-
4CH Mobile DVR
-
Video Inputs:
-
4CH 720/1080P for option
-
Storage:
-
HDD/SSD+ SD Card
-
Video format:
-
PAL/NTSC
-
Video Compression:
-
H.264/H.265
-
AV input:
-
4ch aviation interface
-
AV output:
-
1ch VGA video output, 1ch aviation AV output
-
GPS:
-
Support
-
G-sensor:
-
Support
-
4G/WIFI:
-
Support
Product Description
The product link provided is for the
4 CH AHD HDD MDVR 720P
(4G+WIFI+GPS)
only. Camera, monitor, and cables will be quoted separately. If you require a tailored solution for your vehicle, we kindly request you to send us an inquiry. Thank you!
Technical Specifications
● High resolution: 600tvl, 800tvl, 1000tvl/ AHD 720p, 1080p
● 7inch/9inch/10.1inch LCD TFT monitor with 4 channels simultaneously real time live recording
● Support wide operating voltage range: 9-36V DC
● Storage: 1*256GB SD Card, 1*2TB HDD
● Professional Fleet Management CMSV6 Software: Window, IOS, Android client
● IP69k waterproof design for working well in all adverse weather conditions
● Operating Temperature: -25℃~+65℃, for stable performance in low and high temperature
● 7inch/9inch/10.1inch LCD TFT monitor with 4 channels simultaneously real time live recording
● Support wide operating voltage range: 9-36V DC
● Storage: 1*256GB SD Card, 1*2TB HDD
● Professional Fleet Management CMSV6 Software: Window, IOS, Android client
● IP69k waterproof design for working well in all adverse weather conditions
● Operating Temperature: -25℃~+65℃, for stable performance in low and high temperature
|
Item
|
Device parameter
|
Performance
|
|
System
|
Operating system
|
Embedded Linux OS
|
|
|
Operating language
|
Chinese/English
|
|
|
Operating interface
|
GUI, support mouse
|
|
|
Password security
|
User password/Admin password
|
|
Audio & Video
|
Video standard
|
PAL/NTSC
|
|
|
Video compression
|
H.264
|
|
|
Image resolution
|
720P /960H/D1/CIF
|
|
|
Playback quality
|
720P /960H/D1/CIF
|
|
|
Compound mode
|
4ch 720P/4ch 960H/2ch 720P+2ch 960H
|
|
|
Decoding ability
|
1ch 720P real time
|
|
|
Recording quality
|
Class 1-6 optional
|
|
|
Image display
|
Single/QUAD display optional
|
|
|
Audio Compression
|
G.726
|
|
|
Audio recording
|
Audio & Video synchronized recording
|
|
Recording & Playback
|
Recording mode
|
Manual/Alarm
|
|
|
Video bit rate
|
Full frame 4096Mbps，6 classes image quality optional
|
|
|
Audio bit rate
|
8KB/s
|
|
|
Storage media
|
SD card + HDD/SSD storage
|
|
|
Video inquiry
|
Inquiry by channel/Recording type
|
|
|
Local playback
|
Playback by file
|
|
Firmware upgrading
|
Upgrading mode
|
Manual/Automatical/Remote/Emergency Recovery
|
|
|
Upgrading method
|
USB disk/Wireless network/SD card
|
|
Interface
|
AV input
|
4ch aviation interface
|
|
|
AV output
|
1ch VGA video output, 1ch aviation AV output
|
|
|
Alarm input
|
4 digital inputs (2 Positive trigger, 2 Positive/Negative trigger)
|
|
|
HDD/SSD
|
1 HDD/SSD (up to 2TB, support hot plug/unplug)
|
|
|
SD card
|
1 SDXC High speed card (up to 256GB)
|
|
|
USB interface
|
1 USB 2.0 (support U disk/mouse)
|
|
|
Ignition input
|
1 ACC signal
|
|
|
UART
|
1 LVTTL Level
|
|
|
LED Indication
|
PWR/RUN
|
|
|
Disk lock
|
1
|
|
|
Debug port
|
1
|
|
Function extention
|
GPS/BD
|
Support detecting antenna Plug in/Unplug/Short circuit
|
|
|
3G/4G
|
Supports CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE
|
|
|
WIFI
|
802.11b/g/n, 2.4GHz
|
|
Others
|
Power input
|
9~36V DC
|
|
|
Power output
|
5V 300mA
|
|
|
Power consumption
|
Standby 3mA
Maximum consumption 18W @12V 1.5A @24V 0.75A |
|
|
Working temperature
|
-20 --- 70℃
|
|
|
Storage
|
720P 1G/h/channel
960H 750M/h/channel |
|
|
Dimension
|
162mm*153mm*52mm
|
4G Real Time Remote View
While vehicles are in motion, our mobile DVR enables real-time remote monitoring with its 4G LTE capability. We offer a
FREE
mobile app and PC client for convenient real-time remote viewing and video playback.
GPS Positioning
Our system allows for remote recording and viewing of vehicle speed and location and provides a detailed record of the route the vehicle has driven.
Fuel Level Sensor (optional)
This system utilizes an ultrasonic probe to accurately detect the fuel level height. The built-in program in the controller's box smartly processes the height signals of fuel quantity. Subsequently, the Mobile DVR sends the fuel height data to the platform for analysis and generates a comprehensive fuel quantity report.
4CH AHD/ 4CH AHD+1CH IPC/8CH AHD/8CH AHD+1CH IPC DVR Vehcle Solution
Our MDVR offers flexible video input configurations (4CH AHD/ 4CH AHD+1CH IPC/8CH AHD/8CH AHD+1CH IPC), providing versatile surveillance solutions. It is widely utilized for vehicle monitoring in various settings such as buses, taxis, school buses, trucks, coaches, tanker trucks, vans, and more. If you have any questions or require further assistance, please don't hesitate to send us an inquiry!
