Quick Details
-
Color:
-
Blue
-
Name:
-
car alignment machine
-
Product Name:
-
3D Wheel Alignment Machine
-
Certification:
-
CE Certificate
-
Language:
-
Global Multi-language
-
Keywords:
-
Wheel Alignment Machine Automotive Workshop
-
Application:
-
Alignment Machines Used
-
Camera:
-
5-mega-pixel
-
Trade Terms:
-
EXW
Quick Details
-
Place of Origin:
-
Shandong, China
-
Warranty:
-
1 Years
-
Product name:
-

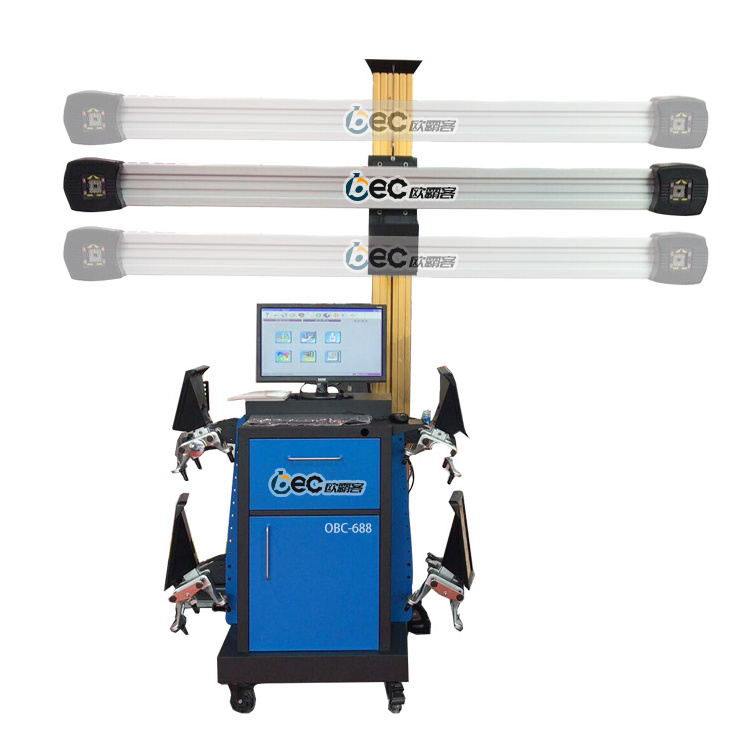

hot sale professional OBC-688 3D wheel alignment and balancing machine
-
Color:
-
Blue
-
Name:
-
car alignment machine
-
Product Name:
-
3D Wheel Alignment Machine
-
Certification:
-
CE Certificate
-
Language:
-
Global Multi-language
-
Keywords:
-
Wheel Alignment Machine Automotive Workshop
-
Application:
-
Alignment Machines Used
-
Camera:
-
5-mega-pixel
-
Trade Terms:
-
EXW
Popular Automatic tracking 3D wheel alignment and aligner machine
1. Features of software database updating automotive wheel alignment: ( Clients here to know more )
- 3D measurement technology -- The measurement technology based on the car body, more accurate and stable.
- Camera measurement system -- Two cameras combined with four target disks to create a revolutionary way of measuring.
- Target -- No electronic components, instead of traditional electronic sensors, eliminate possible equipment failures caused by ciruits.
- Calibration -- RCP calibration is only required once the installation of the equipment is completed. The process is sample and the work is not required to be repeated regularly.
- Measurement Process -- When measuing, there is no need to compensate the steel ring, which shorten the measuring time and improveds the accuracy.
- Software System -- Simple operation, read basic wheel aligner data in 2 minutes.
2. Parameter of alignment machine: ( Clients here to know more )
|
|
Item |
Accuracy |
Accuracy Range |
Measurement Range |
||
|
Spare part |
Dsiplay precision |
±2° |
0.1mm/0.01'' |
- |
||
|
The total toe |
±2° |
±0.01° |
±40° |
|||
|
Camber |
±3° |
±0.01° |
±45° |
|||
|
Caster |
±3° |
±0.02° |
±45° |
|||
|
S.A.I |
±2° |
±0.01° |
±45° |
|||
|
Set back |
±2° |
±0.01° |
±40° |
|||
|
The max steering |
±2° |
±0.02° |
±50° |
|||
|
Track width |
±2° |
±2mm |
1219mm-2438mm |
|||
|
Wheelbase |
±2° |
±2mm |
2006mm-4572mm |
|||
|
Configuration List |
||||||
|
Item |
Quantity(Sets) |
Remark |
||||
|
Camera |
1 |
5 megapixel HD camera with beam |
||||
|
Clamp |
4 |
|
||||
|
Target |
4 |
|
||||
|
Computer |
1 |
Windows/XP 20G SSD 2G Memory |
||||
|
Displayer |
1 |
22 ” |
||||
|
Pillar |
1 |
Aluminium alloy |
||||
|
Mouse/Keyboard |
1 |
|
||||
|
Steering wheel lock |
1 |
|
||||
|
Turntable |
2 |
|
||||
|
Wedge-shaped pad |
1 |
|
||||
|
Transitional block |
1 |
|
||||
|
Manual |
1 |
|
||||
|
Warranty card |
1 |
One year warranty |
||||
|
Certification |
1 |
|
||||
