Description:
-
Current Sensor Split Core, split core current transformer
-
Manufacturing Date Code:
-
YYWW
-
Model Number:
-
P18
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
GFUVE
-
Theory:
-
electromagnetic induction
-
Output:
-
current, voltage
-
Ratio:
-
1000: 1 or 2000:1
-
Accuracy:
-
0.1%, 0.2%
-
Primary current:
-
0 - 10A AC and 0-200A AC
-
Secondary current:
-
0 - 100mA AC and 0 - 200mA AC
-
Signal output:
-
10A (100mV/A) and 100A (200A)(10mV/A) with Switch
-
Frequency range:
-
10Hz-2MHz
-
Color:
-
Red, Black
-
Size:
-
52.5*137.5*28mm
-
Weight:
-
400g
-
Packing:
-
Wooden packing
Quick Details
-
Usage:
-
current measure
-
Features:
-
Split core current sensor
-
Mounting Type:
-
Clamp type
-
Description:
-
Current Sensor Split Core, split core current transformer
-
Manufacturing Date Code:
-
YYWW
-
Model Number:
-
P18
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
GFUVE
-
Theory:
-
electromagnetic induction
-
Output:
-
current, voltage
-
Ratio:
-
1000: 1 or 2000:1
-
Accuracy:
-
0.1%, 0.2%
-
Primary current:
-
0 - 10A AC and 0-200A AC
-
Secondary current:
-
0 - 100mA AC and 0 - 200mA AC
-
Signal output:
-
10A (100mV/A) and 100A (200A)(10mV/A) with Switch
-
Frequency range:
-
10Hz-2MHz
-
Color:
-
Red, Black
-
Size:
-
52.5*137.5*28mm
-
Weight:
-
400g
-
Packing:
-
Wooden packing

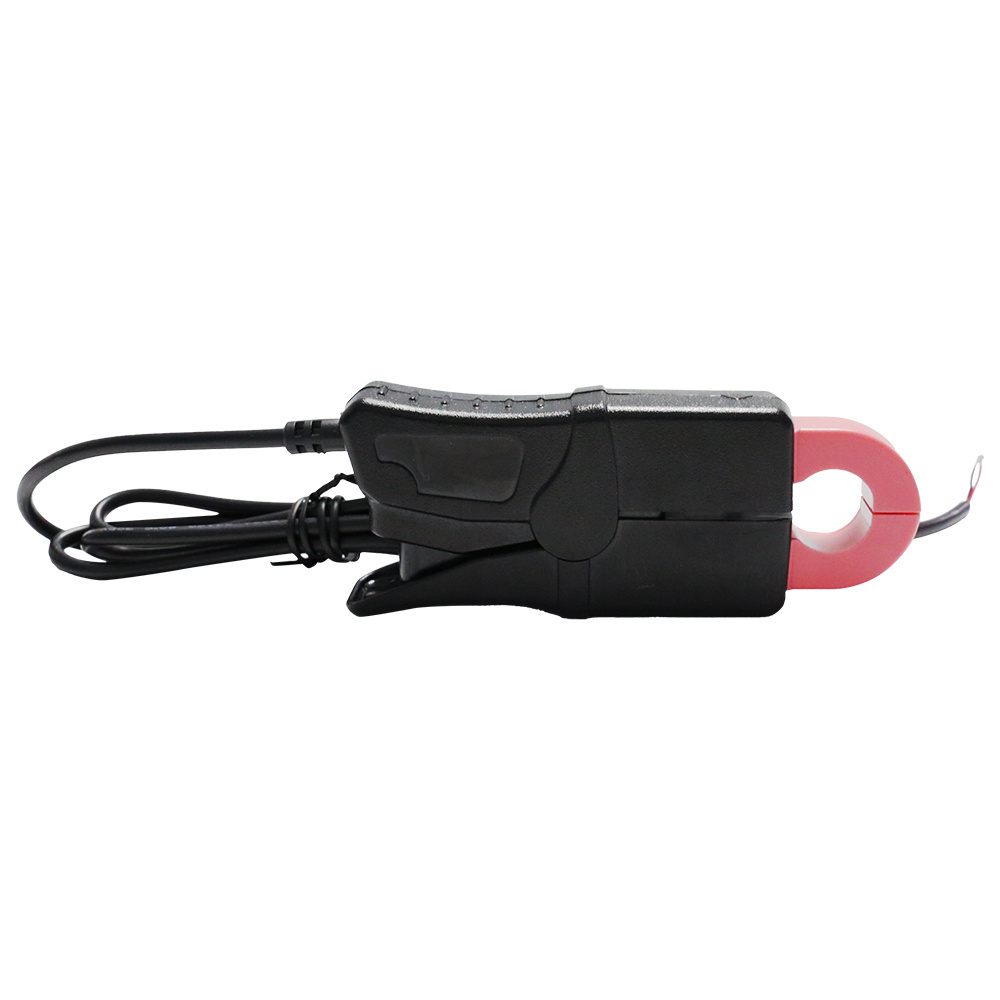

The P18 AC Current Clamp is a general purpose 200A AC current clamp designed for use on DMMs with current inputs, power loggers and meter calibration instruments. With a measuring range of 1mA to 200A, it has a current ratio of 1000:1 and an output current of 1mA per ampere or a jaw measurement of 1mV per ampere. Click the link below and view more product information: https://www.gfuvegroup.com/ac-current-clamp/200a-double-ratio-voltage-output-ac-current-clamp.html
UL, CE mark;
Holding wire diameter: φ18mm;
Frequency 10Hz-2MHz Bandwidth;
High times harmonic measurement;
Conforms to EN 61010, 600V CAT III;
Measurement range of 1mA to 200A AC;
Low phase shift for power measurement;
High content nickel metal permalloy core;
Improved ergonomic design & easy operation;
High precision 0.1% for current measurement;
Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters;
| Electrical parameters | |
|---|---|
| Ratio | 1000: 1 or 2000:1 (customized) |
| Accuracy class | 0.1%, 0.2% |
| Primary current | 0 - 10A AC and 0-200A AC |
| Signal output | 10A (100mV/A) and 100A (200A)(10mV/A) with Switch |
| Secondary voltage | 0 - 1V AC, 0 - 2V AC, 0 - 5V AC, 0 - 10V AC |
| Secondary current | 0 - 100mA AC and 0 - 200mA AC |
| Max. Cont. Input current | 240A |
| Load capacity | ≤20Ω , Standard 4Ω |
| Over voltage category | CAT III 600V |
| Frequency range | 10 Hz-2MHz |
| Dielectric strength | 3KV 50Hz/60Hz at 1minute |
| Temperature range | -40°C to +55°C |
| Output | 2.5 meter cable with D01 or BNC connector, 4mm banana |
| Max. voltage not insulated conductors | 600 V |
| Ratio | single winding, or double winding |
| Standard |
EN 61010-1, EN 61010-2-032, EN 61010-2-031
IEC60044-1, & IEC61869-2, 600V CAT III |
| Installation | clamp type |
| Output mode | lead output(2.5m) |
| Connector | BNC, 4mm banana, signal cable(2 cores),customized |
| Mechanical parameters | |
| Dimensions (L x W x H) (mm) | 52.5 x 137.5 x 28 |
| Weight (g) | 400 |
| Holding wire diameter (mm) | φ18 |
| Max. jaw opening (mm) | 18 |
| Jaw color | Red, black |
| Material | PC+ABS, UL94 V0 |
