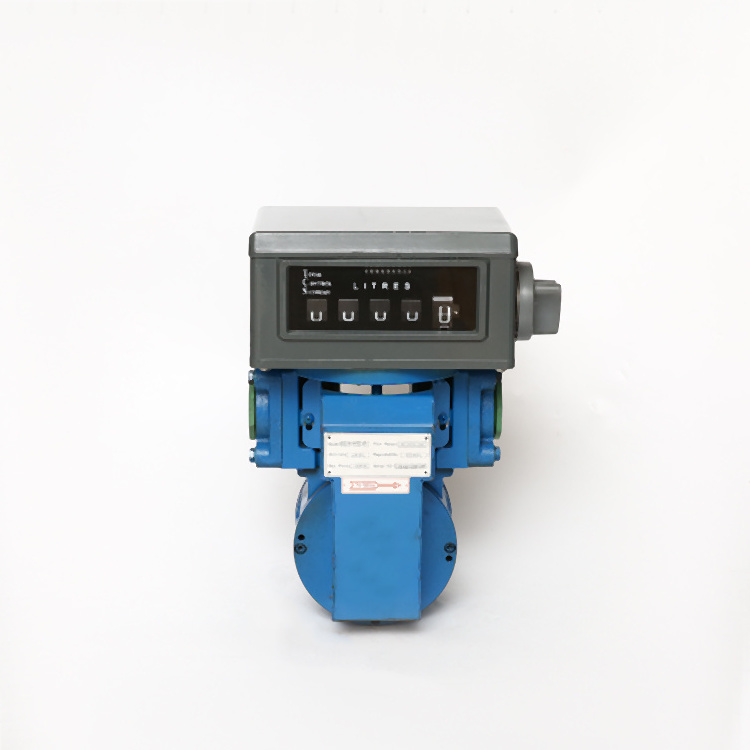

Product Details: high tank vane flowmeter,biofuel positive displacement vane meter,smith vane meter

Characteristic:
Stepless adjusting mechanism allow a micro adjustment of the meter;
Special designed Manifold in line separates from measuring chamber to avoid stress coming from the installation;
Low pressure loss;
Simple construction : Rotor - blades for easy and low maintenance cost;
Wearing compensation :To maintain a good accuracy all along the years;
Meter also for viscous products : up to 800 Cst.

Materials:

Manifold: steel or Aluminum;
Body: nickelic cast iron;
Covers: Steel;
Rotor: aluminum;
Blades: carbon;
Bearings: stainless steel;
Seals/ gaskets: viton, Buna'N' .

Application:

1. Oil company: refineries, Oil depots, gas station and Tank trucks distribution ;
2. Airports: aircraft refuellers ;
3. Army: depot reception or loading trucks ;
4. Administration (railway companies, public transport) ;
5. Ports: Boats/barges ;
6. Private oil transport companies.

Technical Specification:

Model	SM50
Size	50mm/2 "
Volume Per Revolution	0.4L/0.08US Gallons
Max. Flow Rate	24m3/H 400L/min
Min. Flow Rate	2.4m3/H 40L/min, 10.5US Gallons
Accuracy	±0.2%
Repeatability	≤0.05%
Max. Operation Pressure	8Bar/120PSI/8.3Kg/cm3
Working Temperature Range	-40 °C ~+60 °C
Max. Viscosity	800cps/3850 SSU
