Quick Details
-
Brand Name:
-
U-ideal
-
Model Number:
-
UQC
-
Float material:
-
Polypropylene (PP)/SS304/SS316
-
Cable material:
-
PVC or Silicon
-
Length of cable:
-
≤20m
-
Max. temperature:
-
60 or 90°C
-
Max. Pressure:
-
3.5 bar
-
Power supply:
-
250 VAC, 50 / 60 Hz
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
U-ideal
-
Model Number:
-
UQC
-
Float material:
-
Polypropylene (PP)/SS304/SS316
-
Cable material:
-
PVC or Silicon
-
Length of cable:
-
≤20m
-
Max. temperature:
-
60 or 90°C
-
Max. Pressure:
-
3.5 bar
-
Power supply:
-
250 VAC, 50 / 60 Hz
Products Description

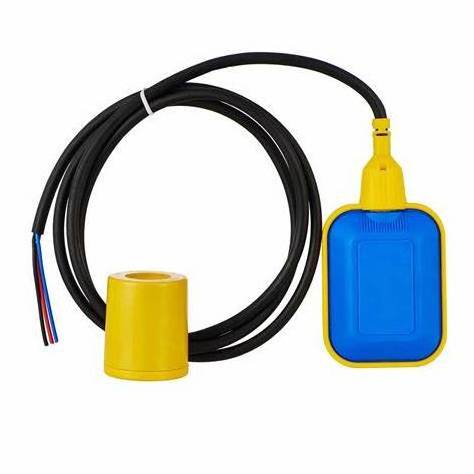

Cable Float Level Switch
The Cable type Float Level Switch is made from chemical resistant polypropylene. It is durable, low-cost,and specially designed to assist with long range and multiple point level detection in liquids. It is also suitable for tanks containing pumps and granular solutions.
The Cable Float Level Switch is a structured by using either micro switches, proximity switches or reed switches to control the contact. It’s user-friendly design is ideal for level measurement.
The switches will transmit an ON or OFF contact signal output when the float rises and turns upwards. The switch contains a metal ball that can slide as the float position changes. The change in contact signal is used to detect the level.
For different water or solution temperatures, different float materials are available for selection. Plastic and stainless steel switches are the most common. The cable float level switch can not only can be used in clear liquids but also can be used in granular liquids.
Long-distance detection points and multi-point contacts are also available. Cable float level switches can be applied in all water management, petrochemical, chemical industries.
Other uses include air-conditioner systems, drainage systems, most tanks, or containers with level switch requirements.
Product Paramenters
|
Float material
|
Polypropylene (PP)/SS304/SS316
|
|
Cable material
|
PVC or Silicon
|
|
Length of cable
|
3 to 20 m
|
|
Max. Temperature
|
60 or 90°C
|
|
Max. Pressure
|
3.5 bar
|
|
Medium density
|
0.5 ... 1.15 kg/dm3
|
|
Contact
|
Micro switch, Changeover contac
|
|
Switch capacity
|
20 A at resistive load
8 A at inductive load
|
|
Power supply
|
250 VAC, 50 / 60 Hz
|
|
Actuating angle
|
110° (55° from the horizontal plane in both directions)
|
|
Protection
|
IP 68 (cable ends may not be Immersed under water at any time)
|
Company Introduction
Company introduction
Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines.
Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation. Our products strictly enforce the ISO9001 quality management system, and provide customer a safe product.
Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.
