Quick Details
-
Model Number:
-
CS-720W
-
Brand Name:
-
YXPC
-
Product name:
-
water control valve with timer
-
model:
-
CS-720W
-
mounting way:
-
PIPE thread
-
Coil Voltage:
-
DC12V,24V,AC36V,110VAC,220VAC,380VAC
-
Material:
-
Brass or stainless steel
-
Max pressure:
-
80bar
-
Seal material:
-
NBR,FKM ,EPDM
-
orifice:
-
1.9mm,2.5mm,4mm
-
Operation:
-
2/2 way Direct drive
-
Type:
-
SOLENOID VALVES
Quick Details
-
Port Size:
-
G 1/2", G1/4". G3/8", G1/2"
-
Warranty:
-
one year
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
CS-720W
-
Brand Name:
-
YXPC
-
Product name:
-
water control valve with timer
-
model:
-
CS-720W
-
mounting way:
-
PIPE thread
-
Coil Voltage:
-
DC12V,24V,AC36V,110VAC,220VAC,380VAC
-
Material:
-
Brass or stainless steel
-
Max pressure:
-
80bar
-
Seal material:
-
NBR,FKM ,EPDM
-
orifice:
-
1.9mm,2.5mm,4mm
-
Operation:
-
2/2 way Direct drive
-
Type:
-
SOLENOID VALVES

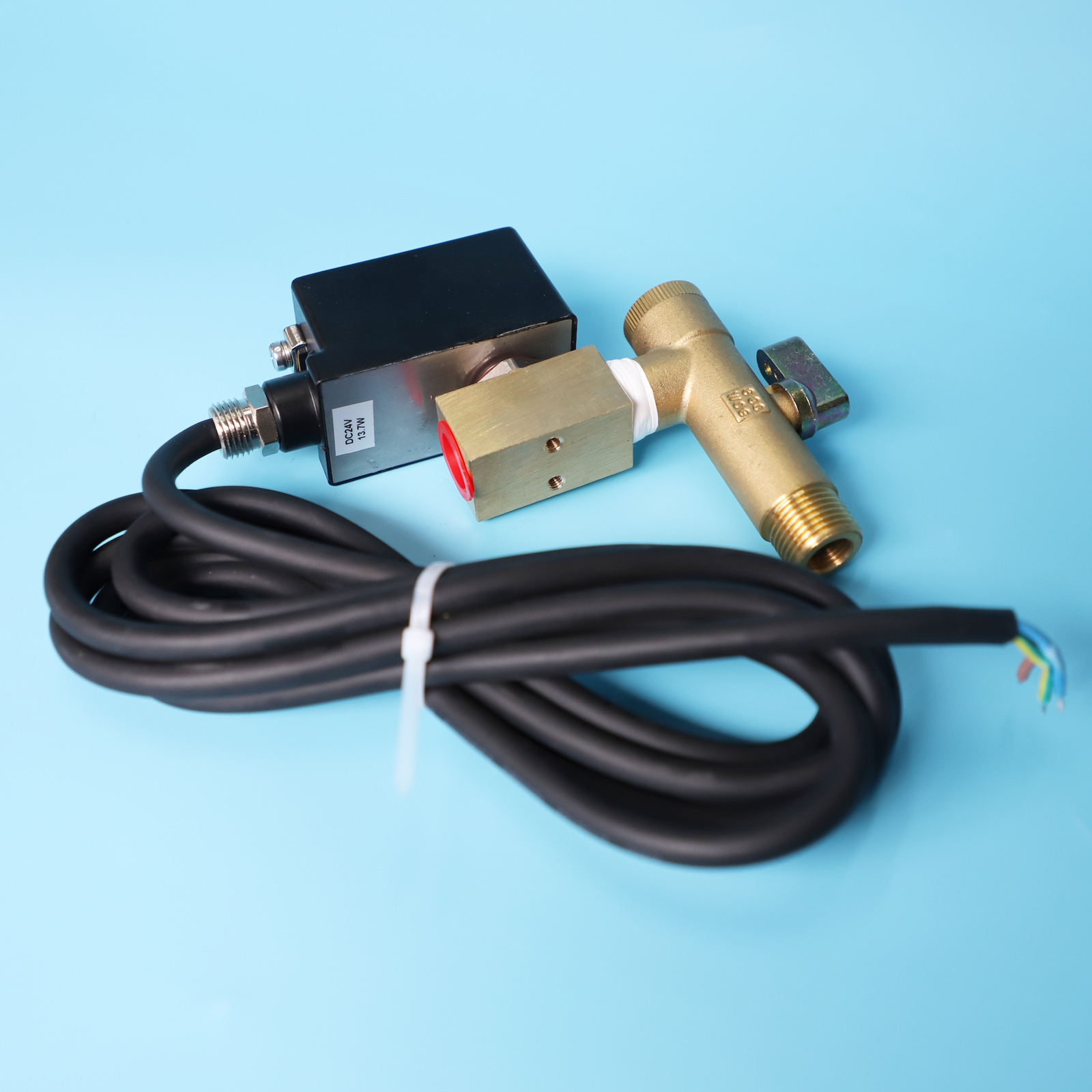

CS series
timer solenoid valve
Different Digital timer to choose
Brass body ,16bar,25bar,40bar,80bar pressure range
timer solenoid valve is widely used as spare parts of air comparessor.
solenoid water valves are automatically control fluid flow
With cooper filter ball valve
Explosion proof Drain valve with timer XY-720W
drain valve with timer XY-720 UL certified
timer electric water valve can control the valve open and close automatically.
NPT thread drain valve is easy to install,working with strainer to protect against impurity from condensate;
230VAC timer solenoid valve are widely used as spare part of air dryer system.
water valve for air compressor;cleaning machine valves.
Automatic drain valves designed as Air compressor valves and compressor parts,auto drain valve is suitable for compressed air
storage tank or other gas pressure vessels to remove water or harmful liquid.
Electic control valve is to control fluid flow open and close;
Water valve with timer ith or without filter ball valves or float type ball valves can be shut off from the compressed air system
enabling easy and safe maintenance ;
The Timer drain valves are used to simulate the solid-state electronic timer and the solenoid valve, so as to realize the
automatic discharge of condensed water.
storage tank or other gas pressure vessels to remove water or harmful liquid.
Electic control valve is to control fluid flow open and close;
Water valve with timer ith or without filter ball valves or float type ball valves can be shut off from the compressed air system
enabling easy and safe maintenance ;
The Timer drain valves are used to simulate the solid-state electronic timer and the solenoid valve, so as to realize the
automatic discharge of condensed water.
Product Paramenters
|
product name
|
EX timer solenoid valve
|
|
|
||
|
working medium
|
Compressed Air,Water,Light oil
|
|
|
||
|
model
|
CS-720W
|
|
|
||
|
Valve Style
|
2/2 Direct action
|
|
|
||
|
initial status
|
normally closed
|
|
|
||
|
port size
|
G 1/4"., G3/8".G 1/2 Female
|
|
|
||
|
way and position
|
2 Position 2 way
|
|
|
||
|
material of body
|
Brass
|
stainless steel
|
|
||
|
Operating pressure
|
0-16bar
|
0-40bar
|
0-80bar
|
||
|
orifice
|
4.5mm
|
2.5mm
|
1.9mm
|
||
|
On Time
|
0.5 - 10s
|
|
|
||
|
Off Time
|
0.5-45min
|
|
|
||
|
Power
|
AC22VA/DC20W
|
|
|
||
|
working voltage
|
DC/AC 24~240V 50/60Hz±10%
|
|
|
||
|
Temperature Range
|
20℃~60℃
|
|
|
||
|
Highest Media Temperature
|
-20 ~ 150°
|
|
|
||
|
Mounting
|
Any place
|
|
|
||
Dimension size
