Quick Details
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hualian
-
Dimension(L*W*H):
-
1050*900*900mm
-
Weight:
-
50kgs
-
Certification:
-
CE,ISO9001
-
sealing speed:
-
12 or 16m/min
-
hull:
-
paint or stainless steel
-
direction:
-
from right to left
-
Power (W):
-
235
-
Sealing Power (W):
-
220*2 (300*2)
-
solid ink roller:
-
16*36
Quick Details
-
Packaging Type:
-
Bags, Stand-up Pouch, Pouch
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
hualian
-
Dimension(L*W*H):
-
1050*900*900mm
-
Weight:
-
50kgs
-
Certification:
-
CE,ISO9001
-
sealing speed:
-
12 or 16m/min
-
hull:
-
paint or stainless steel
-
direction:
-
from right to left
-
Power (W):
-
235
-
Sealing Power (W):
-
220*2 (300*2)
-
solid ink roller:
-
16*36

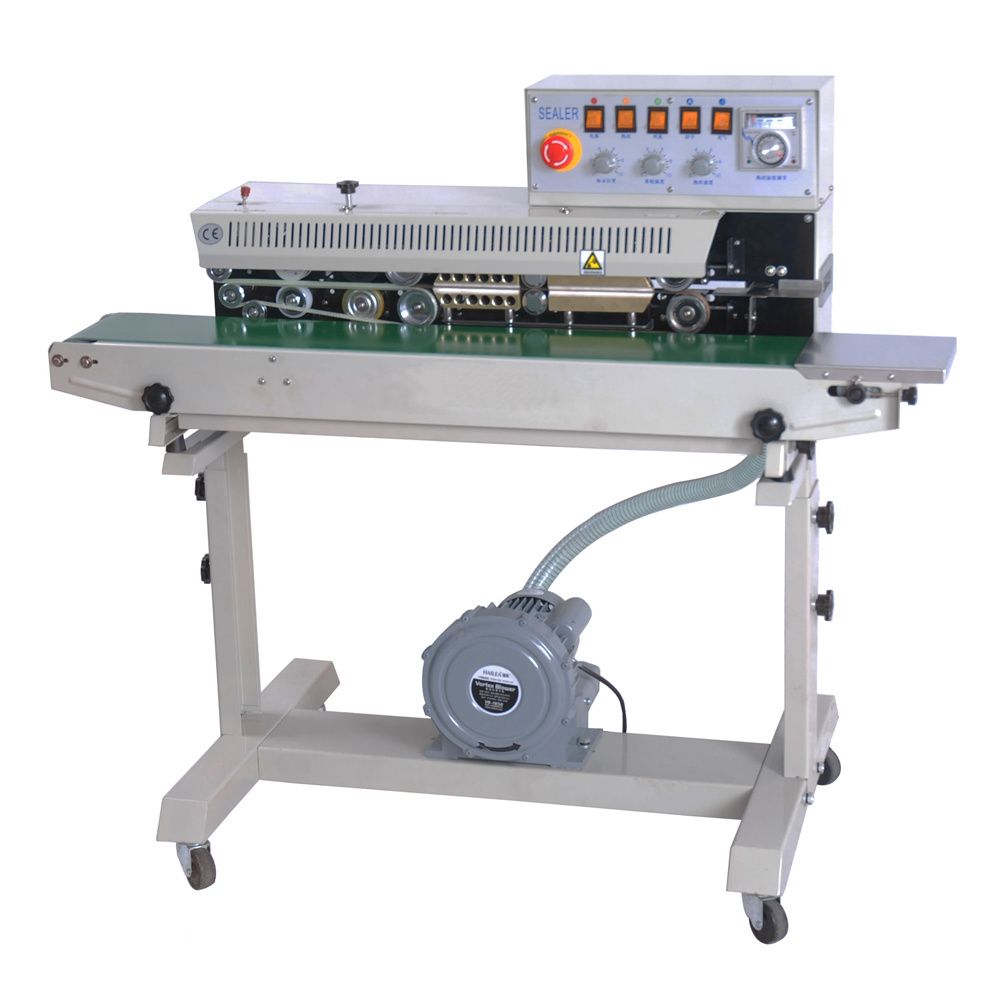

HUALIAN Nitrogen Sealing Machine(FRMQ-980III)
Description:
-
FRQ-980 series Nitrogen Sealing Machine can seal any heat-sealable materials.
-
Apart from the function of gas filling, model FRMQ-980C adopts solid-ink coding device to print the colored label on bag while sealing.
-
The print wheel equipped to the machine can be used for both R arrange and T arrange of types.
-
For types in R arrange, the machine can print two lines in font size two (18PT) or three lines in font size five (10.5PT). If necessary, counting device can be equipped as well.
Features:
- Constant temperature control and temperature is adjustable.
- Stepless speed regulation
- Solid-ink coding is featured by high definition, various selectable colors, instant dry while printing, strong adhesive property.
Application:
FRQ-980 series Nitrogen Sealing Machine is applied to pack fragile or bulking objects generally.
Parameters:
|
|
FRMQ-980III |
FRQ-980III |
|
Voltage (V/Hz) |
AC 220/50 110/60 |
|
|
Power (W) |
235 |
|
|
Sealing Power (W) |
220×2 (300×2) |
|
|
Printing Heating Power (W) |
40×2 |
|
|
Sealing Speed (m/min) |
0-12 (0-16) |
|
|
Sealing Width (mm) |
8 |
|
|
Temperature Range ( °C ) |
0-300 |
|
|
Printing Type |
Solid Ink Roller |
- |
|
Distance from Sealing Center
|
10-40 |
10-40 |
|
Conveyor Table Size (L×W) (mm) |
930×153 |
|
|
Max. Conveyor Loading for
|
≤1 |
|
|
Overall Conveyor Loading (kg) |
≤3 |
|
|
External Dimensions (L×W×H) (mm) |
1050×560×900 |
1050×560×900 |
|
Net Weight (kg) |
62 |
62 |
