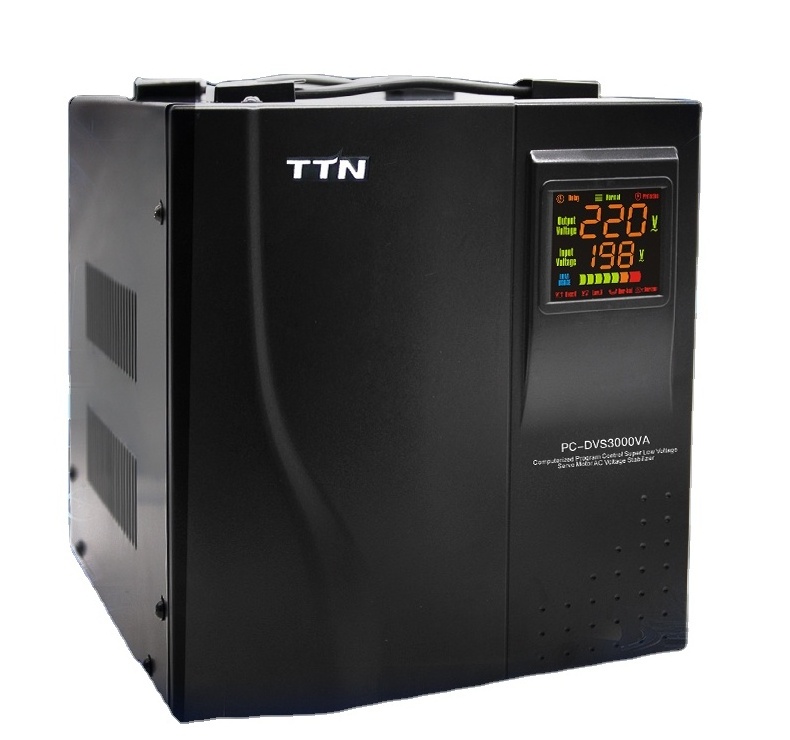

TTN 10kva AVR AC Automatic Voltage Regulator Single Phase 120V 220V 230V relay Control electric Voltage Stabilizer for home

TTN 10kva AVR AC Automatic Voltage Regulator Single Phase 120V 220V 230V relay Control electric Voltage Stabilizer for home

FOB Reference Price: Get Latest Price

≥1 Pieces

US $59

≥5 Pieces

US $55

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: TTN

Model Number:: TTN-PC-DVR (relay control Voltage Stabilizer)

Input voltage range:: 80V-270V

Output voltage:: 220V/230V+/-10%

Protection:: over voltage/low voltage/over loading/delay time/creepage

Frequency:: 50HZ/60HZ

Efficiency:: More than 90%

Color:: black/white

Certificate:: CE,ISO, SONCAP , CCC

Payment:: TT , 30% in advanced

warranty:: 1 year

Delivery time:: 20 days for production

Quick Details

Phase:: Single Phase

Current Type:: AC

Place of Origin:: Zhejiang, China

Brand Name:: TTN

Model Number:: TTN-PC-DVR (relay control Voltage Stabilizer)

Input voltage range:: 80V-270V

Output voltage:: 220V/230V+/-10%

Protection:: over voltage/low voltage/over loading/delay time/creepage

Frequency:: 50HZ/60HZ

Efficiency:: More than 90%

Color:: black/white

Certificate:: CE,ISO, SONCAP , CCC

Payment:: TT , 30% in advanced

warranty:: 1 year

Delivery time:: 20 days for production

Products Description

TTN Voltage Regulators/Stabilizers

TTN voltage regulator is a kind of power supply circuit or power supply equipment that can automatically adjust the output voltage. Its function is to stabilize the power supply voltage with large fluctuations and requirements of non-shared electrical equipment within its set value range, so that various circuits or electrical equipment can work normally under the rated working voltage. TTN voltage stabilizer can be widely used for in industrial and mining enterprises, oil fields, railways, construction sites, schools, hospitals, posts and telecommunications, hotels, agriculture, transportation, military, scientific research and other departments with costly and precious mechanical and electrical equipment, metal processing equipment, production lines, embroidery and textile equipment, electronic computers, precision machine tools, medical equipment like computer tomography (CT), precision instruments, laboratory testing devices, elevator lighting, offset printing machines, imported high-end equipment, and other places that need stable voltage of power supply. It is also suitable for home users at the end of low-voltage distribution network with too low or too high-power supply voltage and large fluctuation range, and for electrical equipment with large load variation, especially for all voltage stabilizing electric fields with high requirements for grid waveform, such as air conditioners, radio and television, household electricity supply and lighting. The high-power compensated power regulator can be connected to thermal, hydraulic and small generators.

TTN-PC-DVR500VA~10000VA Relay Control Voltage Regulator

PC-DVR series Relay Control Voltage Regulator has the low energy consumption, the over voltage protection, the low voltage protection, the over-current protection, the over-loading protection, the over-temperature protection and so on. It boasts for many kinds of protections, the collection energy conservation and the environmental protection etc. This is a brand-new concept product which has many new technologies! This series products already have been applied for many households' electric appliances. We already applied many kinds of this products patent, and the technical patent NO: 200720036394.1 and Appearance paten NO: 200730025909.3

Relay Control Voltage Regulator Use for equipment:
Computer
Test equipment
Light system
Safe alarm system
Ray equipment
Medical equipment
Copy machine
Stereo equipment
Numerical control machine tools
Industrial automation equipment
Color and drying equipment
Test equipment
Hi-Fi equipment

MODEL	PC-DVR500VA	PC-DVR1000VA	PC-DVR1500VA	PC-DVR2000VA
MODEL		PC-DVR3000VA	PC-DVR5000VA	PC-DVR8000VA	PC-DVR10000VA
TECHNOLOGY	Relay Control System+Micro computer programed control
LED DISPLAY	info	Input Voltage/Output Voltage/Load Usage/Time Delay/Normal Working/Protection
		Protection	Over Voltage	Output voltage≥243V±4V
				Low Voltage	Output voltage≤188V±4V
				Over Loading	more than 120%
				Over Temperature	120°C±10°C
				Delay Time	Long time(255 second)/short time(5 second)
				Creepage	Regulator/Bypass
		Language	English/Russian/Chinese			English/Russian/Chinese
INPUT VOLTAGE	AC150-270V(A Type);AC135-270V(B Type);AC105-270V(C Type);AC80-270V(D Type)
OUTPUT VOLTAGE	220V±10% adjustable
FREQUENCY	50Hz/60Hz
PHASE	Single Phase
EFFICIENCY	≥90%
AMBIENT TEMPERATURE	-15°C~45°C
RELATIVE HUMIDITY	<95%
WAVEFORM DISTORTION	no additional wave form distortion
INSULATING RESISTANCE	Normally more than 2MΩ
SPECIFICATIONS
POWER	500VA	1000VA	1500VA	2000VA
PACKING SIZE(cm)	35.8×30.3×42.3	35.8×30.3×42.3	35.8×30.3×42.3	39.6×35.3×46.7
PACKING (pcs)	4	4	4	4
G.M(kgs)	12.33	14.51	15.27	24.66
POWER	3000VA	5000VA	8000VA	10000VA
PACKING SIZE(cm)	38.6×27.7×29.8	38.6×27.7×29.8	43.3×27.7×29.8	44.2×30.4×37.1
PACKING (pcs)	1	1	1	1
G.M(kgs)	11.66	16.89	18.75	25.55

Product Details

Precision control circuit board

Voltage fluctuation large or small can be Instantaneous stable output of 220V

The circuit boards used by TTN are all self-developed, designed and manufactured, and can be customized according to customer needs.

High quality voltage regulating coil

More than 100000 hours of service life

6 relays(5+1)

Relay control voltage regulator input has 4 choices: AC135-270V (4 relays); AC105-270V (5 relays); AC90-270V (5 relays); AC80-270V (6 relays).

Patented appearance, sturdy and durable

Safe and reliable materials ensure your long-term use.

LED display clearer and better

Our automatic voltage regulator has LED display, can show fully information on screen for you to monitor its working status. For example, the input voltage, output voltage, load status. It is intelligent, which has multiple protection function. For example, when the output is over 243V or lower 188V, the stabilizer will cut off automatically. When the loading is over 120%, it also will cut off automatically to protect the equipment. Furthermore, when some failures occur which make the temperature rise too high, it will also close automatically to protect the whole circuit. In addition, the delay choice 5 seconds or 255 seconds is designed especially for some equipment when it starts, their instant current is very huge.
