Quick Details
-
Weight:
-
5600 KG
-
Marketing Type:
-
New
-
Mobility:
-
Move by crawler
-
Max thrust pull force:
-
225/225 kN
-
Max thrust pull speed:
-
26m/min
-
Torque:
-
6350 Nm
-
Max spindle speed:
-
160 r/min
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Other
-
Dimension(L*W*H):
-
4000*1750*2450 (mm)
-
Weight:
-
5600 KG
-
Marketing Type:
-
New
-
Mobility:
-
Move by crawler
-
Max thrust pull force:
-
225/225 kN
-
Max thrust pull speed:
-
26m/min
-
Torque:
-
6350 Nm
-
Max spindle speed:
-
160 r/min

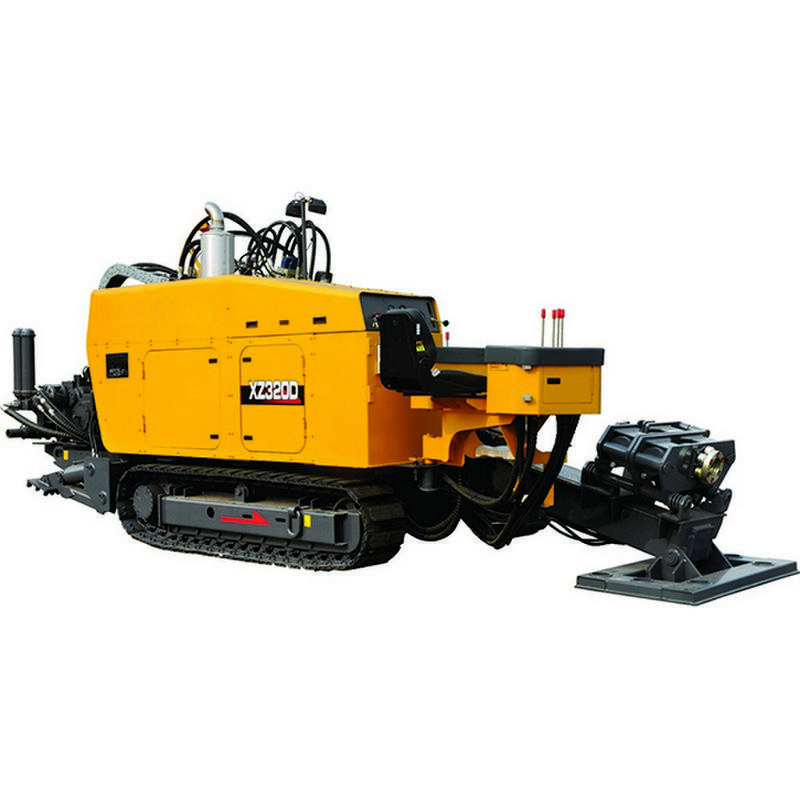

High Quality XZ320D Hanlyma Horizontal Directional Drilling Machine For Sale
Contact way
Sales Manager
Mark Li
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-13764758759
Web: www.newindu.com
Mark Li
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-13764758759
Web: www.newindu.com
Products Description
1.The dual-speed carriage is operated with low speed when drilling and dragging back to ensure smooth construction ,and can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the drilling rod with empty loads.
2.Rubber track: with minimum impact on the pedestrian way, lawn and landscape.
3.The floating clamp with patent technology can effectively prolong the service life of the pipe.
4.Rotatable Operator’s station, enlarge the field of the operators’ view and relieve their fatigue.
5.Automatic pipe loader can increase work efficiency, reduce work strength, reduce the number of construction staff.
6.The down and the up of the anchor is driven by hydraulics. The anchor is great in force and is easy and convenient to operate .
7.Engine cover is reasonable design ,it is simple and convenient when the engine and hydraulic system need to maintain and replace the filter .
Product Paramenters
|
project
|
unit
|
parameter
|
|
engine model
|
|
/
|
|
Engine rated power
|
KW
|
97
|
|
Push-pull method
|
|
/
|
|
Maximum drag/feed force
|
kN
|
180/180
|
|
Maximum torque of power head
|
Nm
|
6000
|
|
Power head speed
|
r/min
|
0-140
|
|
Moving speed of power head
|
m/min
|
0-21
|
|
Maximum reaming hole diameter
|
mm
|
Φ600
|
|
Drill rod length (single)
|
m
|
3
|
|
Drill pipe diameter
|
mm
|
Φ60
|
|
Angle of entry
|
°
|
10/22
|
|
Maximum mud flow
|
L/min
|
250
|
|
Maximum mud pressure
|
bar
|
80
|
|
Overall quality
|
t
|
8.5
|
