Name: Rollers
Material: Cr12--Model steel and GCr15--Bearing steel.
Treatment process: CNC precision machined, heat treatment
hard Chrome Coated; And at last mirror-surface treatment for anti-rust, long service life and beautiful.
- Product Details
- {{item.text}}
Quick Details
-
Rolling thinckness:
-
1.5-3.0mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BMS
-
Voltage:
-
220V or 380V or 415V /50Hz or 60Hz /3Ph
-
Dimension(L*W*H):
-
11.5M x 1.8M 1.9M
-
Weight:
-
12 kg
-
Product name:
-
Good quality Automatic c z purlin machine
-
certification:
-
CE
-
warranty:
-
2 years
-
weight:
-
2 tons
-
voltage:
-
220V or 380V or 415V /50Hz or 60Hz /3Ph
-
product capacity:
-
20M per minute
-
brand name:
-
BMS
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Steel
-
Production Capacity:
-
20M per minute
-
Rolling thinckness:
-
1.5-3.0mm
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
BMS
-
Voltage:
-
220V or 380V or 415V /50Hz or 60Hz /3Ph
-
Dimension(L*W*H):
-
11.5M x 1.8M 1.9M
-
Weight:
-
12 kg
-
Product name:
-
Good quality Automatic c z purlin machine
-
certification:
-
CE
-
warranty:
-
2 years
-
weight:
-
2 tons
-
voltage:
-
220V or 380V or 415V /50Hz or 60Hz /3Ph
-
product capacity:
-
20M per minute
-
brand name:
-
BMS
Product Description
Product Application

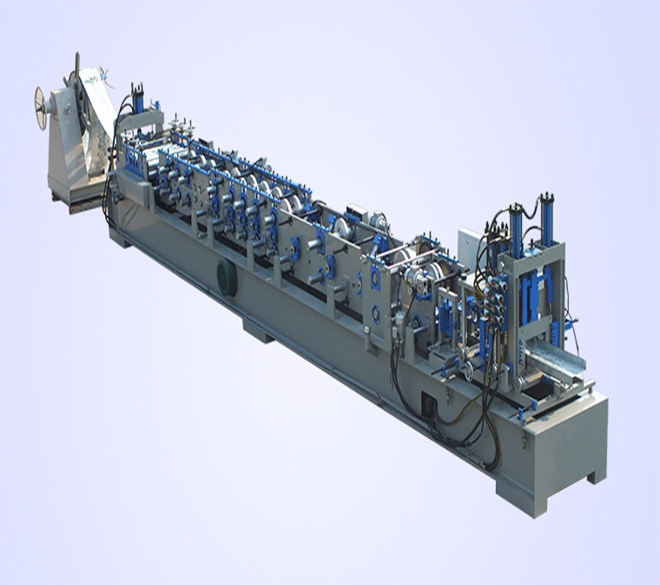

This machine takes GI or others as raw material, through a series steps and can produce the C shape and Z shape purlin in one machine . The PLC controls the batchs, pieces, length and punching automatically. And also changing the profile automatically just tap your target data in the touch screen and the profile changing would finish within one mimute.
The machine achieves a continuous automatic production, which is the ideal equipment for cold roll forming industry.
|
TECHNICAL PARAMETERS FOR CZ INTERCHANGE PURLIN MACHINE
|
|
|
|
|||
|
Serial Number
|
Item
|
Parameters
|
Remark
|
|||
|
Applicable material
|
Type
|
CRC,GI
|
|
|||
|
|
Thickness
|
1.5-3.0MM
|
|
|||
|
|
Yield strength(Mpa)
|
G245-G550
|
|
|||
|
Main performance parameters
|
Forming speed(M/MIN)
|
0-30M/MIN
|
|
|||
|
|
Machine size(L×W×H)
|
11.8*1.5*2
|
Refer to the machine
|
|||
|
|
Power supply(KW)
|
18.5+7.5
|
Motor and Hydraulic Motor
|
|||
|
MACHINE COMPONENTS FOR CZ INTERCHANGE PURLIN MACHINE
|
|
|
|
|||
|
name
|
model/name
|
quantity
|
Technical description
|
|||
|
|
|
|
Capacity: Max. 5Ton,hydraulic control steel coil inner bore expanding, shrinkage and stop.
|
|||
|
|
Material Guiding System
|
1 set
|
For feeding in a right position no Deviation.
|
|||
|
|
Leveling Device
|
1 set
|
Prevent the profile being unbeautiful because of the rough material.
|
|||
|
|
Punching Device
|
1 set
|
Two sets of punching pin: single and double hole. Controls by PLC.
|
|||
|
|
Main Roll Forming Machine
|
1 set
|
About 19steps, motor driving and chain transmission. Wall plate structure.
|
|||
|
|
Shaping Device
|
1 set
|
For the product shaping.
|
|||
|
3.Cutting system
|
Hydraulic Cutting Device
|
|
Precutting and postcutting for option.
|
|||
|
4.Hydraulic system
|
Hydraulic Station
|
1 set
|
Providing the power of cutting and punching.
|
|||
|
|
PLC Control System
|
|
PLC control system, encoder positioning and cut-to-length automatically, touch screen operating.
|
|||
|
6.Racking system
|
Exit rack
|
1 PC
|
Length 3 meters, no power.
|
|||
Main Features
1) One machine for C purlin and Z purlin.
2) Adopting advanced world famous brand components in computer parts. Like siemense, schneider, sony etc...
3) Auto change the profile between C100-300 AND Z140-300 in one mimute.
4) Running in a high automatization and intellectualization,no pollution.
5) Punching and cutting automatic control by the PLC computer.
Detailed Images
Machine parts
Machine parts
Name:
Prepunching and precutting device
Feature: Cutter and pins are make from model steel.
Prepunching: Single hole and dual holes available, hole size 14*25MM, and punching distance control by PLC system, punching on web and flange both.
Precutting: Two pieces cutter, no blanking, driving by hydraulic power.
Machine Parts
Name:
Transmission motor and reducer.
Feature: China top Brand motor, stable and no noisy, if you need, siemense motor is available also.
Domestic famous engines, strong driving force, low fuel consumption, high economic benefits.
Main Features
Name:
Postcutting of the CZ purlin machine.
Feature:
1 Set cutting die for all Sizes, no need to change cutter for each purlin and specification.
Paten technology.and cutting after forming for the better good finish products, no flare.
Double hydraulic cylinder brings more stable for the cutting process, longger service life.
Packing & Delivery
Before laoding the machine in the container, we clean the machine first and cover with a film.
and fix the machine stable and tighty by Steel wire rope in the container, thus, for the machine safe, no moving.
