Quick Details
-
Brand Name:
-
FRESH
-
Dimension(L*W*H):
-
592*592*600mm
-
Weight:
-
12 KG
-
Type:
-

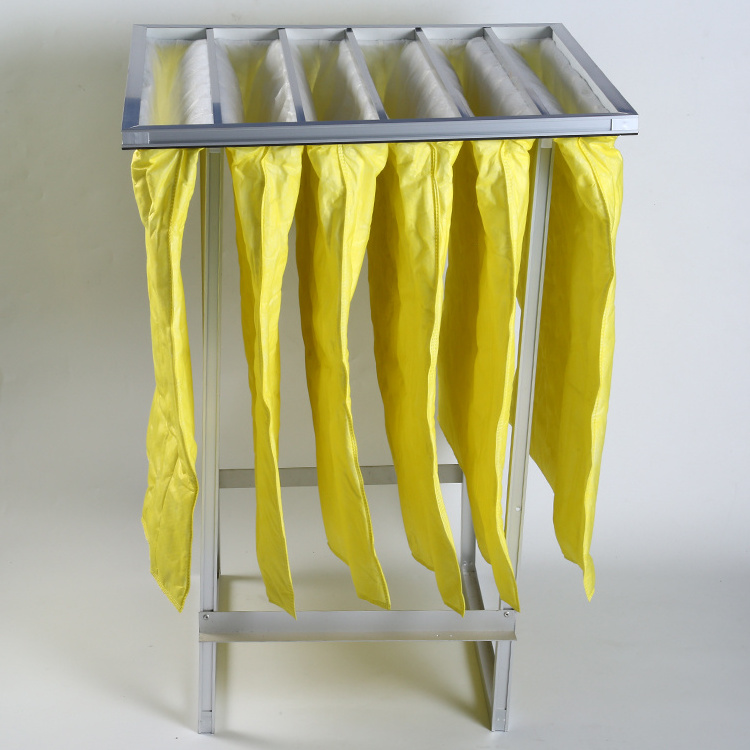

pocket filter
-
Frame:
-
aluminum alloy or stainless steel
-
Media:
-
Synthetic fiber
-
EN779 class:
-
F9
-
Temp. Resistance:
-
100 degree Celsius
-
Humidity:
-
100%
-
MOQ:
-
10 PCS
-
Function:
-
Air Filtraion
-
Structure:
-
Bag Filter
-
Package:
-
Carton Box
-
Marketing Type:
-
New Product 2021
Quick Details
-
Core Components:
-
N/A
-
Efficiency:
-
45%,65%,85%,95%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FRESH
-
Dimension(L*W*H):
-
592*592*600mm
-
Weight:
-
12 KG
-
Type:
-
pocket filter
-
Frame:
-
aluminum alloy or stainless steel
-
Media:
-
Synthetic fiber
-
EN779 class:
-
F9
-
Temp. Resistance:
-
100 degree Celsius
-
Humidity:
-
100%
-
MOQ:
-
10 PCS
-
Function:
-
Air Filtraion
-
Structure:
-
Bag Filter
-
Package:
-
Carton Box
-
Marketing Type:
-
New Product 2021
|
Filter grade: |
F5 F6 F7 F8 F9(EN779) |
Filte object: |
particles≥1μm |
|
Filtration efficiency: |
35% 45% 65% 85% 95%(ASHRAE52.1-1992) |
Humidity: |
≤100%RH |
|
Inflaming retarding grade: |
S2(DIN 53438), V-0(UL94 HB) |
Temperature: |
≤100℃ maximum in continue service |
|
Instantaneous temperature resistance: |
≤120℃ |
|
|
01 |
Filtering micro particles in spray booth air inflow system. |
|
|
||
|
02 |
Dust removal in Painting equipment, painting system and painting workshop. |
|
|
|
|
|
|
03 |
Secondary filtering in high-quality painting system and air intake system of baking equipment. |
|
|
|
|
|
|
04 |
Medium filter media for producing air filter. |
|
|
|
|
|
|
05 |
Can be customized in pad/pad with fram |
|
Type |
Dimensions(mm) |
Rated air flow(m 3 /h)&Pa |
Filtering area |
EN779 |
Color |
||||||
|
Width |
Height |
Depth |
Bags |
||||||||
|
95% |
592 |
592 |
600 |
6 |
2550/67 |
3400/90 |
4250/115 |
4.4 |
F8 |
Yellow |
|
|
290 |
592 |
600 |
3 |
1250/67 |
1700/90 |
2100/115 |
2.2 |
F8 |
|||
|
592 |
592 |
600 |
8 |
2550/60 |
3400/80 |
4250/100 |
5.6 |
F8 |
|||
|
290 |
592 |
600 |
4 |
1250/60 |
1700/80 |
2100/100 |
2.8 |
F8 |
|||
