Quick Details
-
Brand Name:
-
HuaZheng
-
Model Number:
-
HZ-5200
-
Product name:
-
contact resistance meter
-
Current Test:
-
100A,200A
-
Resolution:
-
0.1 Min.
-
Accuracy:
-
+ (0.2%+2 words)
-
operating temperature:
-
0~40
-
work humidity:
-
≤90%, no dew
-
shape size:
-
355*275*147mm
-
Instrument weight:
-
9.5KG
Quick Details
-
Warranty:
-
1 YEAR, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HuaZheng
-
Model Number:
-
HZ-5200
-
Product name:
-
contact resistance meter
-
Current Test:
-
100A,200A
-
Resolution:
-
0.1 Min.
-
Accuracy:
-
+ (0.2%+2 words)
-
operating temperature:
-
0~40
-
work humidity:
-
≤90%, no dew
-
shape size:
-
355*275*147mm
-
Instrument weight:
-
9.5KG

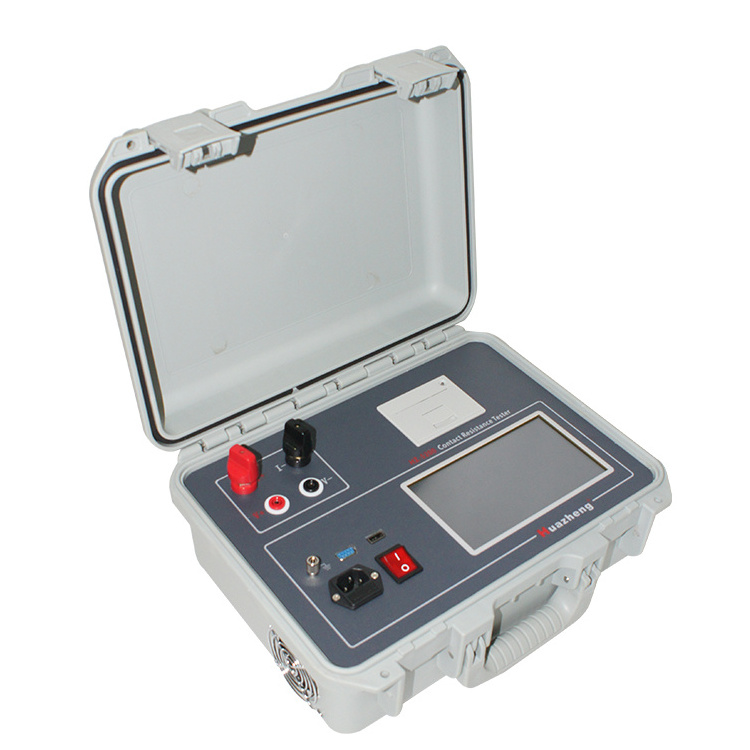

Huazheng Electric 200A circuit breaker switch loop contact resistance tester
|
MAIOR TECHNICAL INDICATORS |
|
|
Current measurement |
50A, 100A , 150A, 200A |
|
Range
|
0~ 100mΩ ( 50A ) 0 ~ 50mΩ ( 100A ) |
|
|
0~ 20mΩ ( 150A ) 0 ~ 20mΩ ( 200A ) |
|
Resolution |
0.1µΩ At Min. |
|
Precision |
± ( 0.5%±2 ) |
|
Power consumption |
1000W |
