Quick Details
-
Weight:
-
1.5-12000KG
-
Size:
-
more than 1M*1M*2M
-
Power:
-
more than 1.5KW, 1.5-22KW
-
Weight (KG):
-
6000 kg
-
Name:
-

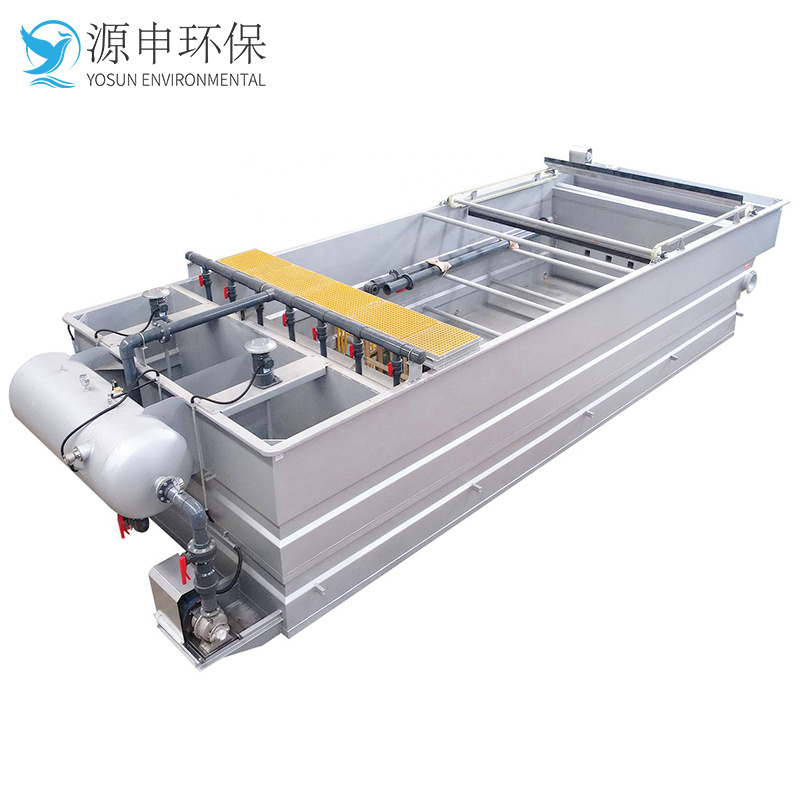

Spunlace nonwoven wastewater treatment device Dissolved Air Flotation
-
Brand:
-
YOSUN
-
Color:
-
Yosun standard or According to customer's requirement
-
Feature:
-
High hydraulic load with skimmer
-
Function:
-
SS removal BOD removal
-
Application:
-
Wastewater Treatment
-
Capacity:
-
5-200m3/h
-
Transport:
-
Shipping by 20'GP, 40'HQ, 40'FQ
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
YOSUN
-
Material:
-
Carbon steel or SUS304, Stainless Steel or Carbon steel
-
Weight:
-
1.5-12000KG
-
Size:
-
more than 1M*1M*2M
-
Power:
-
more than 1.5KW, 1.5-22KW
-
Weight (KG):
-
6000 kg
-
Name:
-
Spunlace nonwoven wastewater treatment device Dissolved Air Flotation
-
Brand:
-
YOSUN
-
Color:
-
Yosun standard or According to customer's requirement
-
Feature:
-
High hydraulic load with skimmer
-
Function:
-
SS removal BOD removal
-
Application:
-
Wastewater Treatment
-
Capacity:
-
5-200m3/h
-
Transport:
-
Shipping by 20'GP, 40'HQ, 40'FQ
|
型号
Model
|
处理量
Capacity (m
3
/h)
|
尺寸 Dimension(mm)
|
|
|
|
|
|
设备重量
Weight (Kg)
|
工作重量
Operating Weight(kg)
|
|||||
|
|
|
L
|
L1
|
L2
|
W
|
W1
|
H
|
|
|
|||||
|
RDAF-002
|
2
|
3180
|
2200
|
400
|
700
|
700
|
1600
|
1300
|
4000
|
|||||
|
RDAF-003
|
3
|
4300
|
3300
|
500
|
800
|
700
|
1900
|
1500
|
5000
|
|||||
|
RDAF-005
|
5
|
4500
|
3500
|
500
|
1000
|
700
|
1960
|
1600
|
7000
|
|||||
|
RDAF-010
|
10
|
5600
|
4500
|
500
|
1200
|
700
|
1960
|
2000
|
12000
|
|||||
|
RDAF-015
|
15
|
6100
|
5000
|
500
|
1500
|
700
|
1960
|
2200
|
18000
|
|||||
|
RDAF-020
|
20
|
6100
|
5000
|
600
|
1800
|
700
|
1960
|
3000
|
22000
|
|||||
|
RDAF-030
|
30
|
7100
|
6000
|
700
|
2000
|
700
|
2050
|
3800
|
32000
|
|||||
|
RDAF-040
|
40
|
8100
|
7000
|
900
|
2200
|
700
|
2050
|
5000
|
45000
|
|||||
|
RDAF-050
|
50
|
8100
|
7000
|
1000
|
2700
|
700
|
2050
|
5500
|
55000
|
|||||
|
RDAF-060
|
60
|
9100
|
8000
|
1000
|
2800
|
700
|
2050
|
6000
|
66000
|
|||||
|
RDAF-070
|
70
|
10100
|
9000
|
1000
|
3000
|
700
|
2050
|
6800
|
85000
|
|||||
|
RDAF-080
|
80
|
11100
|
10000
|
1200
|
3200
|
700
|
2050
|
7500
|
100000
|
|||||
|
RDAF-090
|
90
|
11600
|
10500
|
1200
|
3200
|
700
|
2050
|
8300
|
105000
|
|||||
|
RDAF-100
|
100
|
11600
|
10500
|
1200
|
3600
|
700
|
2050
|
9000
|
110000
|
|||||
|
型号 Model
|
处理量 Capacity (m
3
/h)
|
管口连接 Piping Connection
|
|
|
|
功率 Power
|
|
|
|
||||||
|
|
|
进水口
Inlet
|
出水口
Outlet
|
排渣口
Sludge
|
放空口
Vent
|
回流泵
Reflux pump
(KW)
|
空压机
Air compressor (KW)
|
刮渣机
Skimmer (KW)
|
搅拌机
Agitator (KW)
|
||||||
|
RDAF-002
|
2
|
DN50
|
DN50
|
DN100
|
DN50
|
0.55
|
0.55
|
0.1
|
0.1
|
||||||
|
RDAF-003
|
3
|
DN50
|
DN50
|
DN100
|
DN50
|
0.75
|
0.55
|
0.1
|
0.1
|
||||||
|
RDAF-005
|
5
|
DN80
|
DN80
|
DN100
|
DN50
|
1.1
|
0.55
|
0.1
|
0.2
|
||||||
|
RDAF-010
|
10
|
DN100
|
DN100
|
DN100
|
DN80
|
1.5
|
0.75
|
0.2
|
0.2
|
||||||
|
RDAF-015
|
15
|
DN125
|
DN100
|
DN150
|
DN80
|
2.2
|
0.75
|
0.2
|
0.4
|
||||||
|
RDAF-020
|
20
|
DN150
|
DN150
|
DN150
|
DN80
|
2.2
|
0.75
|
0.2
|
0.4
|
||||||
|
RDAF-030
|
30
|
DN150
|
DN150
|
DN150
|
DN80
|
3
|
1.5
|
0.2
|
0.4
|
||||||
|
RDAF-040
|
40
|
DN200
|
DN150
|
DN150
|
DN80
|
5.5
|
1.5
|
0.2
|
0.4
|
||||||
|
RDAF-050
|
50
|
DN200
|
DN150
|
DN150
|
DN80
|
7.5
|
1.5
|
0.4
|
0.4
|
||||||
|
RDAF-060
|
60
|
DN250
|
DN200
|
DN150
|
DN80
|
7.5
|
1.5
|
0.4
|
0.4
|
||||||
|
RDAF-070
|
70
|
DN250
|
DN200
|
DN150
|
DN80
|
11
|
1.5
|
0.4
|
0.75
|
||||||
|
RDAF-080
|
80
|
DN250
|
DN250
|
DN150
|
DN100
|
11
|
1.5
|
0.4
|
0.75
|
||||||
|
RDAF-090
|
90
|
DN250
|
DN250
|
DN150
|
DN100
|
11
|
1.5
|
0.4
|
0.75
|
||||||
|
RDAF-100
|
100
|
DN300
|
DN250
|
DN150
|
DN100
|
15
|
2.2
|
0.4
|
0.75
|
||||||
Dissolved Air Flotation Outline Drawing
|
a. Raw water inlet pipe
|
d3.Separate area vent pipe
|
4. Chemical reaction tank
|
|
b. Clean water outlet pipe
|
1. Air dissolving system
|
5. Micro-bubble releaser
|
|
c. Foam discharge pipe
|
2. Main Tank
|
6. Skimmer system
|
|
d1.Reaction area vent pipe
|
3. Electric control cabinet
|
7. Returning line
|
|
d2.Vent tube in contact area
|
|
|
Dissolved Air Flotation
Dissolved air flotation is a solid liquid separator that many bubbles in DAFcontact with the solids making their density lower than the water and then they will float up to the surface so that suspended solids of water including oil&grease without dissolving in water can be reduced. DAF can be used in pretreatment, water reuse, deep treatment, phosphorus removal from tail water etc., which is the critical equipment to reduce the ss, cod, bod and total phosphorus etc.
Product Advantages
① The particle size of microbubbles is 10-30um, and the residence time in water is longer.
② Surface load up to 10-30m
3
/(m
2
· h) compact style to save the space.
③ Gas-water mixing efficiency is higher than 95%.
④ Complete system and easy to install.
⑤ High integration, efficient and simple operation.
⑥ Intelligent air suction, more energy saving equipment.
⑦ Top - in release, realizing non-stop maintenance.
⑧ Adjustable liquid level system and slag scraping system can control the moisture content of scum.
⑨ Professional supporting design and suggestions.
R&D TEAM
Yosun has 5 R&D and design engineers with 3~12 years of
design and development
experience with strong R&D capabilities.
Our products are exported to more than 30 countries and regions around the world, and are used in various fields such as municipal, chemical industry, paper making, new energy, pharmacy, landscape. Except that, At home and abroad, we cooperate with design companies, research and development institutions, universities and users in the field of environmental protection through different cooperation models like sales, leasing, agency, custody operation etc.
Q: What is the capacity of the range of DAF dissolved air flotation systems?
A:
The range of DAF dissolved air flotation system is specially designed for industrial applications that usually experience high solid loading. We manufacture standard sizes,most suitable model and dissolved air recycle system to suit specific wastewater characteristics.
Q:
How to choose the right model to get a quote?
A:
According to the amount of wastewater treatment, please select the appropriate model according to our selection table, or contact us directly to obtain the appropriate model and quotation.
Q:
Can the dissolved air flotation system handle variable load and flows?
A:
It depends. In the application without chemicals, DAF dissolved air flotation system can operate under any flow rate and solid load and effectively treat wastewater to achieve its design capability. If chemicals are being dosed,on the contrary, it will adversely affect the chemical process.
Q:
Do I need to dose chemicals into the wastewater?
A:
Dosing of chemicals into the wastewater upstream of the DAF dissolved air flotation system will improve the performance of the system. Whether it is necessary to dose chemicals depends on the water quality that is required.
Q:
How much sludge will the DAF dissolved air flotation system generate?
A:
You can estimate the amount of sludge that will be generated by multiplying the solids load by the daily flow or contact me.
Q:
What is the performance of the DAF dissolved air flotation system in terms of pollutant removal?
A:
The DAF dissolved air flotation system can remove over 99% of solids and grease which will result in quite significant reductions in BOD and COD. Nutrients and metals can also be removed using the DAF dissolved air flotation process.
Q:
Does the DAF dissolved air flotation system require much power?
A:
The power demand for the actual DAF dissolved air flotation system is minimal. You can refer to our selection table or contact us.
Q
:
Can the DAF dissolved air flotation system system handle large solids?
A:
It can, but large solids can cause blockages and increase the chances of sedimentation occurring. We recommend the installation of a 1 -2 mm screen be installed upstream of the DAF dissolved air flotation system.For information on our range of screens, please check our website or contact us.
Q: Is the DAF dissolved air flotation system easy to maintain?
A:
Yes, the system can often be maintained by in-house personnel. The DAF dissolved air flotation system rarely fails, if you need support services pls contact us.
Q: How long is the after-sale warranty period of DAF dissolved air flotation system?
A:
The warranty period is 24 months after acceptance or 26 months from the data of delivery.
