Quick Details
-
Brand Name:
-
PTH
-
Model Number:
-
Steel Structure 01
-
Application Fields:
-
Workshop Plant
-
Certificate:
-
ISO 9001:2008 CE
-
Main structure:
-
H Type column C or Z type purline
-
Roof and Wall:
-
corrugated/EPS/PU/Rock wool/glass wool
-
Door:
-
hang door, sliding door ,rolling shutter
-
Window:
-
Aluminum Alloy
-
ventilating system:
-
clerestory/non-powered turbine
-
Keyword:
-
steel structure work shop
-
Drawing design:
-
customized and free
Quick Details
-
Grade:
-
Q345 Q235 steel
-
Tolerance:
-
±1%
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
PTH
-
Model Number:
-
Steel Structure 01
-
Application Fields:
-
Workshop Plant
-
Certificate:
-
ISO 9001:2008 CE
-
Main structure:
-
H Type column C or Z type purline
-
Roof and Wall:
-
corrugated/EPS/PU/Rock wool/glass wool
-
Door:
-
hang door, sliding door ,rolling shutter
-
Window:
-
Aluminum Alloy
-
ventilating system:
-
clerestory/non-powered turbine
-
Keyword:
-
steel structure work shop
-
Drawing design:
-
customized and free

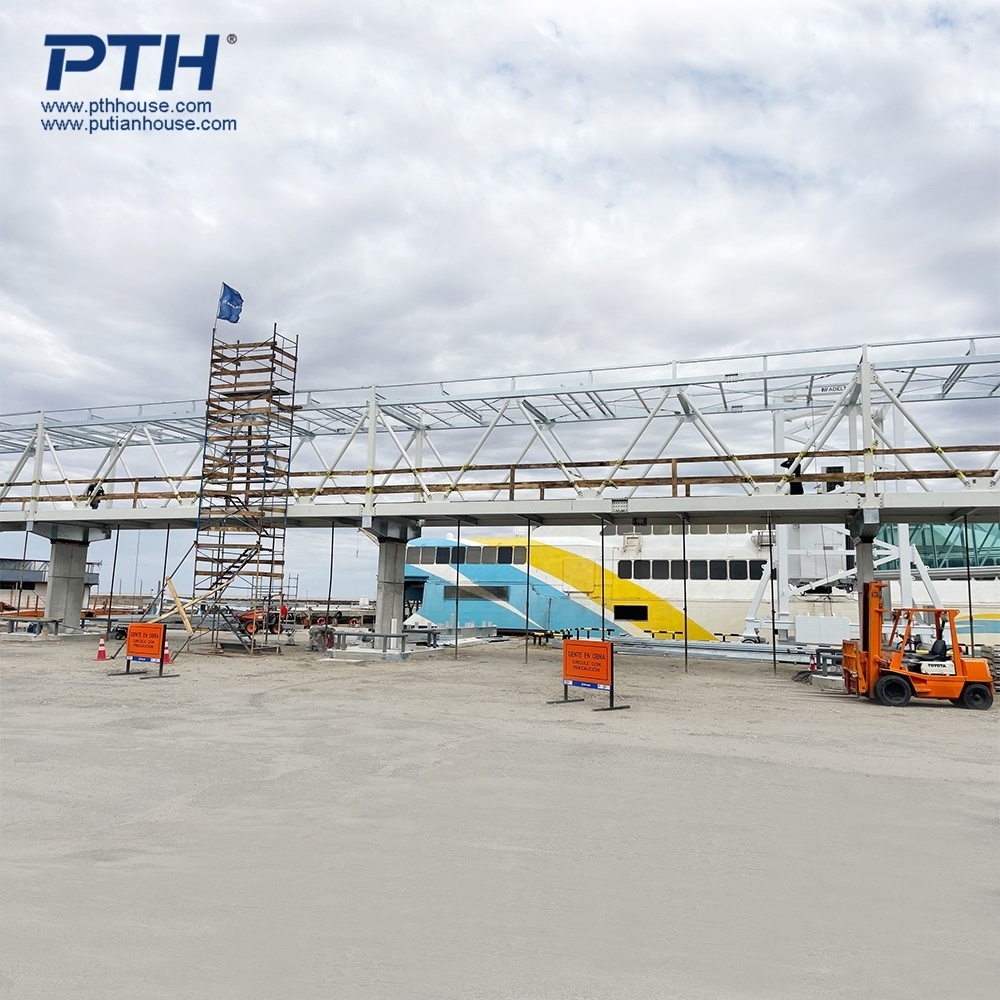

Industrial steel structure building port walkway framework prefab steel structure warehouse
Detailed Photos
Products Description
PTH provides single-story steel structure building and multi-story steel structure building.
Steel structure building is made of heavy steel frame and cladding panels, doors and windows etc. Main Column and rafter are welded H -steel, purlin is steel with galvanization 275g/m2, can be C or Z section. Secondary steel components are L- steel, CHS, SHS, RHS, round steel rod, etc. Most of the steel componnets are connected by bolts.
Options: one floor or multi-floor, crane, skylight, ventilation etc.
Options: one floor or multi-floor, crane, skylight, ventilation etc.
|
Main Structure
|
Column
|
Q355/Q235 H- steel , Box column is also available
|
|
|
Rafter, Beam
|
Q355/Q235 H- steel
|
|
|
Surface processing options
|
1. Epoxy zinc-rich primer + epoxy mica intermediate paint (120μm thickness)
|
|
|
|
2. Hot dip galvanization
|
|
Sub Structure
|
Purlin
|
Q355B, C/Z steel section, galvanization 275g/m2
|
|
|
Angle brace
|
Q235B, L- steel
|
|
|
Cross bracing
|
Q235B round bar, L-steel
|
|
|
Tie bar
|
Q235B, round pipe
|
|
|
Batter brace
|
Q235B, round bar
|
|
Roof System
|
Roof panel options
|
1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
|
|
|
2. Steel plate, thickness 0.4mm/0.5mm/mm
|
|
|
Gutter options
|
1. Galvanized steel gutter, thickness 2.0mm/2.5mm, 3.0mm
|
|
|
|
2. Painted, Pre-finished steel gutter, thickness 0.4mm/0.5mm/0.6mm
|
|
|
Down spout
|
PVC pipe
|
|
|
Steel flashing and cover
|
Steel sheet for roof ridge cap, gable wall end cover and corner cover
|
|
|
Options
|
Roof skylight 1.8mm PVC sheet and stainless steel ventilator
|
|
Wall System
|
Wall panel options
|
1. Insulated sandwich panel, PU, rock wool, glass fiber, EPS. Two sides is steel sheet. Thickness of roof panel 50mm/75mm/100mm,
thickness of steel sheet 0.4mm/0.5mm/0.6mm |
|
|
|
2. Steel plate, thickness 0.4mm/0.5mm/mm
|
|
|
|
3. Brick wall (provided by client)
|
|
|
Door
|
1. Roller door for truck, size customized
|
|
|
|
2. Sliding door for truck, size customized
|
|
|
|
3. Access door, steel door, glass door etc.
|
|
|
Window
|
PVC or Aluminum frame, Fixed, swing, sliding, louver etc, size customized
|
|
|
Steel flashing and cover
|
Steel sheet end cover and corner cover
|
|
Accessories and fasteners
|
|
Anchor bolts, chemical bolts, high strength bolts, ordinary bolts, self-drilling screws, rivet etc.
|
|
Other Options
|
|
Crane 5T, 6T, 10T, 16T, 30T etc.
|
