- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
Brick Mesh 06
-
Brand Name:
-
FuLangSi
-
Product name:
-
Brick Reinforcement Mesh,Brick Mesh
-
Feature:
-
Durable
-
Hole shape:
-
Diamond Hole
-
Surface treatment:
-
Hot Dipped Galvanzied
Quick Details
-
Material:
-
Galvanized Steel Wire
-
Type:
-
Expanded Mesh
-
Application:
-
Protecting Mesh
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
Brick Mesh 06
-
Brand Name:
-
FuLangSi
-
Product name:
-
Brick Reinforcement Mesh,Brick Mesh
-
Feature:
-
Durable
-
Hole shape:
-
Diamond Hole
-
Surface treatment:
-
Hot Dipped Galvanzied
Products Description

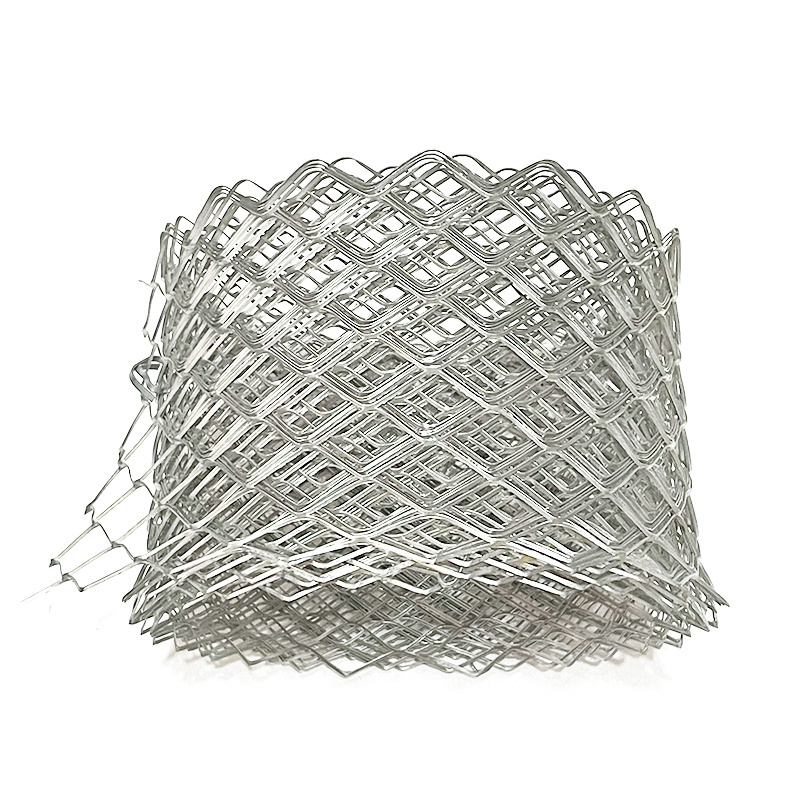

BRICK MESH is an essential reinforcement component for masonry work，to minimise cracks caused by stresses，vibration and thermal movement of brick walls.It is commonly applied in bricklaying and plastering works, especially between brick layers, the junction between brick and concrete, joints between dissimilar materials, and areas along lines of stress.
In order to suit a variety of application needs, we supply a range of different gauges. The galvanised finish provides good corrosion resistance for application in wet areas like brick and plastering works.
|
FINISH
|
THICKNESS (MM)
|
TENSILE STRENGTH
(N/MM2)
|
ELONGATION
(%)
|
ZINC COATING
(G/M2)
|
||||
|
Galvanised
|
0.3
|
350
|
35
|
100
|
||||
|
|
|
|
|
|||||
|
DESCRIPTION
|
WIDTH
|
LENGTH
|
A
|
B
|
|
BPM-65
|
65mm
|
1200mm
|
38mm
|
16mm
|
|
BPM-100
|
100mm
|
1200mm
|
38mm
|
16mm
|
|
BPM-150
|
150mm
|
1200mm
|
38mm
|
16mm
|
|
BPM-200
|
200mm
|
1200mm
|
38mm
|
16mm
|
|
BPM-300
|
300mm
|
1200mm
|
38mm
|
16mm
|
Brick mesh has various styles and types
small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh,expanded copper mesh, expanded stainless steel mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.
|
Specification
|
Strands
|
hole size
|
wide
|
long
|
|
0.4mm thi
|
1.2mm
|
10*25
|
15cm
|
40m
|
|
0.4mm thi
|
1.2mm
|
10*25
|
20cm
|
40m
|
|
0.3mm thi
|
1.8mm
|
14*28
|
10cm
|
10m
|
|
0.3mm thi
|
1.8mm
|
1514*28
|
15cm
|
10m
|
|
0.3mm thi
|
1.8mm
|
14*28
|
17.5cm
|
10m
|
---------------------------------------------------------------------------------
Brick mesh has the following product features:
1.Easy to operate
2.can form an overall construction with great ensile strength
3.the pressure resistance
4.vibration-proof
5.bearing the temperature change
2.can form an overall construction with great ensile strength
3.the pressure resistance
4.vibration-proof
5.bearing the temperature change
Brickwork Reinforcement Mesh / Brick Mesh
The brick reinforcing mesh(Brick Mesh) and the mixed soil have good adhesion and strong tensile strength, which can prevent the cracking and impact of the cement and make the cement wall more stable.
Brickwork Reinforcement Mesh / Brick Mesh
regularity
and easy to install
The brick reinforcing mesh(Brick Mesh)
is easy to handle and when embedded in mortar joints between layers of brick or blockwork, creates a monolithic structure with high tensile strength, helping to resist stress, vibration and thermal changes.
Brick
mesh w
ide range of uses
Brick reinforcement expanded metal mesh has numerousapplications in all types of building where extra strength andstability is required, as in footings and parapets etc., or tolocalised stress areas. Easily incorporated into mortar course,coiled for ease of handing.
