Quick Details
-
Brand Name:
-
MSL
-
Model Number:
-
MSLIS02
-
Product name:
-
Dual Channel Syringe Pump
-
Item:
-
MSLIS02
-
Special function:
-
With medical library
-
Flow Rate Accuracy:
-
Within ±3% (after correct calibration)
-
Mechanical precision:
-
Within ±2%
-
Volume Limit:
-
0.1ml~999.9ml
-
Total Injection Volume:
-
0.1ml~9999.9ml (0.1ml step)
-
KVO rate:
-
1ml/h
-
Fuse:
-
F1AL/250/60V, 2pcs inside
-
IP Classification:
-
IPX1
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MSL
-
Model Number:
-
MSLIS02
-
Product name:
-
Dual Channel Syringe Pump
-
Item:
-
MSLIS02
-
Special function:
-
With medical library
-
Flow Rate Accuracy:
-
Within ±3% (after correct calibration)
-
Mechanical precision:
-
Within ±2%
-
Volume Limit:
-
0.1ml~999.9ml
-
Total Injection Volume:
-
0.1ml~9999.9ml (0.1ml step)
-
KVO rate:
-
1ml/h
-
Fuse:
-
F1AL/250/60V, 2pcs inside
-
IP Classification:
-
IPX1

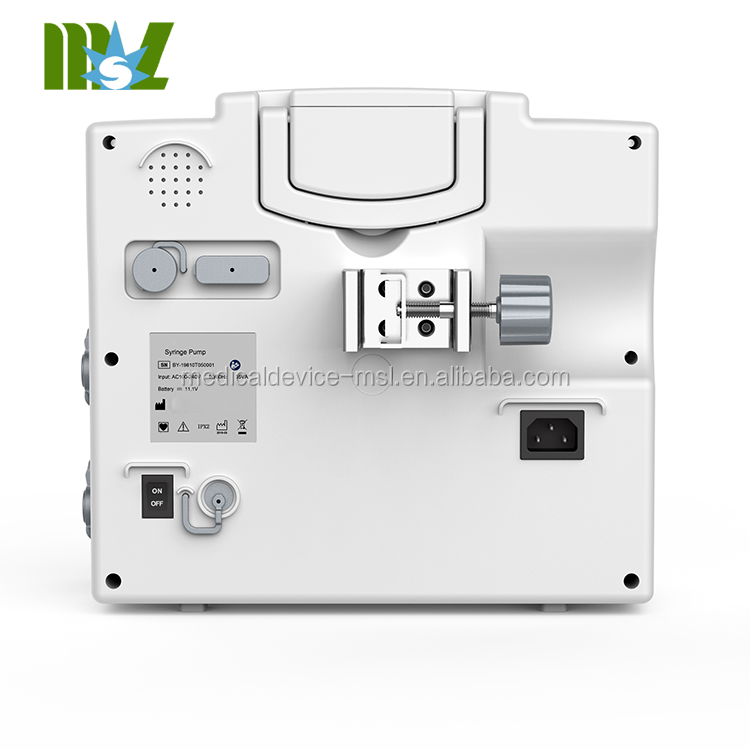

Dual Channel Syringe Pump
MSLIS02
Product Description
with medicine library
A: Thalassemia, Oncology, Critical care, Internal medical, Parkinson, Primary immunodeficiency, Pain management.
Advantages
Features
Technical Parameter
|
Special function
|
With drug library
|
|
Rate
|
50/60ml Syringe: 0.1ml/h～999.9ml/h (0.1ml/h step)
1,000ml/h～1,500ml/h (1ml/h step) 30ml Syringe: 0.1ml/h～900.0ml/h (0.1ml/h step) 20ml Syringe: 0.1ml/h～600.0ml/h (0.1ml/h step) 10ml Syringe: 0.1ml/h～300.0ml/h (0.1ml/h step) |
|
Flow Rate Accuracy
|
Within ±3% (after correct calibration)
|
|
Mechanical precision
|
Within ±2%
|
|
Bolus Rate
|
50/60ml Syringe: 1,200ml/h
30 ml Syringe: 720ml/h 20 ml Syringe: 480ml/h 10 ml Syringe: 240ml/h |
|
Purge Rate
|
50/60ml Syringe: 1,500ml/h
30ml Syringe: 900ml/h 20ml Syringe: 600ml/h 10ml Syringe: 300ml/h |
|
Volume Limit
|
0.1ml～999.9ml
|
|
Total Injection Volume
|
0.1ml～9999.9ml (0.1ml step)
|
|
Occlusion
|
High: 800mmHg ±200mmHg (106.7kPa±26.7kPa
Medium: 50/600mmHg ±100mmHg (66.7kPa±13.3kPa Low: 300mmHg ±100mmHg (40.7kPa±13.3kPa ) |
|
Alarms
|
Injection soon finish, end of injection,occlusion, improperly installation of syringe, wrong setting, low battery, syringe loose
etc. |
|
Power Source
|
AC 100V～240V, 50/60Hz; Internal rechargeable Li battery, capacity≥1,600mAh, 4 hours internal battery backup
|
|
KVO rate
|
1ml/h
|
|
Fuse
|
F1AL/250/60V, 2pcs inside
|
|
Power Consumption
|
30VA
|
|
IP Classification
|
IPX1
|
|
Equipment Classification
|
Class II, internal power supply, Type BF
|
|
Operating Condition
|
Ambient temperature: +5℃～+40℃
|
|
Relative humidity
|
20～90%
|
|
Transport & Storage Condition
|
Ambient temperature: -30℃～+55℃
|
|
Relative humidity
|
≤95%
|
|
Dimension
|
280mm (L) × 210mm (W) × 130mm (H)
|
|
Weight
|
2.2kg (net weight)
|
