Quick Details
-
Place of Origin:
-
Shandong, China
-
Model:
-
KY210BL0705-30
-
Product Name:
-
PMDC Brushless Motor
-
Diameter:
-
210mm
-
Shaft diameter:
-
24mm
-
Motor type:
-
Permanent Magnet bldc Motor
-
Keywords:
-
72v brushless dc motor
-
Weight:
-
17kg
-
Encoder:
-
NO
-
Brake:
-
NO
-
Application:
-
Tracked car,AGV,Electric boat,KPJ,Lawn-mower
Quick Details
-
Speed(RPM):
-
3000rpm
-
Continuous Current(A):
-
87A
-
Efficiency:
-
Ie 3
-
Place of Origin:
-
Shandong, China
-
Model:
-
KY210BL0705-30
-
Product Name:
-
PMDC Brushless Motor
-
Diameter:
-
210mm
-
Shaft diameter:
-
24mm
-
Motor type:
-
Permanent Magnet bldc Motor
-
Keywords:
-
72v brushless dc motor
-
Weight:
-
17kg
-
Encoder:
-
NO
-
Brake:
-
NO
-
Application:
-
Tracked car,AGV,Electric boat,KPJ,Lawn-mower

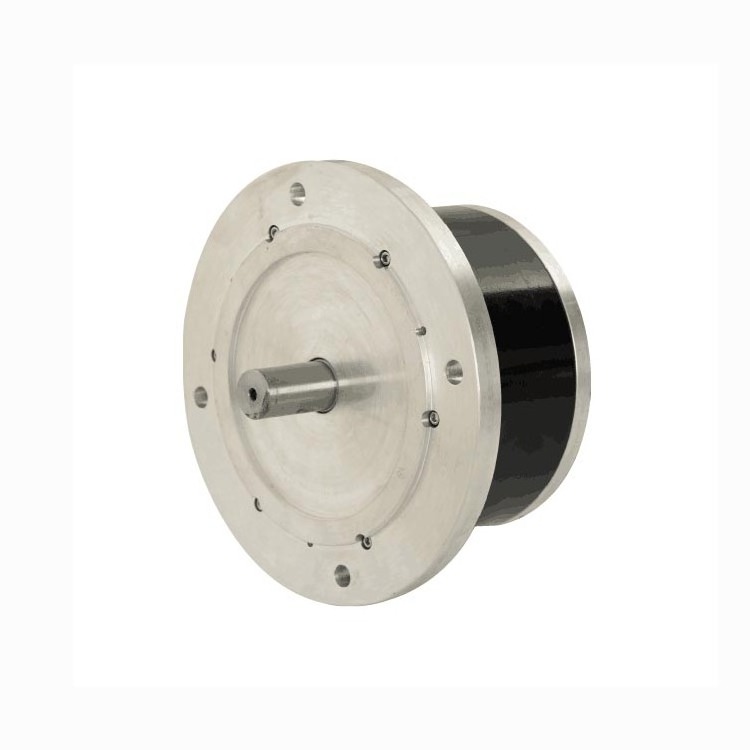

Factory sales 72v brushless dc motor 3000rpm motor 5kw brushless dc motor electric car for Atomizing sprayer,Tracked car,AGV
Model:KY210BL0705-30
1.Product overview:
Axial magnetic field motor is also known as disk permanent magnet motor, axial magnetic field motor’s air gap is planar, The air gap magnetic field along the axial distribution, the motor stator structure is easy to Make core and winding cooling,it can get more heat dissipation area; because of its compact structure (axial size is short), small size, high efficiency, high power density, Good speed control performance. small moment of inertia, high reliability and short magnet circuit and it attracted more and more attention. They are widely used in new energy electric car, renewable energy systems, industrial equipment which require high torque density and compact occasions.
2.Type Description:
Model:KY210BL0404-15B
KY-KEYA for short
210-Frame
BL:DC Brushless BLS:Brushless Servo
04-Rated volt
04-Rated power*1000
15-Rated speed*100
B- with brake
3.Technical Parameter:
| Model | KY210BL0705-30 |
Rated Voltage |
72VDC |
|
Rated Power |
5KW |
Rated Speed |
3000RPM |
|
Rated Torque |
15.9N.m |
Peak Torque |
75N.m |
|
Rated Current |
87A |
Line Resistance |
0.029Ω |
|
Rotor Inductance |
0.26mH |
Torque Constant |
0.241 N.m/A |
|
Roter Inertia |
1.17X10 -2 Kg.m 2 |
Mechanical Time Constant |
5.84ms |
|
EMF constant |
25.3V/Krpm |
Insulation Resistance |
50MΩ |
|
Pole |
4P |
Noise |
65dB |
|
L evel of protection |
IP54 |
Working system |
S2 60min |
|
T emperature classification |
H |
Environmental temperature |
-20 — 60° |
|
T ype of cooling |
natural cooling |
Brake mode |
power off brake |
|
Installation |
vertical mount |
Feedback |
Hall/Encoder |
4. Related Products:
| Model | Rated Voltage | Rated Power | Rated Speed | Rated Torque | Encode | Brake |
|
KY190BL0202-15 |
24VDC | 2KW | 1500RPM | 12.7N.m | NO | NO |
|
KY190BL0202-15B |
24VDC | 2KW | 1500RPM | 12.7N.m | NO | YES |
|
KY190BLS0202-15 |
24VDC | 2KW | 1500RPM | 12.7N.m | YES | NO |
|
KY190BLS0202-15B |
24VDC | 2KW | 1500RPM | 12.7N.m | YES | YES |
|
KY210BL0404-15 |
48VDC | 4KW | 1500RPM | 25.4N.m | NO | NO |
|
KY210BL0404-15B |
48VDC | 4KW | 1500RPM | 25.4N.m | NO | YES |
|
KY210BLS0404-15 |
48VDC | 4KW | 1500RPM | 25.4N.m | YES | NO |
|
KY210BL S 0404-15 B |
48VDC | 4KW | 1500RPM | 25.4N.m | YES | YES |
|
KY210BL0705-30 |
72VDC | 5KW | 3000RPM | 15.9N.m | NO | NO |
|
KY210BL0705-30B |
72VDC | 5KW | 3000RPM | 15.9N.m | NO | YES |
|
KY210BLS0705-30 |
72VDC | 5KW | 3000RPM | 15.9N.m | YES | NO |
|
KY210BLS0705-30B |
72VDC | 5KW | 3000RPM | 15.9N.m | YES | YES |
5. Match product:
6.Outline and Mounting Dimensions in Millimeter:
5kw brushless dc motor electric car
72v brushless dc motor
Factory sales 72v brushless dc motor 3000rpm motor 5kw brushless dc motor electric car for Atomizing sprayer,Tracked car,AGV
We pay high attention to the Motor packaging, adopt polyfoam packing, this series of complete packing enable you receive good products.
3000rpm motor
W e have strong cooperation with DHL,TNT,EMS,China Post. You also can choose your own shipping forwarder.
5kw brushless dc motor electric car
We devote ourself to Research & Development, welcome Costom-made products, if you need some unusual products, let's have further communication.
Q: What are your main products?
A: We produce various kinds of dc motor & controller.
Q: Is there a MOQ for your motor controller?
A: There is no MOQ requirement. But the more the better.
Q: How do you ensure the product quality?
A: We have strict test system in every link of material selection, production and final product, packing according to ISO9001 management.
Q: Is it possible for you to develop new controllers if we provide the tooling cost?
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we'll make our evaluation to see if we can arrange or not.
Q: How soon can you deliver the goods?
A: That depends on the exact model you order. For regular products, usually we will prepare some units in stock, we can deliver them within 3 working days.
