Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
110V 220V 380V 415V
-
Dimension(L*W*H):
-
1765X1265X2560MM
-
Weight (T):
-
5.015 T
-
Model Number:
-
JB23-80
-
Motor Power (kw):
-
5.5 kw
-
name:
-
small electric hydraulic press JB23-80 80 ton machine price
-
Power Source:
-
Pneumatic
-
Nominal pressure:
-
800KN
-
Nominal force stroke:
-
5mm
-
Slider stroke:
-
100mm
-
Worktable dimension:
-
470*750
-
Maximum die set height:
-
300mm
-
Die set height adjustment:
-
60mm
-
Nominal Force (kN):
-
800
Quick Details
-
Machine Type:
-
H Frame Hydraulic Press
-
Slide Stroke (mm):
-
100
-
Return Force (kN):
-
800 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
110V 220V 380V 415V
-
Dimension(L*W*H):
-
1765X1265X2560MM
-
Weight (T):
-
5.015 T
-
Model Number:
-
JB23-80
-
Motor Power (kw):
-
5.5 kw
-
name:
-
small electric hydraulic press JB23-80 80 ton machine price
-
Power Source:
-
Pneumatic
-
Nominal pressure:
-
800KN
-
Nominal force stroke:
-
5mm
-
Slider stroke:
-
100mm
-
Worktable dimension:
-
470*750
-
Maximum die set height:
-
300mm
-
Die set height adjustment:
-
60mm
-
Nominal Force (kN):
-
800

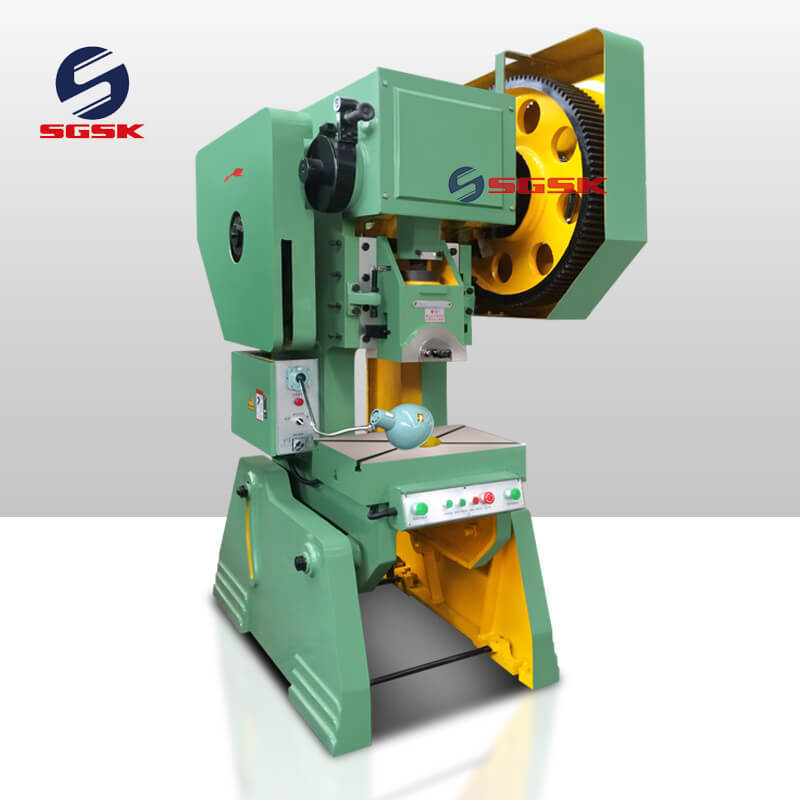

small electric hydraulic press JB23-80 80 ton machine price
Products Description
Details Display
The main performance characteristics：
1, Steel plate welding machine, good rigidity, more stable accuracy.
2, Crankshaft longitudinal, compact structure, beautiful appearance.
3, Electric adjustment of the height of the mould, digital display control height.
4, Rectangular block with a lengthened guide, bronze lining board, high guidance accuracy.
5, Combined pneumatic friction clutch brake, joint stable, action sensitivity.
6, Collapse type safety device, to ensure the safety of the whole machine.
7, Slider is high, there is a lifting type balance cylinder, to achieve the balance of the slider bar.
8, The slider can be moved with a small movement, emergency stop motion, more secure operation.
9, The circuit uses double valve control, the action is nimble, accord with the safety standard of press.
Application ：
1, Suitable for blanking, punching, forming, bending, stretching and other cold stamping process to achieve.
2, Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial areas.
Product main technical specification:
1, Steel plate welding machine, good rigidity, more stable accuracy.
2, Crankshaft longitudinal, compact structure, beautiful appearance.
3, Electric adjustment of the height of the mould, digital display control height.
4, Rectangular block with a lengthened guide, bronze lining board, high guidance accuracy.
5, Combined pneumatic friction clutch brake, joint stable, action sensitivity.
6, Collapse type safety device, to ensure the safety of the whole machine.
7, Slider is high, there is a lifting type balance cylinder, to achieve the balance of the slider bar.
8, The slider can be moved with a small movement, emergency stop motion, more secure operation.
9, The circuit uses double valve control, the action is nimble, accord with the safety standard of press.
Application ：
1, Suitable for blanking, punching, forming, bending, stretching and other cold stamping process to achieve.
2, Widely used in electrical appliances, vehicles, tractors, mining machinery, hardware tools, machinery manufacturing and other industrial areas.
Product main technical specification:
|
Specification
|
|
Units
|
JB23-63
|
JB23-63A
|
JB23-80
|
|
|
Nominal pressure
|
|
KN
|
630
|
630
|
800
|
|
|
Nominal force stroke
|
|
mm
|
4
|
4
|
5
|
|
|
Slider stroke
|
|
mm
|
80
|
80
|
100
|
|
|
Number of slider stroke
|
|
times/min
|
50
|
50
|
50
|
|
|
Maximum die set height
|
|
mm
|
250
|
300
|
300
|
|
|
Die set height adjustment
|
|
mm
|
50
|
50
|
60
|
|
|
Distance from slider center to frame
|
|
mm
|
250
|
250
|
260
|
|
|
Worktable dimension
|
|
mm
|
420x650
|
470x750
|
470x750
|
|
|
Thickness of the worktable panel
|
|
mm
|
70
|
80
|
80
|
|
|
Size of the handle hole (diameter x depth)
|
|
mm
|
φ50x70
|
φ50x70
|
φ60x80
|
|
|
Vertical columns distance
|
|
mm
|
320
|
390
|
300
|
|
|
Main motor
|
Model
|
|
Y132S-4
|
Y132S-4
|
Y132S-4
|
|
|
|
Power
|
KW
|
5.5
|
5.5
|
5.5
|
|
|
Maximum tilting angle of body
|
|
°
|
25
|
25
|
20
|
|
|
Overall dimension(LxWxH)
|
|
mm
|
1740X1100X2560
|
1740X1180X2560
|
1765X1265X2560
|
|
|
Weight
|
|
Kg
|
3800
|
4300
|
5015
|
|
