Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
South Diamond
-
Model Number:
-
diamond grinding wheel
-
Viscosity:
-
Wet
-
Material:
-
Diamond + vitrified bond
-
MOQ:
-
2 PCS
-
Style:
-
diamond Cup wheels
-
Color:
-
Yellow green
-
Dry/Wet:
-
Wet
-
Feature:
-
Sharp Cutting
-
Product Keywords:
-
Carbide Cutter Sharpening Steeling Polishing Diamond Grinding Wheel
Quick Details
-
Application:
-
Aluminum, Deburring, Ferrous Metals, nonferrous metals
-
Shape:
-
Cup-Shaped
-
Size:
-
150mm pcd grinding wheel, 150mm pcd grinding wheel
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
South Diamond
-
Model Number:
-
diamond grinding wheel
-
Viscosity:
-
Wet
-
Material:
-
Diamond + vitrified bond
-
MOQ:
-
2 PCS
-
Style:
-
diamond Cup wheels
-
Color:
-
Yellow green
-
Dry/Wet:
-
Wet
-
Feature:
-
Sharp Cutting
-
Product Keywords:
-
Carbide Cutter Sharpening Steeling Polishing Diamond Grinding Wheel
Details Images
Products Description

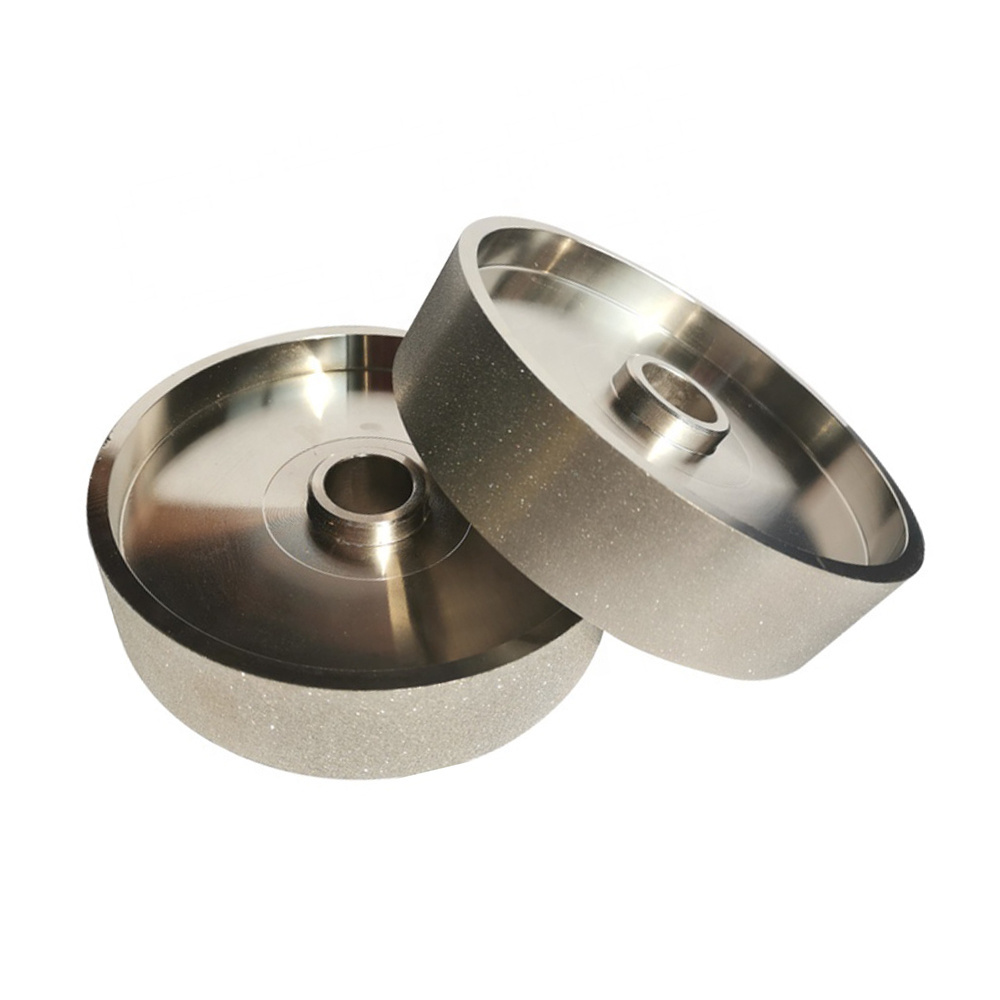

Diamond grinding wheel
The diamond grinding wheel is mostly used in the straight edge machine and the bilateral machine on the market, and the diameter of 150mm is mostly located in the position of the No. 2 machine No. 2 for coarse grinding and medium grinding, and the granularity is selected as 80# or 100#, and the diameter is 130mm. The chamfer is carried out at the position of the No. 4 machine of the No. 3 machine and the granularity is selected to be 180# or 240#.
The bowl-type diamond grinding wheel is mostly used in the beveling machine on the market, and the position is more on the first machine and the second machine. The particle size is mostly 80# or 100#, which is combined with the resin wheel, the 10S wheel, and the wool wheel to achieve the effects of coarse grinding, medium grinding, and polishing.
Resin bond grinding wheels
Resin bond grinding wheels are the most commonly used super abrasive product currently. our resin diamond wheel is suitable for surface grinding, OD grinding, centerless grinding, tool grinding, fine grinding ,double disc grinding and slot grinding of most precision workpieces.
Applications of resin diamond grinding wheel
Resin bond diamond grinding wheel is mainly used for machining tungsten carbide cutting tools, ceramic ,magnetic materials,silicon,glass ,quartz and thermal spraying alloy ,etc
Advantages of resin diamond grinding wheel
* High cutting efficiency, good self-sharpening, less blocking, reducing the grinding burn occurs when the phenomenon of work
* Good flexibility will help to improve the surface roughness, mainly used for rough grinding, semi-fine grinding, polishing andother processes
* Compared to conventional silicon carbide , resin diamond wheel has good material removal rates, longer wheel life and lowergrinding costs
* Resin bond diamond wheels generally remove material up to 10 times faster than metal bond wheels.
Vitrified Bond Diamond and CBN Grinding Wheels
Vitrified Bond Dimond and CBN Griding Wheels mainly used for machining PCD cutting tools, PCBN cutting tools, CVD tools, MCD tools, Milling cutter, Reamer, Carbide cutting tools, Ceramic cutting tools, Drill and Regrinding, Etc.
Main features
1. Sharp cutting
2. High ef fciency
3. Less heat and jam generated in grinding
4. Easy control of the precision
5. Easy dressing
6. Save time
7. Long life
8. Cost ef fective
|
BRAND
|
South Diamond
|
|
PRODUCT NAME
|
edging resin grinding wheel
|
|
DISC TYPE
|
Cup
|
|
ABRASIVE
|
Resin powder＆diamond
|
|
SIZE
|
100/150/175mm*(12/22/50)mm*15mm*10mm
|
|
GRIT
|
180#/240#/320#
|
|
ADHESIVE
|
Polyurethane
|
|
USE
|
Glass processing
|
|
SPEED
|
2800rpm
|
|
WEIGHT
|
1.5kg
|
|
APPLICATION
|
Glass / Marble/Ceramic
|
|
For Machines
|
Bovone, Bottero, Bavelloni, Besana, Adelio Lattuada, Schiatti Angelo, Zafferani Glas, Intermac, etc.
|
|
OEM OR ODM
|
Available
|
|
Delivery time
|
15 days after deposite
|
|
Diamond Grinding wheel
|
|
|
|
|
||||
|
Diameter(mm)
|
Width(mm)
|
High(mm)
|
Hole(mm)
|
Grit#
|
||||
|
Resin bond
|
|
|
|
|
||||
|
150
|
10
|
10
|
31.75/32/40
|
80/100/120/150/180/240/400
|
||||
|
150
|
15
|
10
|
31.75/32/40
|
80/100/120/150/180/240/400
|
||||
|
175
|
15
|
10
|
31.75/32/40
|
80/100/120/150/180/240/400
|
||||
|
Ceramic/vitrified bond
|
|
|
|
|
||||
|
150
|
10
|
10
|
31.75/32/40
|
80/100/120/150/180/240/400
|
||||
|
175
|
15
|
10
|
31.75/32/40
|
80/100/120/150/180/240/400
|
||||
|
Metal bond
|
|
|
|
|
||||
|
150
|
5/10/15/20
|
5/10/15/20
|
31.75/32/40
|
80/100/120/150/180/240/400
|
||||
|
175
|
5/10/15/20
|
5/10/15/20
|
31.75/32/40
|
80/100/120/150/180/240/400
|
||||
|
Resin bond
|
|
|
|
|
||||
|
150
|
5/10/15/20
|
5/10/15/20
|
31.75/32/40
|
80/100/120/150/180/240/400
|
||||
|
175
|
5/10/15/20
|
5/10/15/20
|
31.75/32/40
|
80/100/120/150/180/240/400
|
||||
South Diamond rubber polishing grinding wheels are manufactured by using high-quality diamond powder as the raw material. Precise dimensions, good sharpness, high efficiency, and long working life.
Our glass wheels include full segmented, internal and external segmented, continuous grinding wheels, trapezoidal grinding wheel, 45°degree shape grinding wheel, bowl shape and OG shape grinding wheels, also various other customized shapes and sizes. Normally used for grinding architectural glass, bathroom glass, car glass, etc.
According to the straight line machine, double edging machine, shape edging machine different glass grinding machines, the grinding wheels series is different.
Gemstone cutting blades, widely used in glass, agate, crystal, ivory, jade and other gemstone jewelry, jewelry, crafts processing. It can also be used for the processing of clear seams of the stone
FAQ
Q1. How is your quality?
A1. We have a very seriously control system(ERP system), to ensure that the quality of our products delivery to customer are in good quality.
Q2.What is the Warranty for Diamond Grinding Wheel
A2. For one year from shipment, If any problem with our goods, we will make a prompt response.
Q3. Can you offer the technical supports?
A3. Yes, we have an experienced team, offering our customers additional benefits with specific advice, by our product management staff, engineers and technicians.
Q4. How can we be your agent in our country?
A4. Please inform us of your detailed company, we will discuss and propose a helpful suggestion for you, and find the best solution for you.
Q5. Do you offer free samples of Diamond Grinding Wheel?
A6. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.
Q6. Is there cheap shipping cost to import to our country?
A6. For small order, express will be the best, And for bulk order, sea ship way is best but take longer time. For urgent orders, we suggest via air to the airport or by Express send to your door.
Q7. Which express company do you cooperate? How many days we can receive?
A7. We are an official partner of TNT, it will take only 3-5 days after we sent.
Q8. When you can reply to me when I send you an Inquiry?
A8. We promise to reply within 24 hours( including holidays) on receipt of your inquiry.
