push pull self-latching system
·
Solder, print contacts (straight or elbow)
·
Multiple key options to avoid cross mating of similar connectors
·
Multiple types 2 to 64 contacts
·
360° screening for full EMC shielding
·
High packing density for space saving
·
Watertight connection IP 50
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
medical, Equipment, Testing
-
Color:
-
Silver
-
Material:
-
Shell Material:Brass, chrome plating
-
Series:
-
B series
-
Size:
-
EGG/ECG/EEG/FGG/FNG/FHG/PHG
-
Number of pins:
-
2
-
Shell Material:
-
Brass, chrome plating
-
Pin/Contact Material:
-
Brass, gold plating
-
Mating Model:
-
EGG.0B.302, EEG.0B.302, ECG.0B.302
-
IP Rating:
-
IP50
-
Gender:
-
female connector with male contacts
-
Temperature range:
-
-55°C~+250°C
Quick Details
-
Model Number:
-
BFGG.0B.302.CPARD52Z, FGG
-
Type:
-
Push pull connector
-
Place of Origin:
-
Guangdong, China
-
Application:
-
medical, Equipment, Testing
-
Color:
-
Silver
-
Material:
-
Shell Material:Brass, chrome plating
-
Series:
-
B series
-
Size:
-
EGG/ECG/EEG/FGG/FNG/FHG/PHG
-
Number of pins:
-
2
-
Shell Material:
-
Brass, chrome plating
-
Pin/Contact Material:
-
Brass, gold plating
-
Mating Model:
-
EGG.0B.302, EEG.0B.302, ECG.0B.302
-
IP Rating:
-
IP50
-
Gender:
-
female connector with male contacts
-
Temperature range:
-
-55°C~+250°C
Product Description

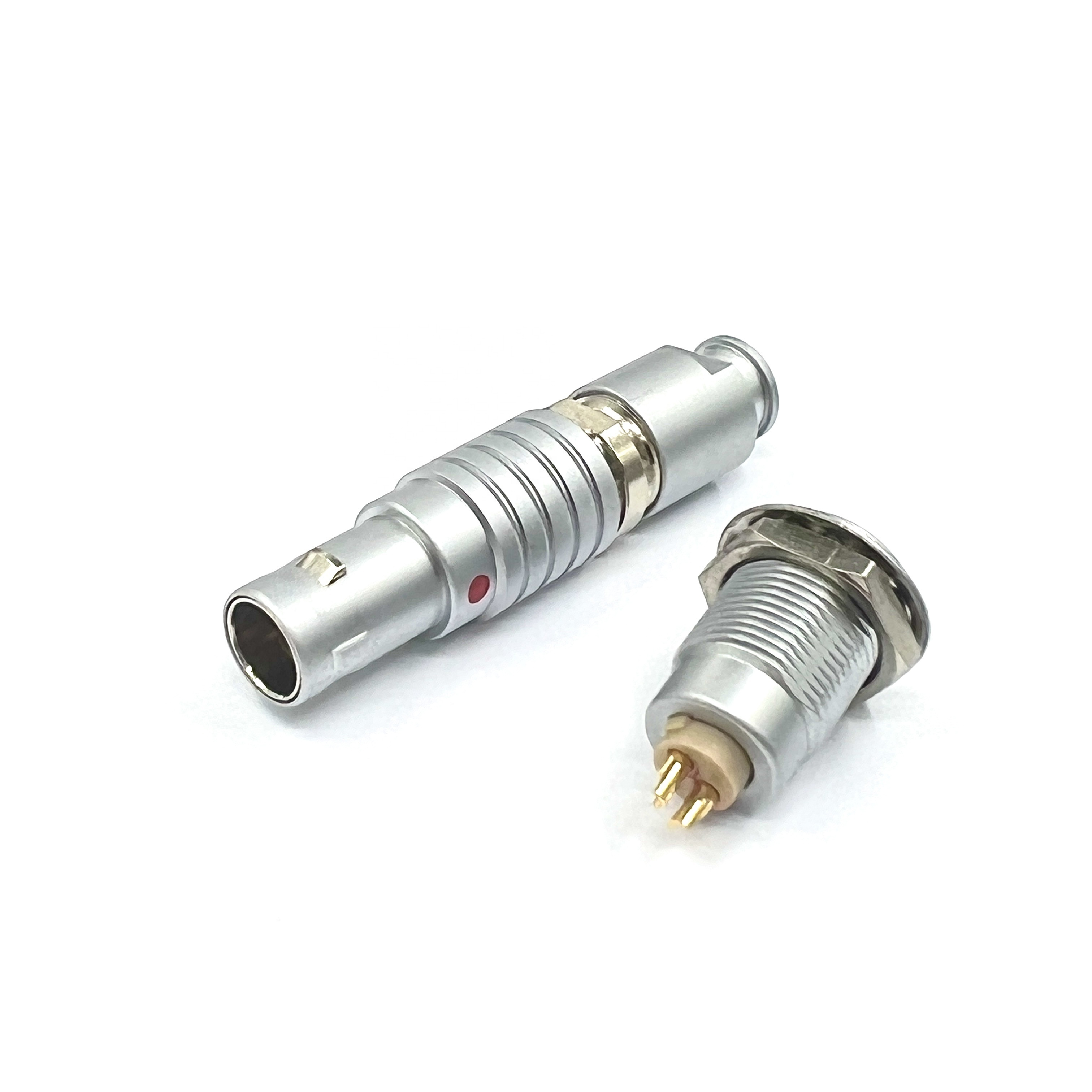

Straight plug, key (single key), cable collet and nut for fitting a bend relief
|
Series
|
B series
|
|
Size
|
size 0
|
|
Model
|
FGG
|
|
Number of pins
|
2
|
|
Shell Material
|
Brass, chrome plating
|
|
Pin/Contact Material
|
Brass, gold plating
|
|
Mating Model
|
EGG.0B.302, EEG.0B.302, ECG.0B.302
|
|
IP Rating
|
IP50
|
Main Features
B series
Sizes and Number of pins for B Series we’ve already produced
|
Sizes
|
Number of pins
|
|
|
|
|||
|
00B
|
2pin, 3pin, 4pin, 5pin
|
|
|
|
|||
|
0B
|
2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 9pin
|
|
|
|
|||
|
1B
|
2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 10pin, 12pin, 14pin, 16pin, 4+2pin (4 big pins, 2 small pins)
|
|
|
|
|||
|
2B
|
2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 10pin, 12pin, 14pin, 16pin, 18pin, 19pin, 26pin, 32pin, 10+1pin, 6+1pin, 8+1pin
|
|
|
|
|||
|
3B
|
2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 10pin,12pin, 14pin, 16pin, 18pin, 19pin, 20pin, 22pin, 24pin, 26pin, 30pin, 8+1pin,6+2pin, 10+1pin, 11+1 pin, 12+1pin
|
|
|
|
|||
|
4B
|
4 pin
|
|
|
|
|||
If you have needs for other size or pin which is not listed above, please contact us, we will reply you whether we can produce it or not.
