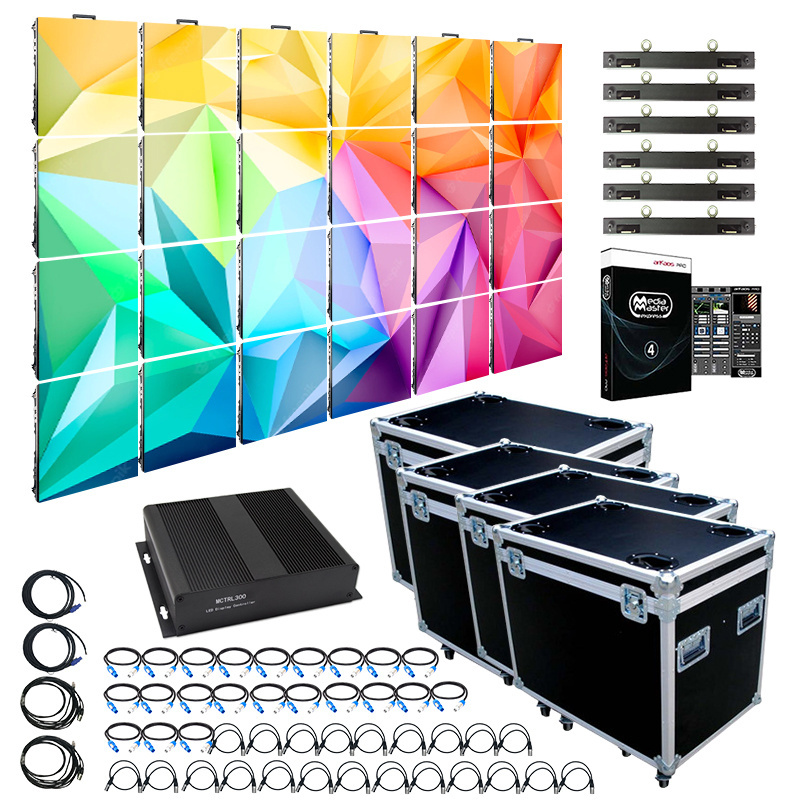

Custom Full Color Indoor Outdoor Digital Signage BillBoard Waterproof Advertising Video Wall Panel Pantalla Led Display Screen

Custom Full Color Indoor Outdoor Digital Signage BillBoard Waterproof Advertising Video Wall Panel Pantalla Led Display Screen

FOB Reference Price: Get Latest Price

≥1 Pieces

US $216

≥100 Pieces

US $189

≥1000 Pieces

US $164

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: full color

Panel Size:: 500x500/500x1000mm, 500x500/500x1000mm

Place of Origin:: GUA

Model Number:: P3.91

Specification:: LED Video Wall

Brightness:: 800-5000nits, 800-5000nits, 900cd/sqm

Color Depth:: 16bit, 16bit

Lifespan (hours):: 100000hours, 100000hours

IP Rating:: waterproof ip65, waterproof ip65

HS Code:: 8528591090

Resolution:: 3840hz

View Angle（H/V）:: 160/160, 160/160

Pixel pitch:: 2.6mm/2.976mm/3.91mm/4.81mm

Cabinet size:: 500x500mm/500x1000mm

Module size:: 250x250mm

Cabinet material:: Die Casting Alunimum

Operating system:: Support Android\Windows System

Warranty:: 3 Years

Certificate:: CE ROHS FCC CB

Keyword:: Stage rental LED display

Quick Details

Application:: Indoor, Outdoor

Type:: LED

Brand Name:: TOALED

Color:: full color

Panel Size:: 500x500/500x1000mm, 500x500/500x1000mm

Place of Origin:: GUA

Model Number:: P3.91

Specification:: LED Video Wall

Brightness:: 800-5000nits, 800-5000nits, 900cd/sqm

Color Depth:: 16bit, 16bit

Lifespan (hours):: 100000hours, 100000hours

IP Rating:: waterproof ip65, waterproof ip65

HS Code:: 8528591090

Resolution:: 3840hz

View Angle（H/V）:: 160/160, 160/160

Pixel pitch:: 2.6mm/2.976mm/3.91mm/4.81mm

Cabinet size:: 500x500mm/500x1000mm

Module size:: 250x250mm

Cabinet material:: Die Casting Alunimum

Operating system:: Support Android\Windows System

Warranty:: 3 Years

Certificate:: CE ROHS FCC CB

Keyword:: Stage rental LED display

Custom Full Color Indoor Outdoor Digital Signage BillBoard Waterproof Advertising Video Wall Panel Pantalla Led Display Screen

Product Description

Your LED Wall Project Flow

LED Wall System Consultation

Talk to our sales about your sparkling ideas, TOALED will provide holistic services from professional solutions and door to door shipping that ensure your project is what you envisioned.

Accessories For Your All

From structural frames, electric cables, signal cables to functions like video playbacks and poster displays. Your project is in safe hands with us.

Support & Service

TOALED does not stop from providing quality LED Wall. We offer 2 years warranty and maintenance at different service levels that help your ideas continue to glow.

TOALED R50 Series is a robust stage touring LED panel that is designed for the high demands of the touring production world. Each tile is modular in design with unique rigging & curving capabilities.

Earning an IP65 Protection Rating, the dust-tight enclosure of the R50 Series works to protect the LED video wall display in outdoor installations.

R50 Series is available in the following pixel pitches: 2.6mm, 2.9mm,3.9mm, 4.8mm, These pixel pitches are also available in an indoor model.

Transport, install and disassemble is much safer thanks to the LED video panel has been covered a PCB anti-collision welding plate.

The R50 Series is designed to meet the requirements of a wide range of applications. Through thoughtful engineering and craftsmanship, the R50 Series features a thin, lightweight, high-strength carbon fiber casing in a modular design to fit a wide range of simple or complex applications.

Power supply protection. When any LED cabinet has a power supply failure, it will get current sharing power supply from other cabinets.

Unique black matte LED lamp bead, more "black" overall, no reflections from all angles, better display effect.

Each tile is modular in design with unique rigging capabilities, offers pixel pitches from 2.6mm – 4.8mm which allow you to create high resolution LED displays for your build.

With two distinct sizes available (1000mm x 500mm and 500mm x 500mm), let R50 Series unlock the creative possibilities.

TOALED R50 Series supports front and rear maintenance at the same time. Faster and easier on-site maintenance, tool free module rear service in 15 seconds. Maintenance for power box in 10 seconds. This “best practice” design provides designers and maintenance crews the most creativity and Ease of Use as possible.

● Stacking Installation
● Hanging Installation
● Mix Seamless Splicing

2-in-1 hanging and ground beam Stacking installation accessories (ground beam, ground beam support, back frame, back frame connector)

We provide holistic services from turnkey LED display solution and door to door shipping to ensure your LED screen project is what you envisioned.

Specification

Pixel Pitch	2.6mm	2.9mm	3.9mm
LED Configuration	SMD1515	SMD1515	SMD1921
Module Size	250*250mm	250*250mm	250*250mm
pixel density	147,456 pixels/m²	112,896 pixels/m²	65,536 pixels/m²
Cabinet resolution (W × H)	192 × 192	168 × 168	128*128
Module resolution (W × H)	96 × 96	84 × 84	64 × 64
gray scale	16 bit	16 bit	16 bit
contrast	4,000 : 1	4,000 : 1	4,000 : 1
Driver IC type	CHIPONE ICN2153	CHIPONE ICN2153	CHIPONE ICN2153
Receiving card type	Novastar Armor A5S plus	Novastar Armor A5S plus	Novastar Armor A5S plus
Panel Weight(kg/cabinet)	8.2	8.2	7.9
Brightness	800CD/m²	800CD/m²	4500CD/m²
Viewing Angle	H: 140°; V:140°	H: 140°; V:140°	H: 140°; V:140°
Refresh Rate	3840HZ	3840HZ	3840HZ
Working Temperature	- 20℃~+50℃	- 20℃~+50℃	- 20℃~+50℃

Our Customer Case

Indoor LED Display P2.5

Pixel Pitch: 2.5mm

Project Area: 42㎡

Application: 2019 South Korea XR film and television shooting

Indoor LED Display P2.5

Pixel Pitch: 2.5mm
Project Area: 42㎡

Application: 2018 Sanya hotel distribution conference

Indoor LED Display P3.076

Pixel Pitch: 3.076mm
Project Area: 50㎡

Application: 2023 Mall Shopping Center.

Indoor LED Display P4.81

Pixel Pitch: 4.81mm
Project Area: 210㎡

Application: The Bamboo Grove Concert.

Outdoor LED Display P6

Pixel Pitch: 6mm

Project Area: 206㎡

Application: 2019 South Korea XR film and television shooting

Outdoor LED Display P10

Pixel Pitch: 10mm

Project Area: 820㎡

Application: 2019 in Malaysia

Just Contact Us For More Information>>

FAQ

1. Why should I choose TOA? -We are a professional manufacturer of smart board whiteboard and LED Display with 10 years experience. 2. If I order a large quantity of products, can your factory capacity support it? Yes, our factory is up to 5,000 units monthly production capacity, we are able to support your needs. 3. What's your product quality? Do you have any guarantee? -Our products have passed CE FCC RoHs CB certification , and the products have passed a series of tests by our engineers, and will be shipped after quality control. 4. What's your MOQ? -No MOQ. Welcome your sample order, the bigger the discount . 5. Do you accept OEM or ODM customization? -Yes, we accept OEM and ODM customization. 1 week for design, 2 weeks for production, 3 days for testing. We have provided many OEM case to our clients and help them successful in their business.
