Quick Details
-
Brand Name:
-
Yuandong
-
Motor Power:
-
8-15kw
-
Charging Capacity:
-
0.30-3.0 cubic meter
-
Reclaiming capacity:
-
0.30 -2.8 cubic meter
-
Speed of Mixing Drum:
-
29-35r/min
-
Water Supply Mode:
-
Automatic water pump
-
Working Cycle Period:
-
Ideal state mixing drum/1min
-
Discharge Way:
-
Reverse Discharge
-
Outline Dimension:
-
2500*1800*2200
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
2500 kg
-
Product name:
-
Mini Concrete Mixer Truck
-
Dimensions:
-
4050*1750*2050mm
-
Tank diameter:
-
1350-2050mm
-
Tank Thickness:
-
4-10mm
-
Effective capacity:
-
2-10m³
-
Drum inclination:
-
16°
-
Loading speed:
-
6m³/min
-
Discharge speed:
-
5m³/min
-
Discharge residual rate:
-
≤0.5%
-
Tank material:
-
Q345B
Quick Details
-
Mixing Power:
-
5.5kw
-
Productivity:
-
2000-3200L/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yuandong
-
Motor Power:
-
8-15kw
-
Charging Capacity:
-
0.30-3.0 cubic meter
-
Reclaiming capacity:
-
0.30 -2.8 cubic meter
-
Speed of Mixing Drum:
-
29-35r/min
-
Water Supply Mode:
-
Automatic water pump
-
Working Cycle Period:
-
Ideal state mixing drum/1min
-
Discharge Way:
-
Reverse Discharge
-
Outline Dimension:
-
2500*1800*2200
-
Marketing Type:
-
New Product 2022
-
Weight (KG):
-
2500 kg
-
Product name:
-
Mini Concrete Mixer Truck
-
Dimensions:
-
4050*1750*2050mm
-
Tank diameter:
-
1350-2050mm
-
Tank Thickness:
-
4-10mm
-
Effective capacity:
-
2-10m³
-
Drum inclination:
-
16°
-
Loading speed:
-
6m³/min
-
Discharge speed:
-
5m³/min
-
Discharge residual rate:
-
≤0.5%
-
Tank material:
-
Q345B

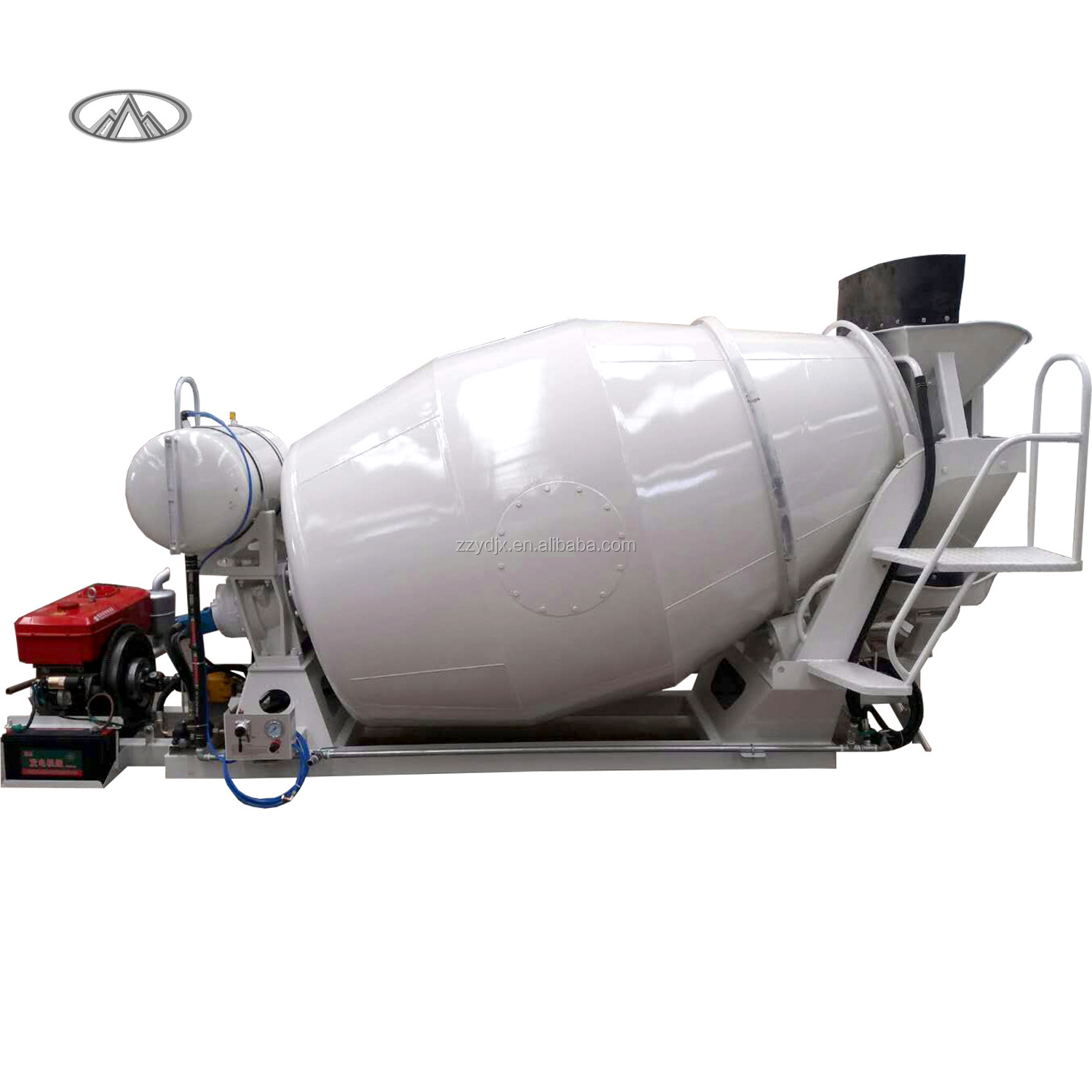

Concrete mixer
truck
(Cement
mixer
truck
) is a special truck used to transport construction concrete; because of its shape, it is often called snail truck. This kind of truck is equipped with cylindrical mixing drum to carry the mixed concrete. During transportation, the mixing drum will always rotate to ensure that the concrete transported will not set. After the concrete is transported, the inside of the mixing drum is usually washed with water to prevent the hardened concrete from occupying the space.
Mixer
truck
composition: Class II chassis, transmission system, hydraulic system, frame, mixing tank, feeding and discharging device, water supply system, control system, ladder and other parts. The front end of the mixing tank is connected with the reducer and installed on the front end of the rack, and the rear end is supported by two supporting wheels installed on the back end of the rack through the roller track.
| Modle | 3 Yard | 4 Yard | 5 Yard | 6 Yard |
| Actual capacity | 2.25m³ | 3.30m³ | 4.24m³ | 5.20m³ |
| Power Type | Truck engine or independent diesel engine | |||
| Degree Of Automation | Fully automatic | Fully automatic | Fully automatic | Fully automatic |
| Speed | 20-25r/min | 18-23r/min | 18-23r/min | 17-22r/min |
|
Installation Dimension
(W*L)
|
780*2750 mm | 760*3300 mm | 760*3600 mm | 800*3950 mm |
The power is output by the full power power power take-off of class II chassis and transmitted to the hydraulic pump through the transmission shaft. The hydraulic energy generated by the hydraulic pump is transmitted to the hydraulic motor through the oil pipe. The hydraulic motor converts the hydraulic energy into kinetic energy and transmits it to the mixing tank through the reducer to reduce the speed and increase the torque. By adjusting the angle of the servo handle of the (dual function variable) hydraulic pump, the forward and reverse rotation of the mixing tank and the speed are realized to achieve concrete loading, mixing, stirring, discharging and other operations.
We adopt wooden and iron box to pack steel rod cutter machine, better guarantee the safety and quality of products.And we adopt multiple port, multiple exit point. Such as Shanghai, Qingdao, Guangdong and other regions. Product transportation will be faster and more convenient.Covered with plastic bag--protect machine from water.Plastic bag covered with strong waterproof bag--double protect machine from water and surface damage.Fix the machine into Iron shelf - prevent from damage.Carton cover onto their on shelf--protect the privacy of clients' goods.
