Quick Details
-
Voltage:
-
380V
-
Power:
-
1.1kw
-
Weight:
-
1600 KG
-
Dimension(L*W*H):
-
3700*1130*1900mm
-
Year:
-
this year
-
Product name:
-
Grapes Pessing Machinery
-
Function:
-
Multifunctional
-
Material:
-
304 Stainless Steel
-
Feature:
-
Easy Operation
-
Advantage:
-
Low Consumption High Efficiency
-
Keywords:
-
Grape Stem Removing and Crushing Machine
-
Application:
-
Root Vegetables
-
Capacity:
-
1500kg/h
-
Color:
-
Client's Requirements
-
Usage:
-
Commercial Usage
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Honest
-
Type:
-
grape crusher destemmer
-
Voltage:
-
380V
-
Power:
-
1.1kw
-
Weight:
-
1600 KG
-
Dimension(L*W*H):
-
3700*1130*1900mm
-
Year:
-
this year
-
Product name:
-
Grapes Pessing Machinery
-
Function:
-
Multifunctional
-
Material:
-
304 Stainless Steel
-
Feature:
-
Easy Operation
-
Advantage:
-
Low Consumption High Efficiency
-
Keywords:
-
Grape Stem Removing and Crushing Machine
-
Application:
-
Root Vegetables
-
Capacity:
-
1500kg/h
-
Color:
-
Client's Requirements
-
Usage:
-
Commercial Usage
High Quality Grape Stem Removing and Crushing Machine / Grape Crusher Electric / Grapes Pessing Machinery

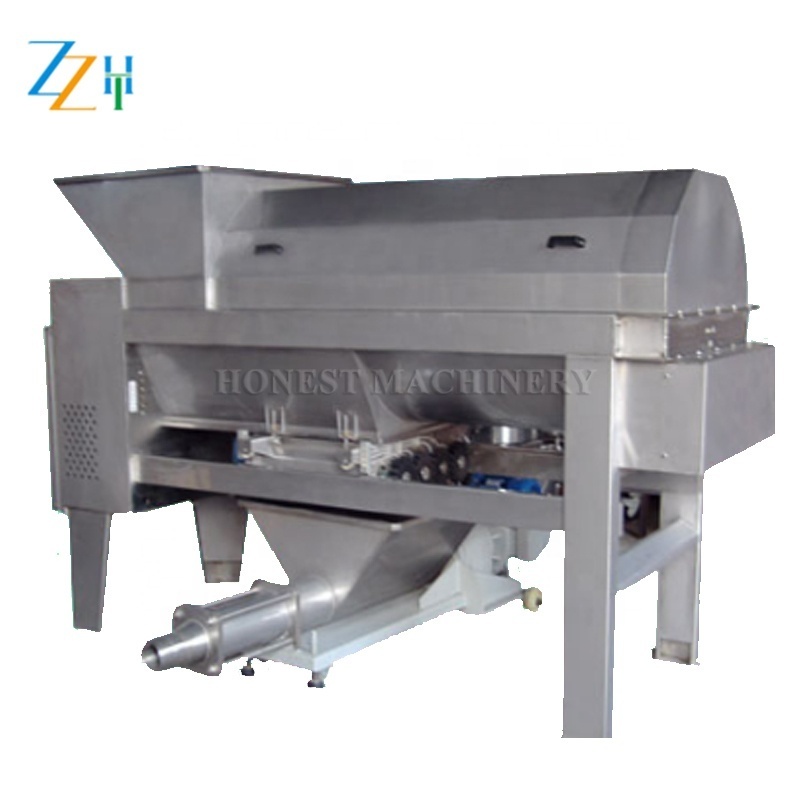

1.Machine introduction of Grape Crusher Destemmer / Grape Stem Remove Machine / Grape Crushing Machine:
1).Grape Destemming and crushing machine is adopted the french,Italy advanced technique and designed special for the drinks industry;
2).working theory:this machine first to remove the stems,then to smash the frapes,mobile single screw pump to convey the mashed fruit;
3).the screw pump can be fixed feeding mashed fruit;
4).the stem removing equipment can adjust the rotary speed according the different grade of grapes;
5).the smashing quipment is easy to operate,the smashing rollers are rubber roller,do not hurt the grapes and cores;
6).the screw pump can convey the mashed fruit height of the 10 meters and level convey of 80 meters;
7).the machine material connect with grapes are made of stainless steel;
8.the size of the screen according the size of the grapes,before order the machine please confirm the max and min size of the grapes.
2.Technical parameters of Grape Crusher Destemmer / Grape Stem Remove Machine / Grape Crushing Machine:
|
Model |
HT-DYTP-1.5 |
HT-DYTP-5 |
HT-DYTP-10 |
HT-DYTP -20 |
HT-DYTP-30 |
HT-DYTP-50 |
|
Output |
1.5-2t/h |
5t/h |
7-10t/h |
15-20t/h |
25-30t/h |
45-50t/h |
|
Stemming Motor |
1.1 kw |
1.5kw |
2.2kw |
3kw |
5.5kw |
7.5kw |
|
Crushing Motor |
0.55kw |
0.75kw |
1.1kw |
1.1kw |
1.5kw |
2.2kw |
|
Dimensions(mm) |
1413*600*1230 |
1840×630× 1350 |
2290×840×1580 |
2340×910×1800 |
3050×1000×1800 |
3700×1130×1900 |
|
Screen size |
20-35mm |
20-35mm |
20-35mm |
20-35mm |
20-35mm |
20-35mm |
|
Pump output size |
90mm |
90mm |
100mm |
100mm |
125mm |
125mm |
|
Weight |
500kg |
578kg |
765kg |
940kg |
1030kg |
1600kg |
|
Breaking roller space |
3-15mm |
3-15mm |
3-15mm |
3-15mm |
3-15mm |
3-15mm |
If you need further information, please contact us freely, we will do our best to cooperate with you.
