Quick Details
-
Brand Name:
-
ZICHEN
-
Model Number:
-
1.8MM
-
Product name:
-
aluminum electric fence wire
-
Elongation:
-
> 10%
-
Strength:
-
> 300 Mpa
-
Size:
-
1.6mm/1.8mm/2.0mm/2.5mm
-
Packing:
-
400m/500m/700m/1000m each plastic spool
-
Feasure:
-
No Rust , good conductivity, low assistant
-
Advantage:
-
Strong tension, easy stall,
-
Application:
-
farm /animal /building security fence
-
Warranty:
-
NO rust,recycle use
-
Certificate:
-
ISO9001 /GS /ROHS/REACH
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZICHEN
-
Model Number:
-
1.8MM
-
Product name:
-
aluminum electric fence wire
-
Elongation:
-
> 10%
-
Strength:
-
> 300 Mpa
-
Size:
-
1.6mm/1.8mm/2.0mm/2.5mm
-
Packing:
-
400m/500m/700m/1000m each plastic spool
-
Feasure:
-
No Rust , good conductivity, low assistant
-
Advantage:
-
Strong tension, easy stall,
-
Application:
-
farm /animal /building security fence
-
Warranty:
-
NO rust,recycle use
-
Certificate:
-
ISO9001 /GS /ROHS/REACH
Product Information
Product Information
|
Product name
|
aluminum electric fence wire
|
||||||
|
Specification
|
1.6mm ( 0.5mm x 7 ALUMINUM WIRE )
|
||||||
|
1.8mm ( 0.57mm x 7 ALUMINUM WIRE )
|
|||||||
|
2.0mm ( 0.67mm x 7 ALUMINUM WIRE )
|
|||||||
|
Wire gauge
|
1.6mm multi
|
||||||
|
1.8mm multi
|
|||||||
|
2.0mm multi
|
|||||||
|
Elongation
|
> 10%
|
||||||
|
Strength
|
> 300 Mpa
|
||||||
|
Packing
|
400m/500m/700m/1000m each plastic spool
|
||||||
|
Certificate
|
ISO9001 /GS /ROHS/REACH
|
||||||
|
Feasure
|
No Rust , good conductivity, low assistant
|
||||||
|
Advantage
|
Strong tension, easy stall, recycle use
|
||||||
|
Application
|
farm fence /animal fence /building fence
|
||||||
Products Description
Products Description
A. Description

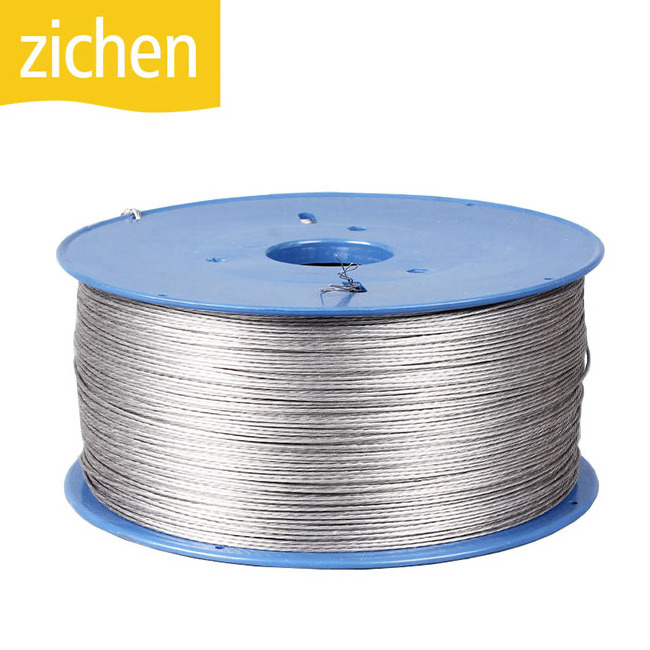

The stranded wires are made of high tensile material making them hard to cut thus increasing the level of security. The flexibility offered by the stranded wire construction makes working with this wire easier during installation and results in a neat clean look on the fence without compromising the fences performance.
ADVANCTAGE : Aluminum alloy wire is the most ideal chose for permanent fencing ,because its is more effective than traditional chain ink ,light weight and install easily ,aluminum alloy wire is easily tightened , spliced , rewound and repaired .
STRANDED WIRE SIZE AS FOLLOWING :
1.6mm stranded wire : 0.5mm x 7 line aluminum alloy wire , 1000m/ spool ,3.65kg /spool , 4 spool / carton .
1.8mm stranded wire : 0.58mm x 7 line aluminum alloy wire , 1000m/ spool , 5.0 kg /spool , 4 spool / carton .
2.0mm stranded wire : 0.67mm x 7 line aluminum alloy wire , 1000m/ spool ,6.56kg /spool , 4 spool / carton .
2.5mm stranded wire : 0.84mm x 7 line aluminum alloy wire , 1000m/ spool ,12.48kg /spool , 2 spool / carton .
Characteristics of aluminum alloy wire : 1: the best choice for permanent fencing in term of costing 2: keep in livestock and pets ( i.e. cows ,goats ,horses) 3: keep out of predators ( i.e. monkey ,foxes ,pigs ) 4: anti oxidant & anti aging performance is better then poly wire 5: light weight and easy to use 6: good conductivity for long distance wiring . 7:long lasting 8:recyclable
B. Welding wire chemical composition (%)
Si Fe Cu Mn Mg Cr Zn Ti Al
ER5356: 0.25 0.40 0.10 0.05-0.20 4.5-5.5 0.05-0.20 0.1 - Balance
C. Packing information
400meter / spool , 500meter /spool , 1000 meter/spool or as customer's requirements
D. Applications: ELECTRICE FENCING WIRE
