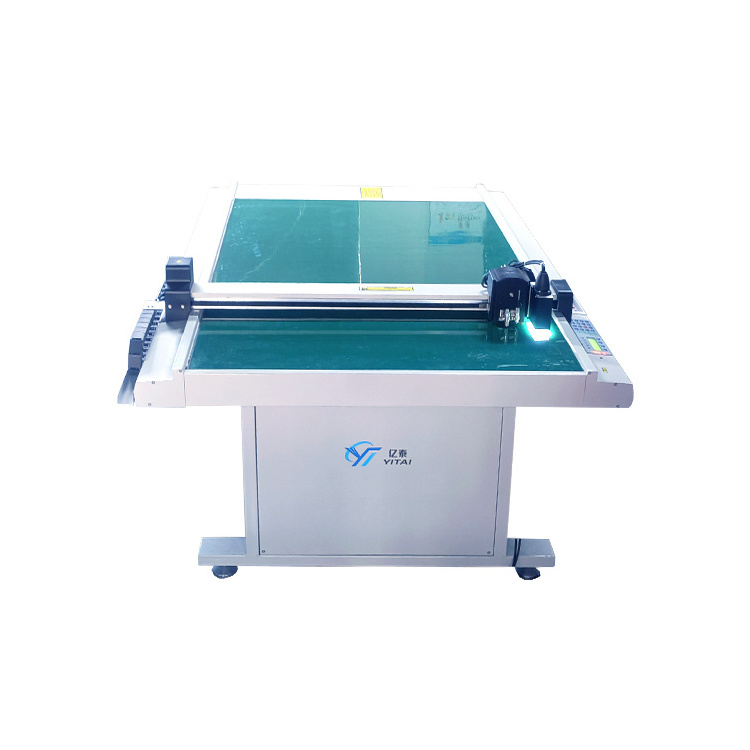

Automatic CNC Box Cutting Machine Cutter Plotter Flat Bed Corrugated Cardboard Carton Digital Sample Cutting Machine

Automatic CNC Box Cutting Machine Cutter Plotter Flat Bed Corrugated Cardboard Carton Digital Sample Cutting Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $4400

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: YITAI

Voltage:: 220V

Dimension(L*W*H):: 1935*1665*1080mm

Weight:: 250 kg

PLC Brand:: YITAI

Product name:: Paper Carton Box Sample Computerized Cutting Plotter Machine

After-sales Service Provided:: Engineers available to service machinery overseas

Max cutting thickness:: 0.5~2mm

Power:: 1.5KW

Certification:: ISO9001:2001

Data port:: Parallel port, Serial port, USB port

Cutting precision:: 0.05MM

Quick Details

Type:: Paper Cutting Machine

Production Capacity:: 60 m/min

Max. workable width:: 1200mm

Place of Origin:: Jiangsu, China

Brand Name:: YITAI

Voltage:: 220V

Dimension(L*W*H):: 1935*1665*1080mm

Weight:: 250 kg

PLC Brand:: YITAI

Product name:: Paper Carton Box Sample Computerized Cutting Plotter Machine

After-sales Service Provided:: Engineers available to service machinery overseas

Max cutting thickness:: 0.5~2mm

Power:: 1.5KW

Certification:: ISO9001:2001

Data port:: Parallel port, Serial port, USB port

Cutting precision:: 0.05MM

Automatic CNC Box Cutting Machine Cutter Plotter Flat Bed Corrugated Cardboard Carton Digital Sample Cutting Machine

Technical Parameter

Machine model	GSC0906	GSC1209	GSC1512
Effective cutting range	900x600mm	1200x900mm	1500x1200mm
Material fixing method	Vacuum adsorption
Transmission material	Imported steel strip
Cutting material	Red cardboard，plastic board, white cardboard, kraft paper, thin PVC
Cutting method	Pen painting, half knife, full knife
Cutting thickness	0.5-2mm
Cutting accuracy	0.05mm
Machine resolution	0.025mm
Maximum speed	1000mm/s
Working time and characteristics	Continuous operation, computer operation and cutting at the same time, fast data transmission at one time
Transport port	International Standard: Parallel / Serial
Buffer capacity	Large-capacity buffer can complete data fast transmission at one time
Instruction system	International standards:HF-GL/DH-PL
CNC panel	LCD, full Chinese operation menu, contact button
Knife type	Special steel blade
Pen type	Ordinary signature pen, oily pen, ballpoint pen
working voltage	AC 220V
fuse value	5A
Floor size	1335x1065*1080mm	1635x1365*1080mm	1935x1665x1080mm

Application

Feature

Digital die cutting machine/Flatbed die cutting machine can be well applied to the cutting of pre-printed Paper sheets, PVC board and cardboard. The laser light positioning function can match the pre-printed marking points on the printed matter to achieve precise positioning and cutting.

This model has the advantages of high positioning accuracy and easy operation. It can not only save a large number of knife mold costs, but also can be easily modified, and the sample can be produced quickly. Depending on the cutting material and application industry, it can also be called carton proofing machine, plastic box proofing machine, proofing machine, advertising cutting machine, etc.

Applicated materials : Paper sheets, corrugated board, Cardboard, PVC / PET film, stickers, greeting cards, tags, etc.

Fast speed : a graph can be processed in a few minutes, the machine can work continuously for 24 hours, and can be produced in batches
High accuracy : high strength imported steel belt is used as the transmission belt, and the accuracy can reach+0.08 mm
Improve work efficiency : it can avoid the repeated modification of the cutter die due to the continuous modification of the graphics by customers, and can better guarantee the quality and delivery time
Wide range of applications : one machine can be used for multiple purposes. In addition to drawing, it can cut and sample many kinds of materials, and can provide customers with faster and better supporting services
Simple operation : automatic computer program control machine drawing and cutting, simple operation.The operator can learn CAD in half a day, and can operate
Full servic e: free training until learning. Free warranty for one year, lifelong maintenance
