Quick Details
-
Voltage:
-
customerized
-
Dimension(L*W*H):
-
according to capacity
-
Weight:
-
1000 KG
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Soybean Oil production line & Edible Oil Refinery Plant
-
input:
-
crude Soybean oil
-
Function:
-
Making Edible soybean Oil
-
Capacity:
-
5TPD-2000TPD Soybean Oil production line & Edible Oil Refinery Plant
-
warranty:
-
1 year
-
Advantage:
-
automatic, simple operation
-
packing:
-
double layer packing plus wood package
-
payment terms:
-
T/T, LC, D/P,D/A
-
Certification:
-
CE ISO
Quick Details
-
Production Capacity:
-
2TPD-2000TPD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GASHILI
-
Voltage:
-
customerized
-
Dimension(L*W*H):
-
according to capacity
-
Weight:
-
1000 KG
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Soybean Oil production line & Edible Oil Refinery Plant
-
input:
-
crude Soybean oil
-
Function:
-
Making Edible soybean Oil
-
Capacity:
-
5TPD-2000TPD Soybean Oil production line & Edible Oil Refinery Plant
-
warranty:
-
1 year
-
Advantage:
-
automatic, simple operation
-
packing:
-
double layer packing plus wood package
-
payment terms:
-
T/T, LC, D/P,D/A
-
Certification:
-
CE ISO
How we know Each Other:
O ur contacts and friendship origin from one inquiry about 5TPD-2000TPD Soybean Oil production line & Edible Oil Refinery Plant / Soybean Oil plant / Edible Oil Production Line , but they are attracted by our company strong power and our service:
Strong power:
1.Our factory Volume: 106,450m2 factory.
2. Strong Engineering Team:
A bout 100 engineers for installation and commissioning for oil processing line out of China
A nother 100 engineers for develop and design production for our customers.
W e have professional palm oil research center about 20 engineers.
3. 35 Years Experience:
4. M ore than 100 pcs of 5-500TPD running plant in more than 50 countries for different raw material.
5. Good after-sales service: Our engineer will come to customer's local places for installation, commissioning and training. guarantee time is for 1 year. within one guarantee year, we will send spare parts for free and engineer is available for free. after one year, spare parts we need to charge.
5TPD-2000TPD Soybean Oil production line & Edible Oil Refinery Plant / Soybean Oil plant / Edible Oil Production Line divided into 3 parts:
soybean oil pre-trement, soybean oil solvent extraction, and soybean oil refinery system:

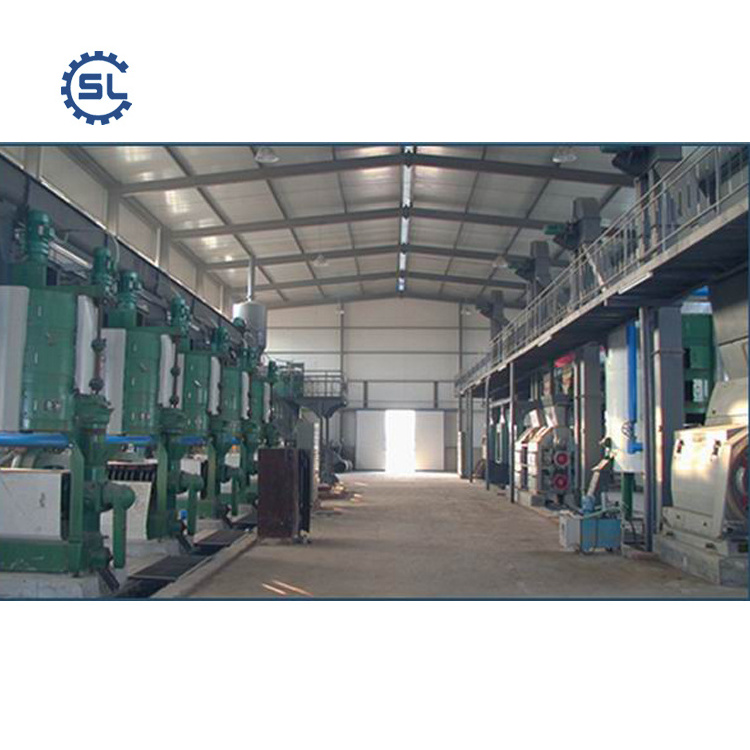

1. Soybean oil pretreatment workshop for 5TPD-2000TPD Soybean Oil production line & Edible Oil Refinery Plant / Soybean Oil plant / Edible Oil Production Line
1) Weighing: Soybean is firstly stored in buffer tank which is for adjusting the soybean flow. By means of weighter the processed Soybean is weighted and the imputing quantity is accumulated.
2) leaning and Impurities separating: By means of Vibrating Sieve the larger and smaller size impurities in Soybean are removed out.
3) Gravity De-stoner & Magnetic Separating: some impurities which are as almost same size as Soybean are still mixed in Soybean, but as their gravity or nature properties are different, by means of Gravity De-stoner and Magnetic Separator , the heavy stone and ferric impurities are separated out from Soybean.
4) Crushing & De-hulling: In order to increase protein content in Soya Meal, the de-hulling process is very significant. De-hulling system is composed of Cracking by two Crushing Mill which breaks Soybean into small pieces, and twice separating by Aspirators which separates Soy Hull out from Soya Meal.
5) Flaking: Flaking Machine is adopted for flaking Soya Meat into thin Flake, during which Soybean cell tissue is destroyed.
6) Expanding: The Soya Flake is fed into Expander in which heat is produced with the functions of kneading, friction between the spiral shaft and inner wall of the Expander, meanwhile eject in steam to increase Soya Flake temperature.
7) Drying & Cooling: Jetting out from the end of expander, the Soya Cake is very moist and hot , it should be dried at moisture content 9.5% or so, and cooled down to about 60°C by counter-current-wise down in Cooling Dryer, and then the dried Soya Cake is conveyed into Extraction workshop.
2. Soybean oil Solvent extraction workshop for Soybean oil mill project cost and soybean oil project manufacturing process
1) Oil Extraction system: for extracting oil from Expanded Soya Cake to get Miscella which is mixture of Oil and Hexane; Wet Meal Desolventizing System: for removing Solvent from Wet Meal as well as to toast and dry Soya Meal for getting proper finished Meal Product qualified for animal feed;
2) Miscella Evaporation System: for evaporating and separating Hexane out from Miscella under negative pressure;
3) Oil Stripping System: for thoroughly removing residual Solvent to produce standard Crude Oil;
Solvent Condensing System: for recovering and circulating use of Hexane;
4) Paraffin Oil Recovering System: further recovering residual Hexane gas remains in vent air by means of Paraffin Oil to reduce expected for ordinary oil plants.
Soybean oil refining workshop for 5TPD-2000TPD Soybean Oil production line & Edible Oil Refinery Plant / Soybean Oil plant / Edible Oil Production Line
1) Hydrating & Degumming: The Crude Oil firstly is filtered by Filters for removing out mechanical impurities out from, and then has heat-exchange in Heat Exchanger with hot Refined Oil, next is heated by Heater to the appropriate temperature. After being mixed with hot water by Mixer , it is pumped into Hydrating Reactor in which most phospholipids will be hydrated into flocculent Lecithin Gum.
2) Neutralizing & Degumming: Adding in appropriate Lye by Dosing Pump and mixing them by Mixer , the oil is pumped into Neutralizing Reactor. in the hydratable phospholipids as well as acid are saponified into Soapstock Gum.
3) Washing: There are residual soapstock still remains in degummed and neutralized oil. Adding Hot Water and mixing with oil by Mixer, the residual soapstock will be solved completely into washing water.
4) Bleaching. The Degummed Oil firstly heat-exchange in Heat Exchanger with hot Refined Oil, next is heated by Heater up to 110°C. And then enters into oil-clay mixer in which it is mixed with Bleaching Clay. next the mixture of oil-clay enters into Bleaching Tower in which the most pigment in oil will be adsorbed by Bleaching Clay.
5) Deacidifying & Deodorizing: The Bleached Oil contains some odouring substance which mostly are free fatty acids. By means of Assorted De-acidifying & Deodorizing Tower, under high temperature and vacuum condition, these free fatty acids will be stripped out from oil. The odouring substances are caught in Fatty Acid Scrubber and collected in Fatty Acid Tank .
