Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
CHYF
-
Model Number:
-
YF-16-11Y
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A
-
Max. Voltage:
-
220V
-
Place of Origin:
-
China
-
Brand Name:
-
CHYF
-
Model Number:
-
YF-16-11Y
-
Certification:
-
CE
|

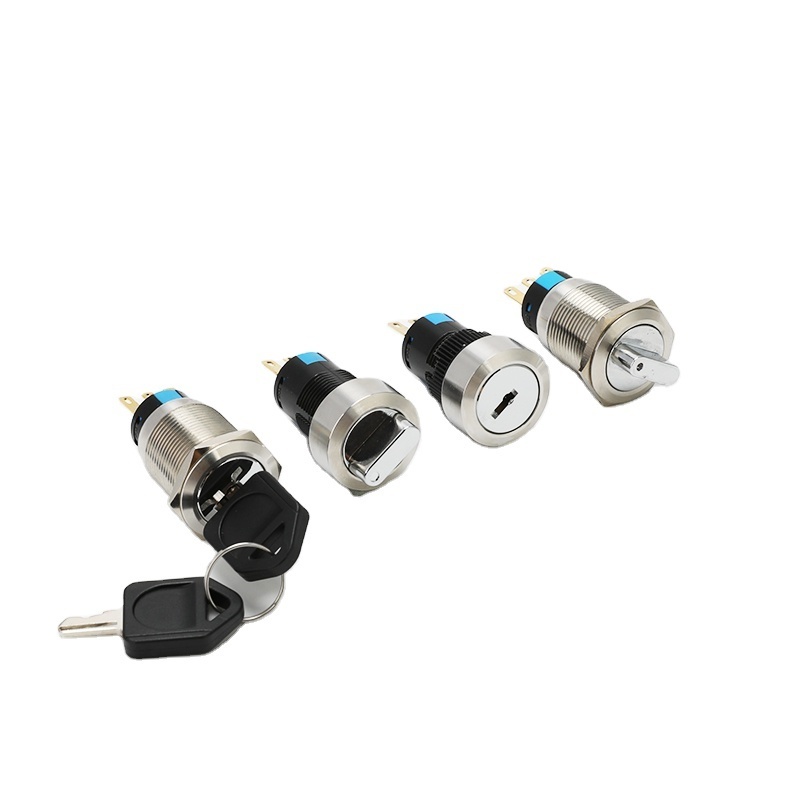

Product name
|
Push Button Switch
|
|
Material
|
Stainless steel/Nickel plated brass/
|
|
Switch rating
|
2A/36VDC
|
|
Terminal type
|
Pin terminal
|
|
Point resistanc
|
Max50MΩ
|
|
Isolation resistance
|
≥1000MΩ
|
|
Isolation intensity
|
1500VAC，50Hz/60Hz
|
|
Operating temperature
|
-25℃~+55℃
|
|
Mechanical life
|
More than 500000 times
|
|
Electrical life
|
More than 100000 times
|
|
Panel thickness
|
1~15mm
|
|
Operating pressure
|
Abou4N
|
|
Operation travel
|
About2mm
|
|
IP degree
|
IP65
|
|
The material of contact
|
Silver alloy
|
|
Led type
|
High brightness LED lamp,cool
|
|
Luminous color
|
Red, Green, Blue, Yellow, White, Orange, Purple
|
|
Rated voltage
|
AC/DC 3V,5V,6V,12V,24,36V,48V,110V,220V
|
|
Rated current
|
≤20 mA
|
