Quick Details
-
Brand Name:
-
LONROY
-
Model Number:
-
Explorer 5000
-
Product name:
-
metal analyzer
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LONROY
-
Model Number:
-
Explorer 5000
-
Product name:
-
metal analyzer

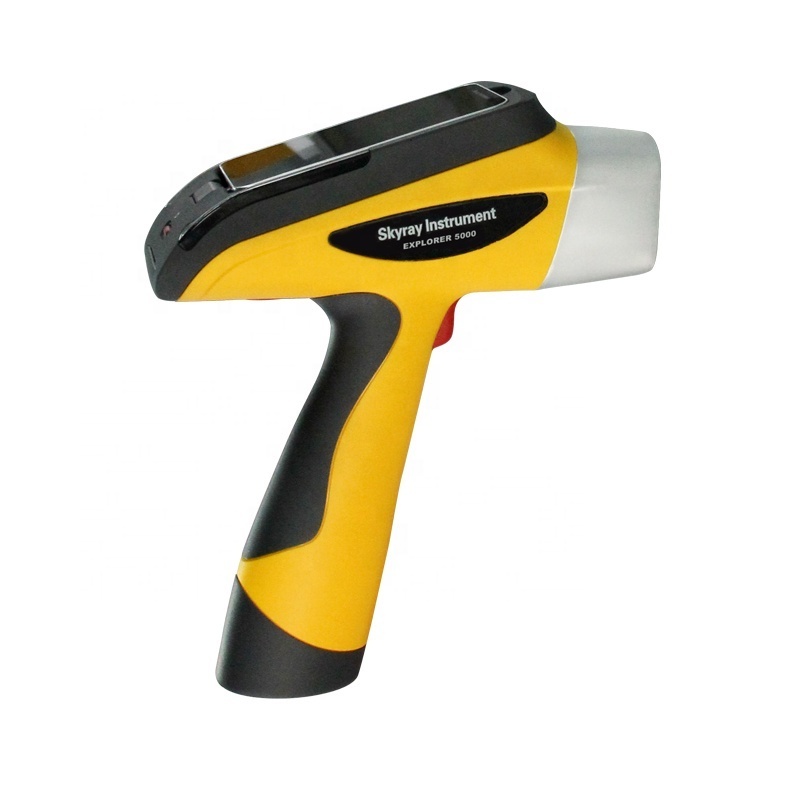

Explorer 5000 High precision xrf precious metal analyzer/portable gold tester
1.Product introduction:
Rapid and accurate on-site analysis of alloy kinds and elements
Based on ten-year research and development experiences of portable instruments,handheld XRF adopt photoelectron, microelectronics, semiconductor, computer and many other technology and develop the new generation of handheld XRF with Independent Property Rights.LR-205 plus handheld alloy analyzer is the first to use large-screen, high-resolution LCD and the new digital signal processor. The minimum detection limits make its performance as great as the desktop. With small size and light weight, LR is portable for testing and suitable for analyzing different kinds of alloy.
2.Application Fields
Precious metal alloy
Iron and steel smelting
Waste metal recycling
Machinery manufacturing and processing
Boiler pressure vessel
Aerospace industry
Shipbuilding
.......
Explorer 5000 High precision xrf precious metal analyzer/portable gold tester
3.Six Advantages
Easier Operating
Better Performance
Stronger Battery
Higher Configuration
Safer Protection
More Intelligent Software
Explorer 5000 can make accurate and nondestructive detection on a variety of precious metal alloys, low alloy steel, stainless steel, tool steel, chrome / molybdenum steel, nickel alloys, cobalt alloys, nickel / cobalt-resistant alloys, titanium, copper alloy, bronze, zinc alloy, tungsten alloy, etc . Knowing the materials composition and alloy kind in one second. Rapid detection on aluminum and magnesium alloy grades is possible and it allows to make reliable identification and confirmation of the material (PMl) and precisely control the materials quality.
Reliable identification of materials
In the process of alloy materials production and machinery manufacturing and processing, elements detection can't work without the identification of materials. Explorer 5000 professional and nondestructive detection can effectively prevent the mix of raw material and avoid unnecessary loss.
Quality control in industrial production
Explorer 5000 professional and nondestructive detection can be used for quality control and management in the manufacturing process of steel smelting, boiler industry and other high-temperature and high-pressure industries to ensure the materials quality; identification of alloy composition in shipbuilding, aerospace and other high-tech industries in order to ensure product quality and safety; identification on the quality of the spare parts in electric power plants and other industries related to people's livelihood to guarantee the equipment safety.
Waste metals recycling and reuse
In waste metal recycling and reuse industry ,Explorer 5000 can make on-site detection and rapid classification of scrap metals; recycle overstocked steel in the warehouse: classify metals in salvage station; recycle the turning scraps and cuttings. lt’s a powerful too l to make metal and steel identification in waste metals recycling industry
| Explorer 5000 High precision xrf precious metal analyzer/portable gold tester |
|
Analytical Method |
Energy dispersive X ray fluorescence analytical Method |
|
Elements Measuring Range |
Atomic number from 12 to 92 [elements from magnesium(Mg) to uranium (U)] can be measured |
|
Simultaneous detector elements |
Simultaneous analysis 40 elements |
|
Microcomputer system |
Customized system; CPU: 1G ; system memory: 1G ; extended stored maximum support 32G : standard 4G for mass storage data |
|
The content range |
PPM - 99.99% |
|
The detection time |
1 - 60 seconds (a second report results) |
|
A built-in system |
GPS,WIFI Bluetooth |
|
Power Supply |
R echargeable lithium bat t ery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh superbattery with wide voltage 110V - 220V universal adapter for recharging power supply |
|
Detection Objective |
Solid, liquid, powder |
|
Detector |
SDD detector or Fast-SDD detector (optional) |
|
Detector resolution |
Minimum can reach 128ev
|
|
The excitation source |
50KV/200uA- silver target end window integrated miniature ray tube and high voltage power supply |
|
Collimator and filter |
Collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions |
|
Video system |
500W pixel high resolution camera |
|
Display screen |
Brand new 5 inch transflective LCD touch screen, the resolution is 1080 x 720 |
|
Detection limit |
The minimum detection limits at 1 - 500 ppm |
|
Safety |
Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards.and has no sample telemetry, automatic shut X light tube function. Standard radiation shields, thickened wall alloy test instrument |
|
Specialty |
Ore special edition analysis software, using intelligent one key tes t |
|
Convenience of application |
Key intelligent matching the best curve that no need to select curve |
|
Data transmission |
Digital multi-channel technology, SPl data transmission, quick analysis, the high count rate; waterproof mini USB, and can be connected with a desktop computer |
|
Operating ambient humidity |
≤ 90% |
|
Operating environmental temperature |
-20 ℃ ~+50 ℃ |
|
Instrument dimension |
244mm ( Length ) x 90mm ( Width ) x 330mm ( Height ) |
|
I nstrument weight |
1.7 Kg |
|
Intelligent warning signals Indicator system |
Green light means power on, red flushing means testing and yellow flushing means the problems |
|
Accessories |
Three-military-protection-box is compression, waterproof and shock absorption. Universal charger and car charger,4GSD memory card and card reader Two lit hium battery and charger, PDA accessories. radiation shield. O ptional accessories: the large battery, seat type test support, Bluetooth printer, mil, manual pressure machine, and other options can to choosen.. . |
