Quick Details
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rolam
-
Dimension(L*W*H):
-
15.7*2.6*2.4M
-
Weight:
-
8000 KG
-
Max sheet size:
-
1650*1650mm
-
Min sheet size:
-
400*400mm
-
Top paper thickness:
-
120-500g
-
Precision for front and back:
-
1mm
-
Air Consumption:
-
0.2m3/min
-
Overall:
-
15.7*2.6*2.4M
-
Glue Application:
-
White glue & Starch glue
-
Bottom paper:
-
Corrugated & Cardboard paper
-
Keyword:
-
Flute Laminating Machine
-
Feature:
-
Servo Motor Control
Quick Details
-
Packaging Type:
-
Cartons, Paperboard
-
Packaging Material:
-
Paper
-
Driven Type:
-
Electric
-
Voltage:
-
380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Rolam
-
Dimension(L*W*H):
-
15.7*2.6*2.4M
-
Weight:
-
8000 KG
-
Max sheet size:
-
1650*1650mm
-
Min sheet size:
-
400*400mm
-
Top paper thickness:
-
120-500g
-
Precision for front and back:
-
1mm
-
Air Consumption:
-
0.2m3/min
-
Overall:
-
15.7*2.6*2.4M
-
Glue Application:
-
White glue & Starch glue
-
Bottom paper:
-
Corrugated & Cardboard paper
-
Keyword:
-
Flute Laminating Machine
-
Feature:
-
Servo Motor Control
Product Description

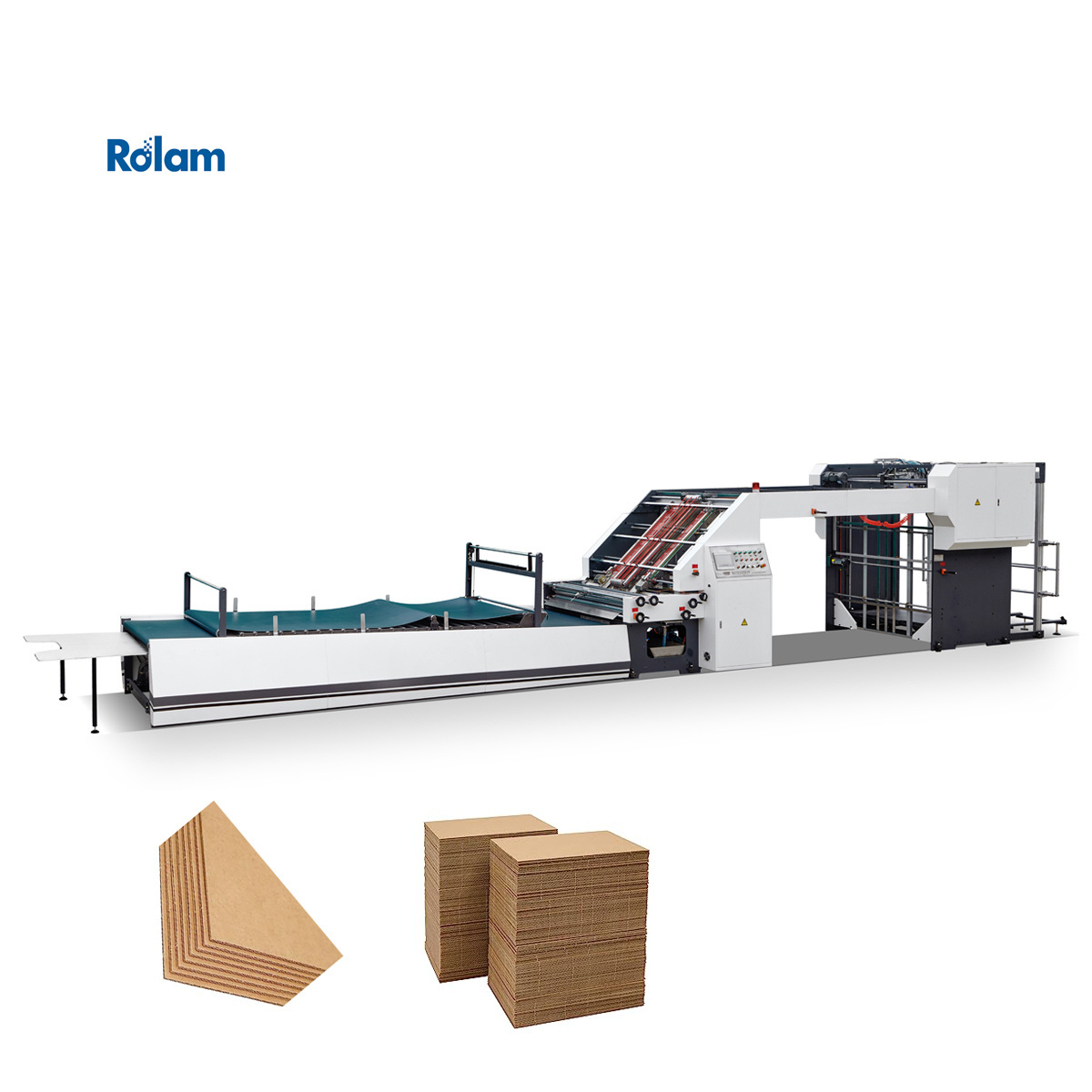

1450/1650H Automatic Servo Control Flute Laminating Machine
·Max Speed 12000p/h
·One-Key Commission 20S Completion
·Cardboard To Corrugated Paper & Cardboard To Cardboard
·Servo Compensation Positioning
·Top Sheet Leet And Right All Course Correction
Samples
Specification
|
model
|
YB-1450H
|
|
Max sheet size
|
1450×1450mm
|
|
Min sheet size
|
400×400mm
|
|
Top paper thickness
|
120-500g
|
|
Precision for front and back
|
±1mm
|
|
Air Consumption
|
0.2m3/min
|
|
Overall
|
15.5×2.4×2.4M
|
|
Machine power
|
22KW
|
|
Glue Application
|
White glue & Starch glue
|
|
Bottom paper
|
A、B、C、E、F Corrugated paper
Four Layers Corrugated paper: AB/BB/BC/EE Cardboard paper is above the 300GSM |
Details Images
1) Top sheet feeding mechanism: equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly
2) Bottom paper feeding: Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller; Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation
3) Positioning System: Using groups of photoelectric sensing bottom paper forward relative position, control top paper on both sides of the servo motor, independent compensation action, the top paper and bottom paper precision laminated
4) Transmission Part : Imported double toothed synchronous belt drive, equipped with a tensioning device to ensure the accuracy of the transmission, stable, low noise
5) Glue roller: Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller.
6) Electrical system: Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance
7) Pre-stack section: pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort.
8) Leading Edge Feeding System: This system is for option, more suitable for large size and thick bottom sheets.
