Quick Details
-
Voltage:
-
380V 50HZ
-
Power:
-
20KW, 20KW/380V/50HZ/3Phases
-
Dimension(L*W*H):
-
14000mmX8000mmX5000mm
-
Weight:
-
13000 kg
-
Inverter:
-
Delta
-
Edge grinding device:
-
Sand wheels
-
Working table:
-
Wrapped with 0.6mm thickness stainless steel
-
Cone mould:
-
#304 stainless steel, vacuum type, 2 parts
-
Indexer used for cone finishing unit:
-
Use 140# Indexer
-
Performance:
-
Long shelf life, Durable
-
Operator:
-
2~3persons/shift
-
working space:
-
14000mmX8000mmX5000mm
Quick Details
-
Production Capacity:
-
48pcs/min
-
Applicable Industries:
-
Paper packaging machinery
-
Place of Origin:
-
China
-
Voltage:
-
380V 50HZ
-
Power:
-
20KW, 20KW/380V/50HZ/3Phases
-
Dimension(L*W*H):
-
14000mmX8000mmX5000mm
-
Weight:
-
13000 kg
-
Inverter:
-
Delta
-
Edge grinding device:
-
Sand wheels
-
Working table:
-
Wrapped with 0.6mm thickness stainless steel
-
Cone mould:
-
#304 stainless steel, vacuum type, 2 parts
-
Indexer used for cone finishing unit:
-
Use 140# Indexer
-
Performance:
-
Long shelf life, Durable
-
Operator:
-
2~3persons/shift
-
working space:
-
14000mmX8000mmX5000mm
Product Description
Brief Description

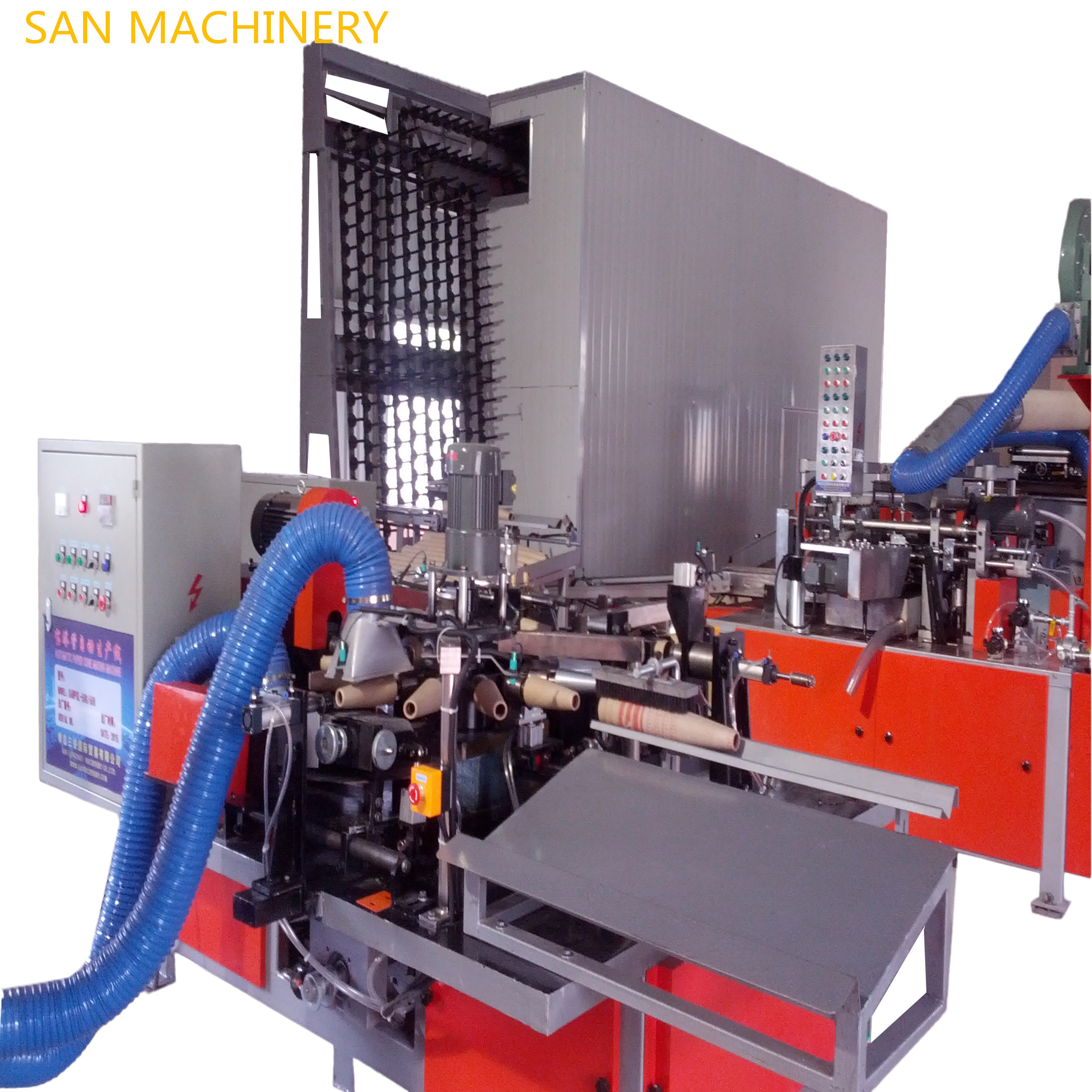

Full Automatic textile cardboard Cones Machine for Paper Cone Manufacturer is a fully auto paper cone production line for textile industry. It is controlled by Delta PLC. It consists of paper cone winding unit, electric heating drying oven, and paper cone finishing unit. The whole paper cone production process is as follows, Jumbo paper reel feeding — Inside and outside printing—Paper edge grinding — paper cutting — paper cone winding & trimming — Paper cone drying — Unfinished products collecting —V-shaped notching — Line pressing — Head curling (Bull nosing) — Grinding — Final products collecting.
Reference Video
https://youtu.be/PlPc1lLfjcQ
https://youtu.be/tnK7dCRmKRE
https://youtu.be/eJpYmfPkfos
https://youtu.be/NEOqpvtOm5I
https://youtu.be/IzAF2NK6Vbc
https://youtu.be/tnK7dCRmKRE
https://youtu.be/eJpYmfPkfos
https://youtu.be/NEOqpvtOm5I
https://youtu.be/IzAF2NK6Vbc
Specification
|
Speed
|
48pcs/min
|
|
Cone size
|
5deg.57’, 4deg.20’ or 3deg.30’ (optional)
|
|
Applicable paper
|
320-450gsm
|
|
Applicable glue
|
white glue
|
|
Compressed air
|
1.2m3/min, 0.8MPa
|
|
Power
|
47KW/380V/50HZ/3Phases
|
|
Operator
|
2~3persons/shift
|
|
Weight
|
~15T
|
|
Needed working space
|
14000mm X 8000mm X 5000mm
|
Details Images
Packing & Delivery
Testing And Packing
♦ We testing every machine before shipment.
♦ The machine will be packed and shipped by container.
♦ The machine will be packed by film in standard.
♦ Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing.
♦ We testing every machine before shipment.
♦ The machine will be packed and shipped by container.
♦ The machine will be packed by film in standard.
♦ Pls note that The client can choose export standard wooden box packing or export standard wooden pallet packing.
Exhibition
FAQ
★About Trade Term
Q-----What’s the trade term for making business with us?
A----- FOB,CFR,CIF; It’s mainly depend on client’s requirement;
★About Delivery Time
Q------What’s the Delivery time after placing order ?
A------Usually it takes about 30 days after we received your deposit. However, it would depend on our production line schedule(the timing clients place order)and the manufacturing process of the item.
★About Payment Term
Q------What’s the Payment Term?
A------ By T/T or L/C.
