Quick Details
-
Brand Name:
-
Bamx
-
Place of Origin:
-
China
-
Model Number:
-

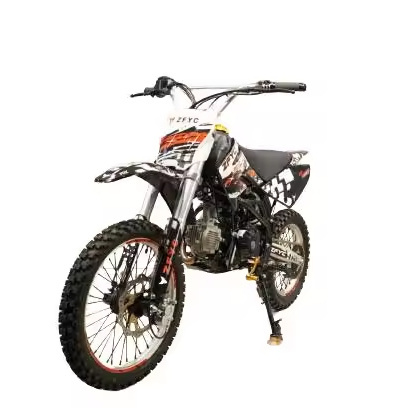

Xiaofei 110cc
-
Engine:
-
110CC Single cylinder Four Stroke
-
Color:
-
Red/Black/Blue/Green/Orange Etc.
-
Brake:
-
Front Disc/Drum brake, Rear Disc/Drum brake
-
Shock Absorber:
-
Invert shock absorber and Mono rear suspension
-
Tyre:
-
Off Road Rubber
Quick Details
-
Displacement:
-
100-200CC
-
Max. Speed:
-
> 80km/h
-
Motor:
-
Other
-
Brand Name:
-
Bamx
-
Place of Origin:
-
China
-
Model Number:
-
Xiaofei 110cc
-
Engine:
-
110CC Single cylinder Four Stroke
-
Color:
-
Red/Black/Blue/Green/Orange Etc.
-
Brake:
-
Front Disc/Drum brake, Rear Disc/Drum brake
-
Shock Absorber:
-
Invert shock absorber and Mono rear suspension
-
Tyre:
-
Off Road Rubber
Product Introduction
Specification
|
ENGINE
|
|
|
|
Engine Type:
|
Single cylinder,air-cooled,four stroke,
|
|
|
Displacement (ml):
|
110CC
|
|
|
Bore X Stroke(mm):
|
65.5×66.2
|
|
|
Compression Ratio:
|
9.25:1
|
|
|
Max. Power (kw/r/min)
|
12/7500
|
|
|
Max. Torque (N.m/r/min):
|
18/5500
|
|
|
Max. Speed (Km/h):
|
≥85
|
|
|
Lubrication:
|
Pressure ,splash
|
|
|
Clutch Type:
|
Multiplate wet clutch, Manual
|
|
|
Ignition:
|
CDI
|
|
|
Starting System:
|
Electric/Kick Start
|
|
|
Transmission System:
|
Chain drive
|
|
|
The left and right steering angle
|
left 39º right 40º
|
|
|
CHASSIS
|
|
|
|
Front Brake:
|
Disc brake
|
|
|
Rear Brake:
|
Disc brake
|
|
|
Front Tire:
|
17
|
|
|
Rear Tire:
|
14
|
|
|
LBattery:
|
Lead acid
|
|
|
DIMENSIONS
|
|
|
|
L X W X H (mm):
|
2000*800*850
|
|
|
Seat Height (mm):
|
850
|
|
|
Wheelbase (mm):
|
1340mm
|
|
|
Min. Ground Clearance(mm):
|
200
|
|
|
Max. Permissionable Weight (kg):
|
165
|
|
|
Rider Capacity:
|
2 Person
|
|
|
Dry. Weigth (kg):
|
65
|
|
|
Engine Oil (L):
|
1L SAE15W/40
|
|
|
Fuel Tank Capacity (L):
|
4
|
|
|
Roll angle (°)
|
10°
|
|
