Quick Details
-
Brick size:
-
400*100*200 mm, 200*100*60 mm, 400*200*200 mm, 225*112.5*60mm
-
Place of Origin:
-
China
-
Brand Name:
-
Qunfeng
-
Dimension(L*W*H):
-
6430*2250*4760mm
-
Marketing Type:
-
Hot Product 2020
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Viet Nam, India, Kenya
-
After-sales Service Provided:
-
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
25600 pcs/8hours
-
Brick size:
-
400*100*200 mm, 200*100*60 mm, 400*200*200 mm, 225*112.5*60mm
-
Place of Origin:
-
China
-
Brand Name:
-
Qunfeng
-
Dimension(L*W*H):
-
6430*2250*4760mm
-
Marketing Type:
-
Hot Product 2020
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Viet Nam, India, Kenya
-
After-sales Service Provided:
-
Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support

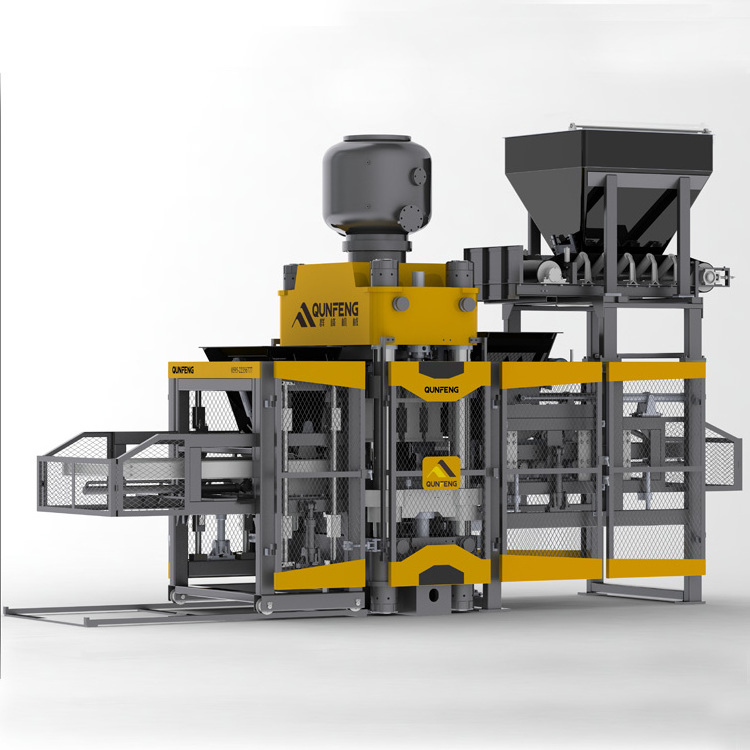

QP800 Automatic hydraulic pressing machine
Adopting servo electro-hydraulic control system, it has features of energy conservation, silent operation and high efficiency.The feeding efficiency is higher by adopting the concealed high frequency micro-vibration and variable frequency feeding system.It can produce high-strength paving bricks with topping color, slope-protect bricks, terrazzo tiles, clay bricks, etc.
Adopting servo electro-hydraulic control system, it has features of energy conservation, silent operation and high efficiency.The feeding efficiency is higher by adopting the concealed high frequency micro-vibration and variable frequency feeding system.It can produce high-strength paving bricks with topping color, slope-protect bricks, terrazzo tiles, clay bricks, etc.
Main technical features
|
|
1, Energy saving: adopt hybrid servo motor that’s 30% more energy-efficient than regular one
2, Accurate material feeding:The feeding cart is able to adjust material metage according to different size of bricks .
3, Low noise, material feeding fast and well-proportioned : adopt servo motor on feeding cart and vibration table light shock , system to fasten the , feeding speed and reduce noise.
Technical data
|
Maximum pressure |
8000KN |
|
|
Dimension(LxWxH) |
6430×2250×4760mm |
|
|
Rated hydraulic pressure |
31.5MPa |
|
|
Static pressing |
adopt feeding vibrating, pressing formation |
|
|
Adaptable block height |
45~150mm |
|
|
pallet size |
1100x950mm |
|
|
cycle time |
18-26 s/pall |
|
|
main machine power |
96.9 kW |
|
|
output |
holland brick(200×100×60mm) |
28pieces |
|
|
solid brick(240×53×115mm) |
39pieces |
