CNAWELD Hot sale CB150 red handle Air Cooled High Frequency Plasma Cutting torch

CNAWELD Hot sale CB150 red handle Air Cooled High Frequency Plasma Cutting torch

FOB Reference Price: Get Latest Price

≥1 Pieces

US $86

≥100 Pieces

US $80

≥200 Pieces

US $73

≥300 Pieces

US $67

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: CNAWELD

Model Number:: CB100

Cooling:: Air cooled

Duty Cycle 60%:: 100A

Air Pressure:: 4.5 - 5.5bar

Gas Flow:: 120 LPM

Ignition:: HF

Cable Assembly:: 6m

Certification:: CE,ISO9001,ROHS

Rear connector:: Nut and Central Adaptor

Quick Details

Type:: CUTTING TORCH

Warranty:: 1 years

Place of Origin:: Jiangsu, China

Brand Name:: CNAWELD

Model Number:: CB100

Cooling:: Air cooled

Duty Cycle 60%:: 100A

Air Pressure:: 4.5 - 5.5bar

Gas Flow:: 120 LPM

Ignition:: HF

Cable Assembly:: 6m

Certification:: CE,ISO9001,ROHS

Rear connector:: Nut and Central Adaptor

Products Description

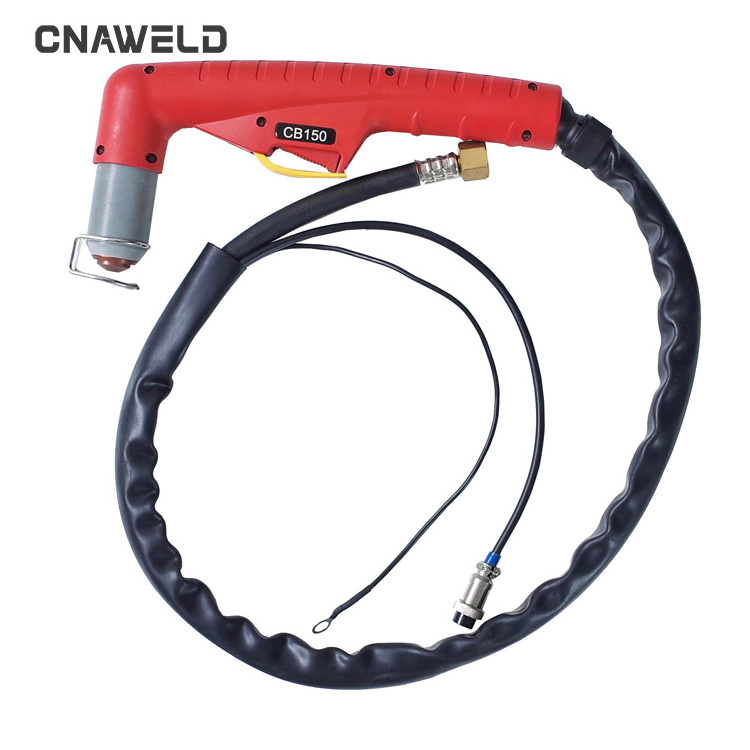

CB150 Air Cooled Plasma Cutting Torch

Professional Air-Cooled CB150 Air Cooled Plasma Cutting Torch .

1. 6m CB150 plasma cutting torch

2. 150A, 60% high duty cycle

3. Supplied with the connector (Nut or Central)

4. Built for precision and accuracy

5. Long service life and big value

We mainly produce:

1) MIG/MAG/CO2: Binzel 15AK/24KD/25AK/26KD/36KD/40KD/401D/501D, Pana 200A/350A/500A, OTC 200A/350A/500A, Bernard 300A/400A, CN-Tweco 2#/3#/4#/5#, CN-Fronius AW4000 /AW5000 / AL2300/ AL3000/ AL4000, Robot automatic welding. Welding torches, nozzle, contact tip, tip holder, swan neck, diffuser, liner, etc.

2) TIG: WP9, WP17, WP26, WP18, WP12, WP20, WP27, SR-208/308, etc. Welding torch,torch head (F/V/FV/P), collet, collet body, gas lens, ceramic nozzle, long/medium/short cap, etc.
3) Air plasma cutting: P80, P160, PT31, SG51, SG55, JG60, JG100,CB50-CB150, A81, A101, A141, S45, S75, PT60, PT80, PT100 etc, compatiable parts for trafimet, HPR,kjellberg, OTC, TD, etc. Plasma cutting torch, torch head, nozzle, electrode, shield cap,ceramic nozzle, swirl ring, etc.
4)Stud welding torch, etc.
5) Cable joint, earth clamp, electrode holder,quick plug,scoket,water quick connector, etc.

CB150 Air Cooled Plasma Cutting Torch
Description	Ref. Number
Handle	TP0402
Starigth Handle	TP0061
Torch Head with handle
Starigth Torch Head	PF0034
Torch Head	PF0080
Torch Head O-Ring	EA0131
Insulate Ring / Stand off guide / Spring Spacer	CV0011
Stand off guide 导向轮	CV0021
Stand off guide 外保护罩	CV0008
Stand off guide 外保护罩接触式	CV0009
Stand off guide 两点支架	CV0012
Stand off guide 圆形保护罩	CV0013
Stand off guide 接触式保护罩	CV0038
Shield Cup long life	PC0034
Shield Cup	PC0002
Nozzle Tip 60A	PD0026-11
Nozzle Tip 100A	PD0026-13
Nozzle Tip 130A	PD0026-16
Nozzle Tip 150A	PD0026-18
Nozzle Tip / Plasma Tip	PD0026-24
Nozzle Tip / Plasma Tip	PD0026-30
Electrode	PR0034
Diffuser / Swirl Ring	PE0009
Neck Insulator
Elongated Electrode	PR0045
Elongated Tip 100A	PD0025-14
Elongated Tip 130A	PD0025-16
Elongated Tip 150A	PD0025-18
Diversion Pipe	FH0213
Diversion Pipe	FH0212
