Quick Details
-
Working width:
-
36in
-
Working speed:
-
80-130rpm
-
Blade quantity:
-
4
-
Fixed hole distance:
-
4.75in
-
Fuel tank:
-
3.6L
-
Fuel consumption:
-
313g/k wh
-
Packing size:
-
1150*1050*690mm
-
Color:
-
Customer required
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Shandong, China (Mainland)
-
After-sales Service Provided:
-
Online support
-
Operating mode:
-
Walk-behind
-
Working width:
-
36in
-
Working speed:
-
80-130rpm
-
Blade quantity:
-
4
-
Fixed hole distance:
-
4.75in
-
Fuel tank:
-
3.6L
-
Fuel consumption:
-
313g/k wh
-
Packing size:
-
1150*1050*690mm
-
Color:
-
Customer required
-
Certification:
-
ISO

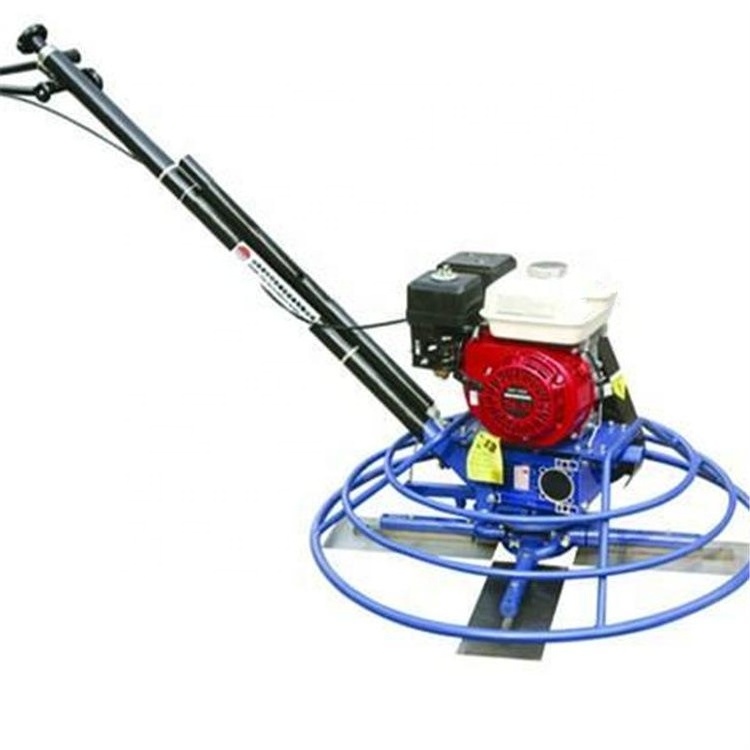

Hand Push Power Trowel/Concrete Finishing Trowel Machine
Introduction and usage of power trowel:
The power trowel, has the main structure of an engine-driven spatula rotor with a spatula on the bottom of the cross in the middle of the rotor. The tilt direction of the spatula is consistent with the rotation direction of the rotor, and the triangle belt of the cutter is rotated by the engine. When you are operating, first hit the fire and hold the control handle. Pushing two forward together is moving forward and pulling back together is to move back. Compared with artificial power trowel, it can improve the efficiency of more than 30 times times.
The power trowel can be widely used in high standard plant, warehouse, parking lot, Plaza, airport and frame building of the concrete surface of the slurry, flattening, wiping light. It is the preferred tool in concrete construction .
JFM100 Walk-behind Concret Trowel Technical Data | |||
Working | Power | 5.5hp/3600rpm | |
Operationg mode | working behind | Fuel tank | 3.6L |
Working Width | 36 inch | Fuel comsumption | 313g/kwh |
Working speed | 80-130rpm | Dimension | |
Blade | Total length | 1850mm | |
Blade quantity | 4 | Total width | 965mm |
Blade size | 350*150mm | Total height | 1090mm |
Fixed hole distance | 4.75 in | Packing size | 1150*1050*690mm |
Engine | Weight | ||
Model | Honda GX160 | Weight | 102kg |
Type | Gasoline,air cooled, single cylinder |
JFM100 | JFM245 | JFM168 | JFM198A | JFM198B | JFM198C |
