(1) Dimple hole
(2) Lip Notch
(3) Web Notch
(4) Service hole
(5) Bolt hole
(6) Swage
(7) Rib
(8) Chamfer

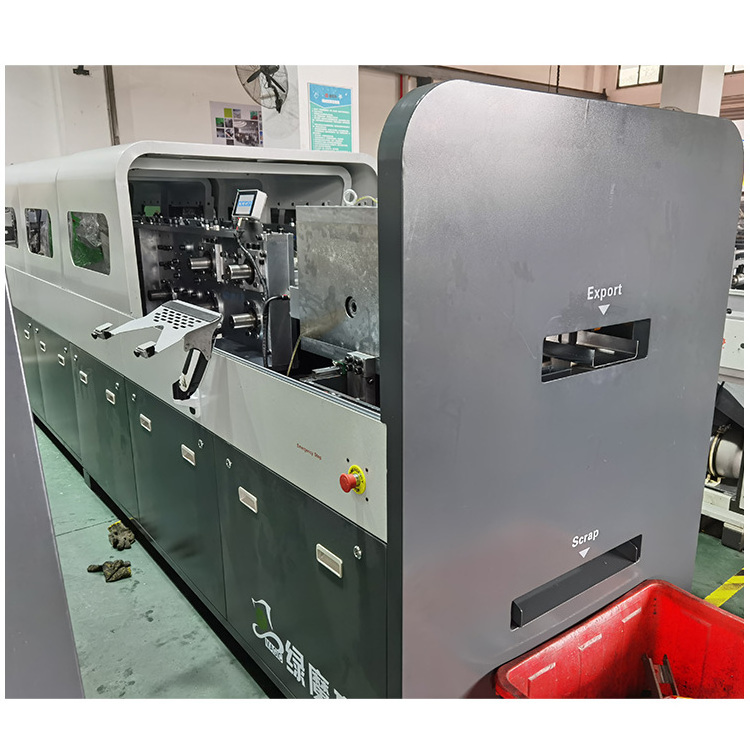

- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380V/50HZ/3Phase
-
Power:
-
18KW
-
Dimension(L*W*H):
-
8000*1200*1100mm
-
Weight:
-
kg
-
Roller material:
-
SKD-11
-
Cutting blade material:
-
SKD-11
-
Shaft material:
-
40Cr
-
Design Software:
-
Vertex Software
-
Cutting type:
-
Hydraulic Cutting
-
Usage:
-
Building Projects
-
Decoiler:
-
Electric Decoiler
-
Forming Steps:
-
12 Steps
Quick Details
-
Production Capacity:
-
30m/min
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
XHH
-
Voltage:
-
380V/50HZ/3Phase
-
Power:
-
18KW
-
Dimension(L*W*H):
-
8000*1200*1100mm
-
Weight:
-
kg
-
Roller material:
-
SKD-11
-
Cutting blade material:
-
SKD-11
-
Shaft material:
-
40Cr
-
Design Software:
-
Vertex Software
-
Cutting type:
-
Hydraulic Cutting
-
Usage:
-
Building Projects
-
Decoiler:
-
Electric Decoiler
-
Forming Steps:
-
12 Steps
Focus on roll forming machine for more than 19 years
1. Factory Lifetime Service
:offer technical support for the entire life of our machines.
2. Customized Profile
:can design the profile according to customer request.
3. One-Year Guarantee Period
:we could supply you the
replacement parts free
of charge for any damaged parts caused by quality problems.
4. Overseas Services Optional
:we can send our technicians to install and train the workers in the clients' factories with extra cost.
Products Description
Fasting
Working Speed:4-5T/8Hours
Higher
Precision with 0.5mm
Post
-Punching System
Lower
Material Waste with 20cm
1.Cost-effective
: Light steel villa machines can greatly reduce labor costs and enhance production efficiency, making the construction process less time-consuming and more cost-effective.
2.High precision
: Advanced light steel villa machines can achieve high precision and high-quality production, ensuring the accuracy and durability of the steel frames and components.
3.Sustainable and eco-friendly
: Light steel villa machines are eco-friendly and sustainable, as they produce less waste and generate less pollution compared to traditional construction methods.
4.Easy to assemble
: Light steel villa machines make the construction process simpler and faster, as the components are prefabricated off-site and then assembled on-site, reducing dependence on skilled labor and saving time.
|
Main Technical Data:
|
|
|
Size
|
C63-89-140
|
|
Dimension
|
8000*1200*1100mm
|
|
Main Servo Motor Power
|
18KW
|
|
Hydraulic Motor
|
11kw
|
|
Forming Steps
|
12Steps
|
|
Forming Speed
|
30m/min(without punching and cutting)
|
|
Voltage
|
380V/50HZ/3PH
|
|
Effective Width for C
|
63mm,89mm,140mm
|
|
Flange Height
|
38mm,41mm
|
|
Lip
|
9-15mm
|
|
Material Thickness
|
0.6-1.2mm for 63/89 profile
0.8-1.5mm for 140 profile |
|
Tolerance for cutting and punching
|
±0.5mm
|
|
Tolerance for forming
|
±1mm
|
|
Control System
|
IPC Computer Controlling System
|
|
Design Software
|
Vertex Software
|
|
Material for All Roller
|
SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers
|
|
Material for Shaft
|
SKD-11
|
|
Material for Puncher
|
SKD-11
|
|
Material for Cutter
|
SKD-11
|
Detail Tools of light guage steel machine：
Save Cost:
1. The length of each start-up waste of the XHH post-punching & cutting machine is about
1M
; most machines on the market are pre-punching & post-cutting (other supplier), their waste material is about
8M
on each start-up;
|
Start-Up/Change Steel Coil
|
8.11-12.13 Kg
|
|
5 Steel Coils/Day
|
40.55-60.65 Kg
|
|
Material Saved/Year
|
12.17-18.2 T
|
2. XHH Machine steel strip width is: 170-174mm width, 10mm less than the most other machines in the market. For a 200sqm house, the total frame is around 7000m,can save 439.6-659.4kg material;
|
Material Thickness
|
0.8mm
|
1.0mm
|
1.2mm
|
|
Material Saved Per House
|
439.6kg
|
549.5kg
|
659.4kg
|
Post Punching Mould
XHH LGS Machine all with post punching and post cutting, which make more high precision performance on position & dimension
IPC Computer Controlling System
Lenovo Laptop IPC Computer Controlling System：shows the production online. Recognized the production file automatically
Main Forming System
SKD-11 steel with heat treatment, plate hard chrome on the surface of rollers
Seamless End Cut Connection
The two ends of the vertical frame can seamlessly connect to the web of the bottom and top horizontal frames，which makes the house safer.
|
Main Accessories:
|
|
1) Main Forming Machine
|
|
2) 5 Tons Hydraulic Uncoiler
|
|
3) Servo Motor System
|
|
4) IPC Computer Controlling System (Lenovo Laptop)
|
|
5) Production Software (1set)
|
|
6) Design Software:Vertex BD
permanent license,next annual version free update
|
|
7) Hydraulic Automatic Punching Device
(Web/Lip Notch,Swage,Service Hole,Chamfer,Dimple,Bolt Hole) |
|
8) Hydraulic Post-cutting Device (Material:SKD-11)
|
|
9) Automatic Printing Device
|
|
10) Run Out Table (4m)
|
|
11) Operation Manual
|
Successful Project
Our products are mainly covered the railway station,city curtain wall,stadium,etc.field and have widely used in national key construction project. High quality products, good service to our products not only sell well all over China,and exported to Southeast Asia,Europe, Africa and Australia more than 40 countries and regions.
