Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZY
-
Wire Gauge:
-
4mm
-
Product name:
-
Gabion Basket
-
Surface treatment:
-
Hot Dipped Galvanized
-
Welding type:
-
Galvanized Before(after) Welding
-
Length:
-
1m
-
Usage:
-
Flood Control Retaining Wall
-
Propety:
-
Corrosion-resisting
-
Color:
-
Silver
-
Width:
-
0.5-2m
-
Wire diameter:
-
3.0mm~5.0mm
Quick Details
-
Material:
-
Low-Carbon Iron Wire
-
Type:
-
Welded Mesh
-
Application:
-
Gabions
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
ZY
-
Wire Gauge:
-
4mm
-
Product name:
-
Gabion Basket
-
Surface treatment:
-
Hot Dipped Galvanized
-
Welding type:
-
Galvanized Before(after) Welding
-
Length:
-
1m
-
Usage:
-
Flood Control Retaining Wall
-
Propety:
-
Corrosion-resisting
-
Color:
-
Silver
-
Width:
-
0.5-2m
-
Wire diameter:
-
3.0mm~5.0mm
Product Description

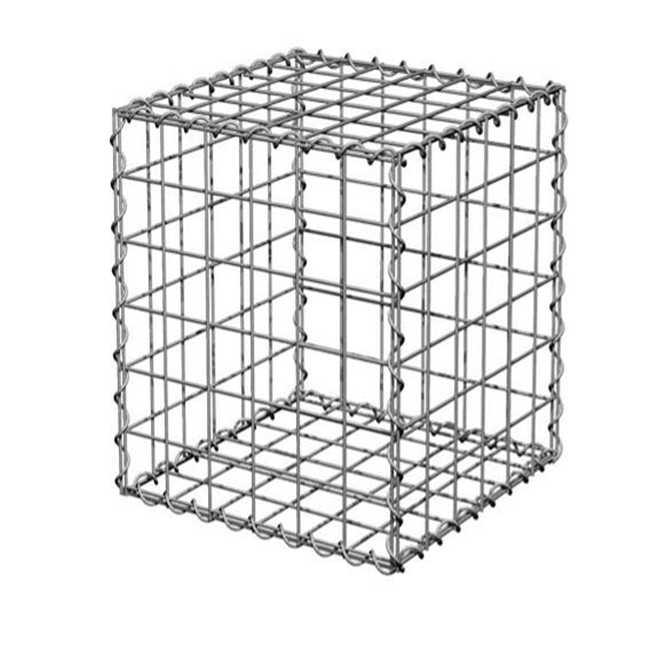

WELDED GABIONS
T/S:300-1900N/MM2.
Coating:Black,Electro Galvanized,Hot Dipped Galvanized,Galfan,Pvc Coated,etc.
Wire Diameter:3mm,4.5mm,5.2mm,6mm,etc.
Mesh Size:75x75mm,etc.
Width:0.3m-2m,Special Size is available.
Length:0.3m-2m,Special Size is available.
Height:0.3m-2m,Special Size is available.
Tie Wire:3mm or according to customer’s demand.
Lead Time:3-15days.
Production Capacity:1 container per day.
Advantage:Anti rust material,gabion will be without rust for years.
Specification
|
Welded Gabions
|
|
|
|
|
||||
|
Nominal Box sizes(M)
|
No.of diaphragms(NO)
|
Capacity per box(M3)
|
Standard mesh sizes(MM)
|
Standard wire diameter(MM)
|
||||
|
1.0×1.0×0.5
|
Nil
|
0.50
|
50×75
75×75 100×50 100×100 |
Heavily Galvanised or Alu-zinc coated wire 2.0,3.0,4.0,5.0
OR PVC coated on Heavily Galvanised or Alu-zinc coated wire 2.0/2.5,3.0/3.5,3.8/4.3 |
||||
|
1.0×1.0×1.0
|
Nil
|
1.00
|
|
|
||||
|
1.5×1.0×0.5
|
Nil
|
0.75
|
|
|
||||
|
1.5×1.0×1.0
|
Nil
|
1.50
|
|
|
||||
|
2.0×1.0×0.5
|
1
|
1.00
|
|
|
||||
|
2.0×1.0×1.0
|
1
|
2.00
|
|
|
||||
|
3.0×1.0×0.5
|
2
|
1.50
|
|
|
||||
|
3.0×1.0×1.0
|
2
|
3.00
|
|
|
||||
|
4.0×1.0×0.5
|
3
|
2.00
|
|
|
||||
|
4.0×1.0×1.0
|
3
|
4.00
|
|
|
||||
Feature
* Durable structure with greater strength.
* Better shape control.
* Utmost corrosion resistance.
* Easy to assemble.
* Aesthetically appearance.
* Better shape control.
* Utmost corrosion resistance.
* Easy to assemble.
* Aesthetically appearance.
Packing & Delivery
Packing: Each set is flat packed and then on pallet.
Each set packed into paper carton
