Quick Details
-
Brand Name:
-
GN
-
Model Number:
-
CX-FS-FR11
-
Operating Temperature:
-
-20~80℃
-
Product name:
-
water flow switch
-
Set Range:
-
1...150cm/s( water),3...300cm/s(oil),20...2000cm/s(air)
-
Power Supply:
-
24V±20%DC or 230V±15%AC
-
Switching Current:
-
Max.400mA(PNP or NPN type ), Max.4A( Relay type )
-
Protection Class:
-
IP67
-
Connection:
-
M12 connector /2m cable (option)
-
Material:
-
Probe is stainless steel . Housing is PBT
-
Storage temperature:
-
-20~100℃
-
Certification:
-
CE
Quick Details
-
Media Type:
-
Liquid
-
Flow Rate:
-
...150cm/s( water)
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GN
-
Model Number:
-
CX-FS-FR11
-
Operating Temperature:
-
-20~80℃
-
Product name:
-
water flow switch
-
Set Range:
-
1...150cm/s( water),3...300cm/s(oil),20...2000cm/s(air)
-
Power Supply:
-
24V±20%DC or 230V±15%AC
-
Switching Current:
-
Max.400mA(PNP or NPN type ), Max.4A( Relay type )
-
Protection Class:
-
IP67
-
Connection:
-
M12 connector /2m cable (option)
-
Material:
-
Probe is stainless steel . Housing is PBT
-
Storage temperature:
-
-20~100℃
-
Certification:
-
CE

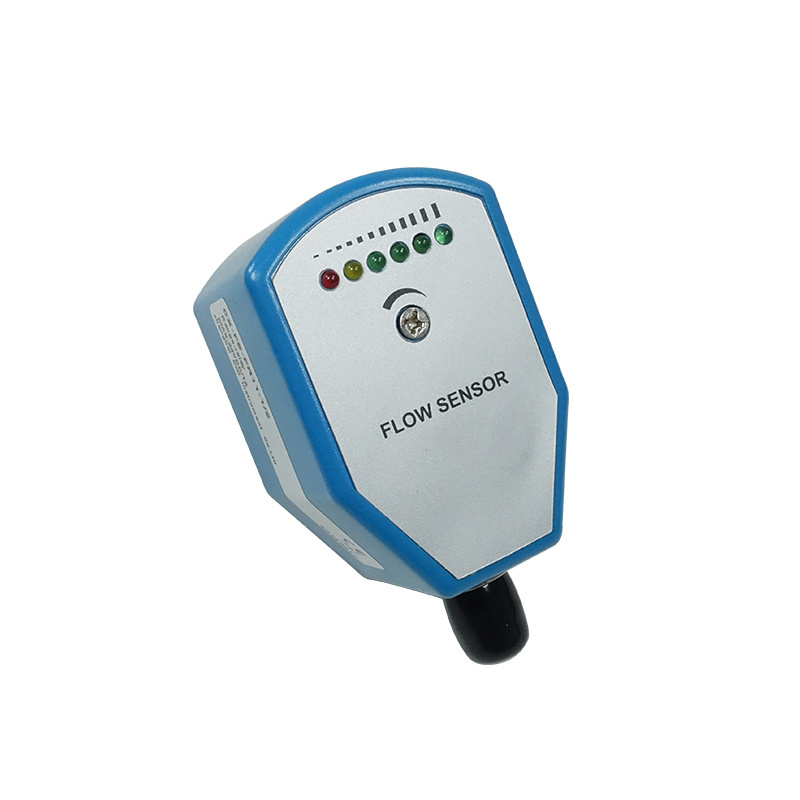

Electronic Water Pump Flow Switch
A.[Features of water flow switch]
Widely Application of electronic water pump flow switch
Suitable for various fluid ,concise and direct indicator;
High Quality and longer working life
The water flow switch with stainless steel material sensor and high quality chips;
Superior performance of water flow switch
The water flow switch with lower pressure loss,various reply type and switch value can be adjusted;
Precise Design
The flow switch with much small diameter ,no movable parts and easy installation.
B.[Parameters]
| Water Flow Switch---Basic Production Information | |
| Set Range | 1…150cm/s( water),3…300cm/s(oil),20…2000cm/s(air) |
| Output | PNP, NPN, Relay ,4-20mA, NO+NC (SPDT) |
| Power Supply | 24V±20%DC or 230V±15%AC |
| Switching Current | Max.400mA(PNP or NPN type ), Max.4A( Relay type ) |
| Unload Current | Max.80mA |
| Flow Indicator | LED (6) |
| Set Type | potentiometer set |
| Proof Pressure Range | 100bar |
| Temperature Gradient | 4℃/s |
| Response Time | 1--13s,standard is 2s |
| Initialization time | 8s |
| Electrical protection | reversed-phase , short circuit ,overload protection |
| Protection Class | IP67 |
| Medium temperature | -20~80℃ |
| Enviroment temperature | -20~80℃ |
| Storage temperature | -20~100℃ |
| Connection | M12 connector /2m cable (option) |
| Material | Probe is stainless steel . Housing is PBT . |
C.[Installation]
When mounted vertically , it should install on the tube which flow direction is from the bottom to the top . When mounted horizontally , the probe should avoid air and sediment .
D.[Connection]
