Quick Details
-
Model Number:
-
T701MT
-
Max. Current:
-
20A
-
Mechanical Life:
-
50000
-
Product name:
-

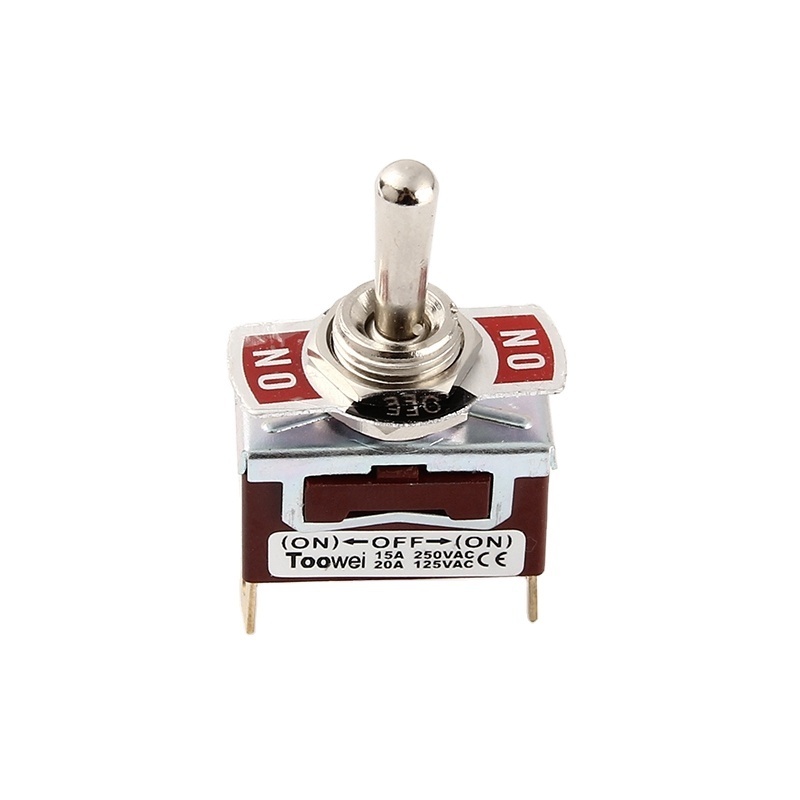

Toggle Switch
-
MOQ:
-
100
-
payment method:
-
T/T, PayPal, Western Union
-
Supply Capacity:
-
100000 pcs/month
-
Rated value:
-
20A 250V 15A 125V
-
Terminal form:
-
Quick connect terminal
-
Installation size:
-
12MM
-
Mechanical life:
-
50000
-
Certification:
-
CE, RoHS, Reach, FCC, IP67
Quick Details
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Toowei
-
Model Number:
-
T701MT
-
Max. Current:
-
20A
-
Mechanical Life:
-
50000
-
Product name:
-
Toggle Switch
-
MOQ:
-
100
-
payment method:
-
T/T, PayPal, Western Union
-
Supply Capacity:
-
100000 pcs/month
-
Rated value:
-
20A 250V 15A 125V
-
Terminal form:
-
Quick connect terminal
-
Installation size:
-
12MM
-
Mechanical life:
-
50000
-
Certification:
-
CE, RoHS, Reach, FCC, IP67
Products Description
|
product name
|
toggle switch
|
|
model
|
T701MT
|
|
country of origin
|
China
|
|
Minimum order quantity
|
100
|
|
payment method
|
T/T, PayPal, Western Union
|
|
Logistics model
|
Express delivery, By sea, Land transportation, air transport
|
|
Sea port
|
shanghai
|
|
Supply Capacity
|
100000 pcs/month
|
|
Packing
|
Carton
|
|
Rated value
|
20A 250V 15A 125V
|
|
Terminal form
|
Quick connect terminal
|
|
Installation size
|
12MM
|
|
Mechanical life
|
50000
|
|
Poles
|
SPDT
|
Details Images
Product parameter
1. Rating Value: 15A 250VAC/20A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage: 1500VAC 50/60hz
Leakage current: 5mA
5. Insulation resistance ≥100mΩ
6. Electrical life: 20,000 times
Mechanical life: 50,000 times
7. Humidity: below 85% RH
8. Terminal form: Quick connect terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
9. Protection degree: IP67
